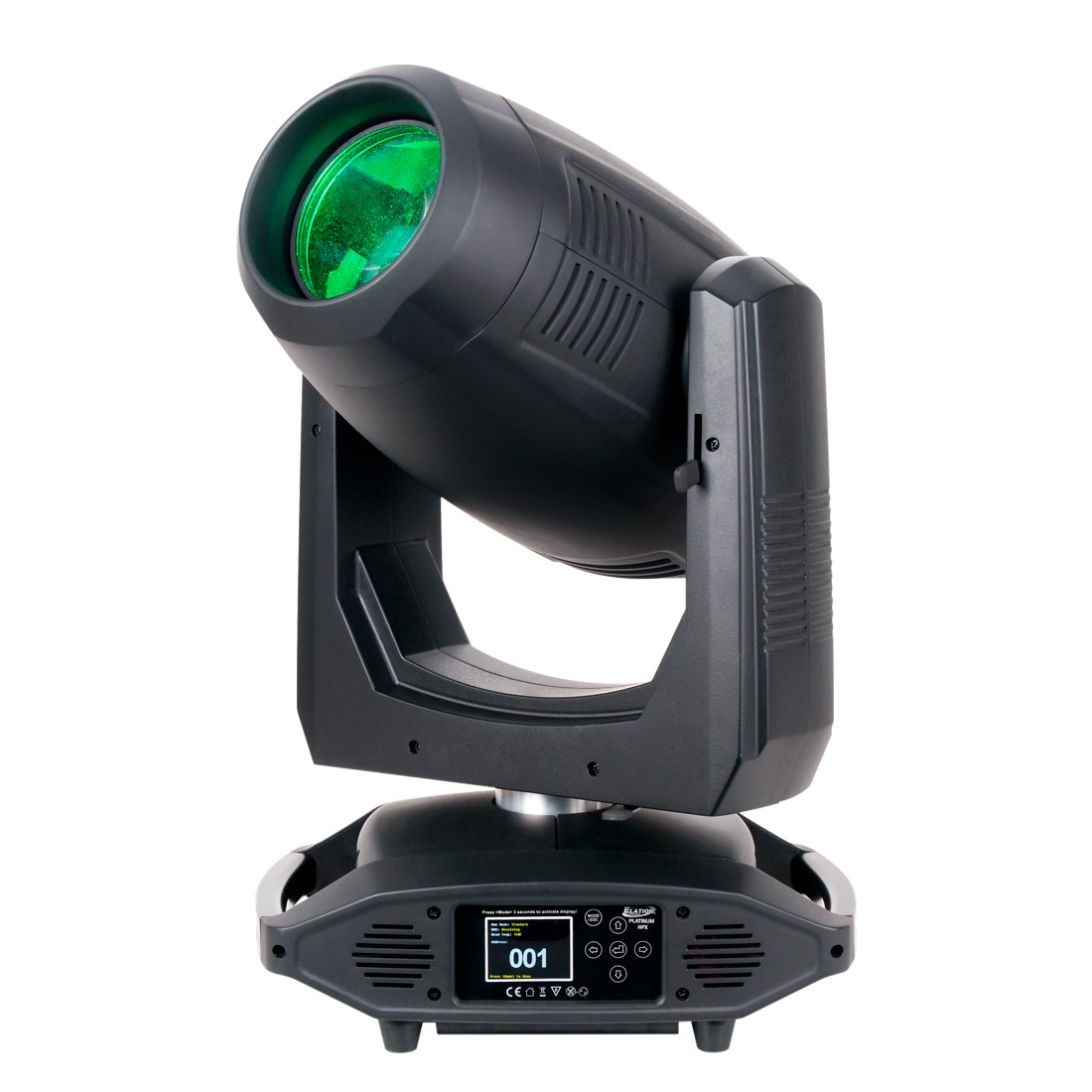

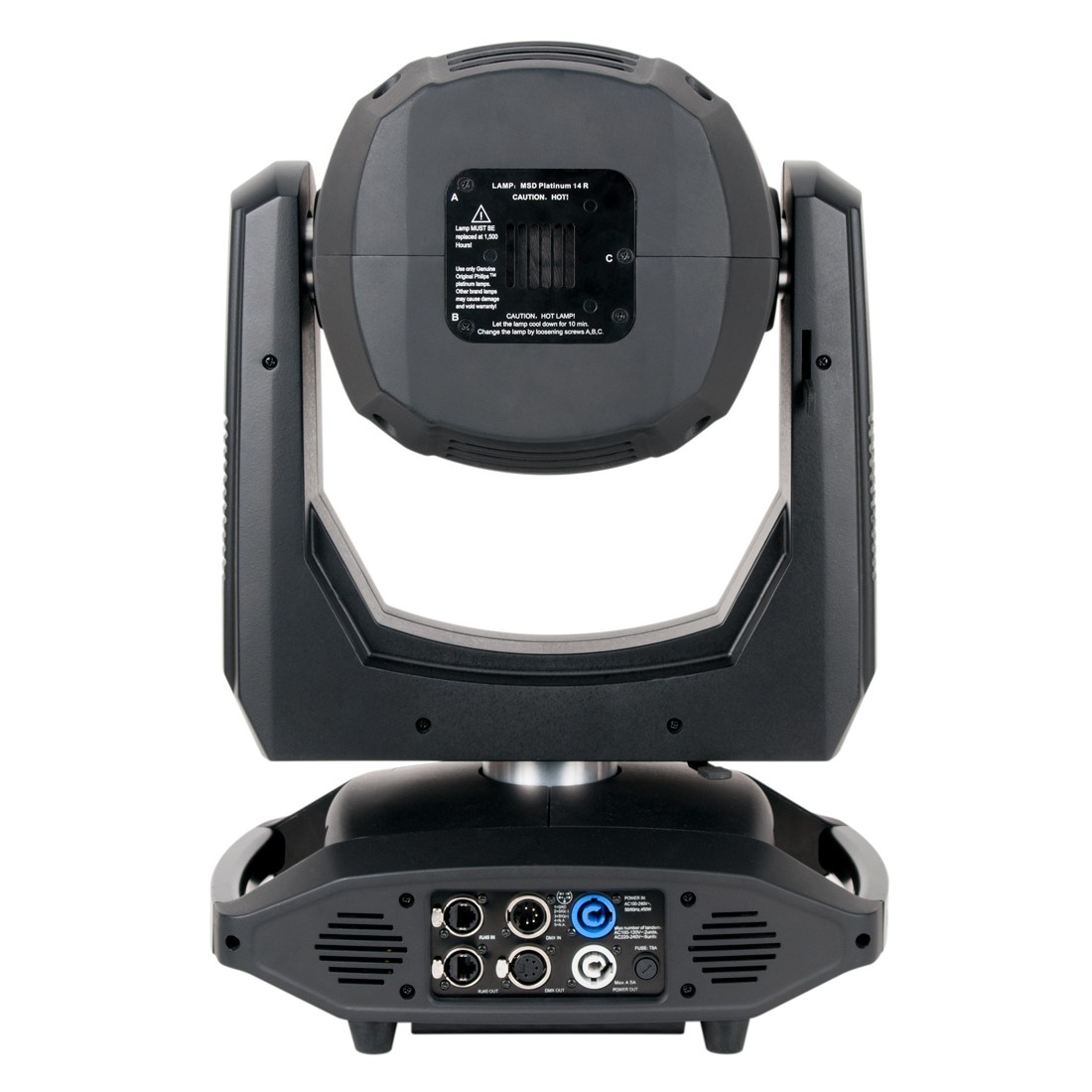

ELATION Platinum HFX 280W Platinum Hybr. 14R Demoteil
2.181,66 €*
Lieferzeit: 1 Tag
Produktinformationen "ELATION Platinum HFX 280W Platinum Hybr. 14R Demoteil"
Elation Platinum HFX 280W Platinum Hybrid 14R
FEATURES
Hybrid Beam, Spot and Wash 3-in-1 Luminaire
Innovative Auto Focus Function
2.3° - 15° Beam, 3° - 22° Spot and 10° - 34° Wash Zoom
CTO and CTB Color Correction
6-Facet Linear plus 8-Facet Rotating and 10-Facet Static Prisms
Pan/Tilt Lock
Art-NET and sACN (DMX over Ethernet) Support
RDM - Remote Device Management
SOURCE
PhilipsT MSD Platinum 14R 280W Lamp
12,000 Total Lumens, 7,800K, 80CRI
2,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
125,800 LUX 11,687 FC @ 49.2' (15m) (Beam)
13,375 LUX 1,243 FC @ 49.2' (15m) (Spot)
11,500 LUX 1,068 FC @ 16.4' (5m) (Wash)
EFFECTS
Prism Overlay Effect
6-Facet Linear plus 8-Facet Rotating and 10-Facet Static Prisms
Wash Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
13 Dichroic Colors Including UV, CTO, CTB, Quad Color (RGBY) Filter + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD: 13.8mm / ID: 9.0mm
(12) Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 26)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
5pin DMX In/Out
RJ45 etherCON In/Out (Art-NET and sACN)
powerCON Power In/Out
SIZE / WEIGHT
Length: 16.0" (406mm)
Width: 11.5" (292mm)
Vertical Height: 27.0" (686mm)
Weight: 50.0 lbs. (22.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1521000257 Touring Case 2x Platinum HFX
1521000258 PRO Case 2x Platinum HFX
*Lamp Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
