KLARK TEKNIK DN9652 Dual Network Bridge Format Converter
Produktinformationen "KLARK TEKNIK DN9652 Dual Network Bridge Format Converter"
Dual Network Bridge Format Converter with up to 64 Bidirectional-Channels and Asynchronous Sample Rate Conversion
- Dual network bridge format converter with up to 64 bidirectional channels
- Compatible with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI and KT-USB network modules
- Bidirectional Asynchronous Sample Rate Conversion on every channel with bypass facility
- Bidirectional output audio clock inhibit feature for redundant network systems
- 24 bit audio operation with 96 kHz and 48 kHz sample rates
- Video synchronisation in standard and high definition formats
- Internal "AES Grade 1" temperature-compensated word clock (1 ppm)
- Internal web server allows browser-based configuration via Ethernet control port

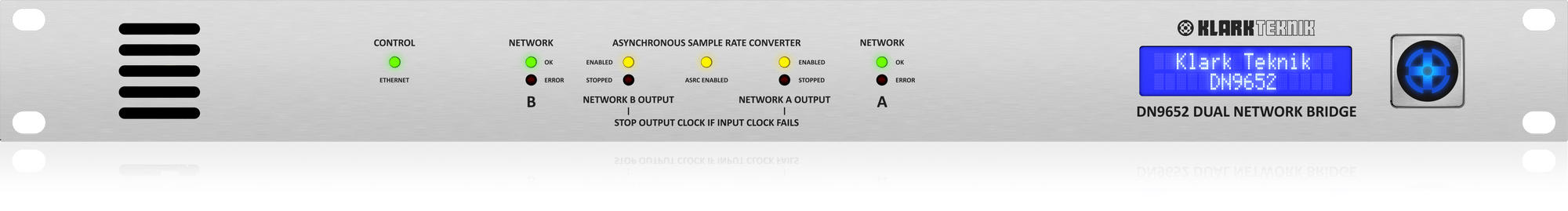

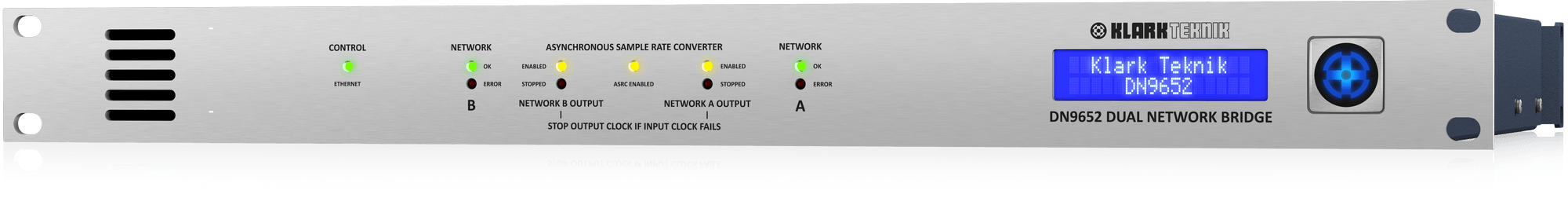

- Status indicator LEDs and LCD display on front panel
- Features Neutrik etherCON * network ports
- Rugged 1U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
