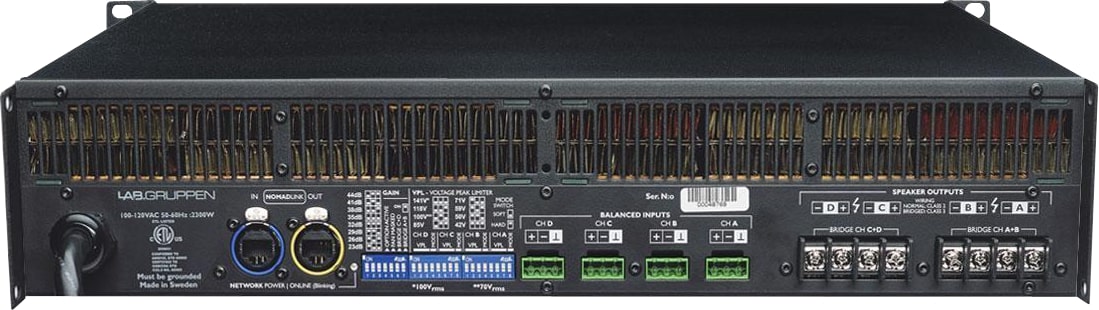

LAB GRUPPEN C48:4 Verstärker 4x1200W/4 2HE
1.664,81 €*
% 2.380,00 €* 30.05% gespart
Versandkostenfrei
Produktnummer:
258725
Produktinformationen "LAB GRUPPEN C48:4 Verstärker 4x1200W/4 2HE"
Specification
- Number of amplifier channels 4
- Peak total output all channels driven 4800 W
- Peak output voltage per channel 141 V
- Max output current per channel 17.5 Arms
- Max output power (all channels driven) 16 ohms 625 W / 8 ohms 1000 W / 4 ohms 1200 W / 2 ohms 600 W
- Hi-Z per ch. (all ch.’s driven): 70 Vrms / 100 V peak 1100 W
- Max output power bridged 16 ohms 2000 W / 8 ohms 2400 W / 4 ohms 1200 W / 2 ohms Not recommended 1
- Bridged per ch.: 140 Vrms / 200 V peak 1800 W
- Performance THD 20 Hz - 20 kHz at 1 W <0.1%
- THD at 1 kHz and 1 dB below clipping <0.05%
- Signal to Noise Ratio >112 dBA
- Channel separation (Crosstalk) at 1 kHz >70 dB
- Frequency response (1 W into 8 ohms) + 0 / -3 dB 6.8 Hz - 34 kHz
- Input impedance 20 kOhm
- Common Mode Rejection (CMR) >50 dB, 20 Hz - 20 kHz
- Output impedance @ 100 Hz 30 mOhm
- Gain, Sensitivity and Limiters
VPL, selectable per ch 2 141, 118, 100, 85, 71, 59, 50, 42 V - VPL, when bridged 2 3 282, 236, 200, 170, 142, 118, 100, 84 V
- Voltage Peak Limiter mode (per ch.) Hard / Soft
- Amplifier gain selectable (all channels) – rear-panel switches 3 23, 26, 29, 32, 35, 38, 41, 44 dB
- Default gain 35 dB
- Level adjustment (per channel) Front-panel potentiometer, 21 position detented from -inf to
- Input connectors (per ch.) 3-pin Phoenix, electronically balanced
- Output connectors (per ch.) Barrier strip 2-pole screw terminals
- Output bridge mode A+B and/or C+D, inputs A and C are input source
- NomadLink network On board, 2 x RJ45 connectors IN and OUT
- Intelligent fans (on/off) Yes, depending on presence of output signal
- Power Individual switches on front panel
- Cooling Two fans, front-rear airflow, temperature controlled speed
- Front-panel user interface NomadLink Network; Power Average Limiter (PAL)5; Power on
- Per channel Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute
- Operating voltage, 230 V / 115 V nominal 130-265 V / 65 -135 V 4
- Minimum power-up voltage, 230 V / 115 V 171 V / 85 V
- Power Average Limiter (PAL) 5 Yes
- Power Factor Correction (PFC) No
- Soft-start / Inrush Current Draw Yes / max. 5 A0
- Mains connector 230 V CE: 16 A, CEE7; 115 V ETL: 20 A / NEMA 5-20P; C16:4: 15A/NEMA 5-15P
- Dimensions W: 483 mm (19”), H: 88 mm (2 U), D: 343 mm (13.5”)
- Weight 12 kg (26.4 lbs)
- Finish Black painted steel chassis with gray painted steel front
| Verstärkerart: | PA Verstärker ohne DSP |
|---|---|
| Anzahl Kanäle: | 4 |
| Leistung an 2 Ohm in W / Kanal: | 600 |
| Leistung an 4 Ohm in W / Kanal: | 1200 |
| Leistung an 8 Ohm in W / Kanal: | 1000 |
| Leistung an 16 Ohm in W / Kanal: | 625 |
| 19" Einbauhöhe in HE: | 2 |
| Inputsignale: | Analog Input |
| Gewicht (kg): | 12 |
| Farbe: | Silber |
