LAKE LMX48 Digitales Lautsprecher Management System DANTE, 1HE,

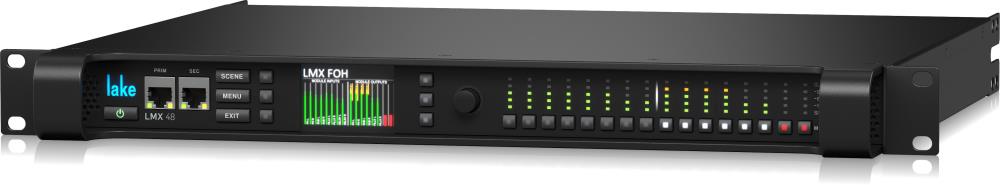

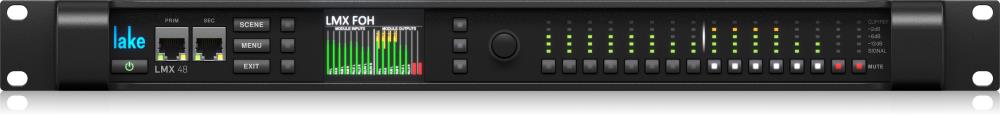

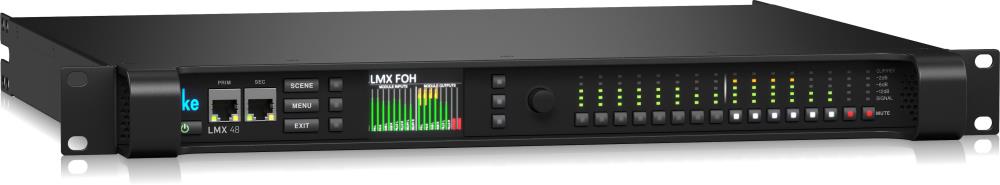

Front-Panel User Interface
Display
Daylight readable full color IPS (320 x 210)
Fault/Warning detailed description on display
Menu
Intuitive interface with ability to recall Scene- and Frame Preset, Frame Config, see IP address, Mains status
Meters and Mute buttons
16x LED meters and clip indicators, with individual mute of inputs or outputs with dedicated buttons
Lake features
Module configuration
8x MESA, 4x Contour or 2x Contour/4x MESA modules
Processing channels
12x in Contour, 8x in MESA, 10x in Contour/MESA
Block program
Mesa, XP, Linear phase, Classic crossovers and Auxiliary
Input routers
16 input routers with 4 priorities in each, seamless fallback to lower prioritizes
Module Input mixer
16 ch. for Contour-, 16 ch. for MESA-modules. Mix any ratio between all input routers.
Link ability
Yes, via 24 channels of AES50
Input Processing

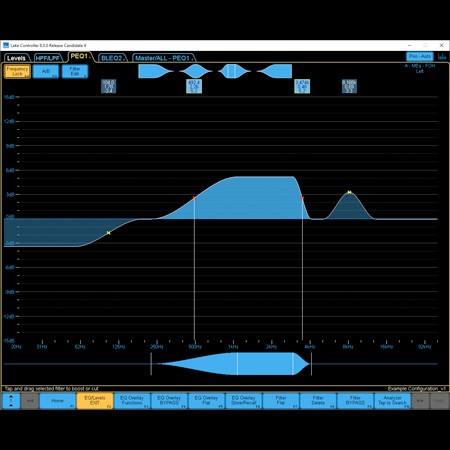

Parametric EQ with MESA and Ideal Graphic equalizers, both utilizing Raised Cosine algorithms
Output Processing
Crossovers with up to 48dB/oct. Parametric EQ, shelving and allpass filters, FIR
Features
Delay, Mute, Phase, Gain etc.
Limiters
3 band Multiband Limiter, LimiterMax with Peak and RMS limiter. Configurable MaxRMSLevel, MaxRMSCorner, MaxRMSAttack, MaxRMSRelease and MaxPeakLevel,
SuperModule compatible
No
Audio Performance
Conversion Resolution
24-bit
Internal Sample Rate
96 kHz
Internal Floating Path
32-bit floating point
Product Propagation Delay
Best case (AES synchronous 96 kHz to AES synchronous 96 kHz via DSP) 0.872 ms
Analog (Analog in to Analog out via DSP) 1.036 ms
Pass thru (Analog in to AES synchronous 96 kHz bypassing DSP 0.143 ms
Maximum Available User Delay
2 seconds from any input to any output
Analog
Inputs
4x inputs with Iso-Float™ ground isolation configurable (connectors shared with AES3 inputs)
Outputs
8x outputs (connectors shared with AES3 Outputs)
Frequency Response, analog-to-digital
+/-0.05 dB, 20 Hz to 20 kHz
Frequency Response, digital-to-analog
+/-0.2 dB, 20 Hz to 20 kHz
THD+Noise, Inputs
0.0015% typical at 1 kHz
THD+Noise, Outputs
0.0008% typical at 1 kHz
Dynamic Range, Inputs
126 dB
Dynamic Range, Outputs
116 dB
Input Impedance
20 kOhm balanced, 10 kOhm unbalanced
Output Impedance
50 Ohm
Maximum Input level
+26 dBu
Input Sensitivity Settings for Digital Full-Scale
+21 dBu
Maximum Output level
+21 dBu
Crosstalk, inputs
-108 dB, 20 Hz to 20 kHz
Crosstalk, outputs
-98 dB, 20 Hz to 20 kHz
Common Mode Rejection Ratio (CMRR)
>70 dB, 20 Hz to 20 kHz
AES3/EBU with Sample Rate Converts available
Inputs and Outputs
4x inputs, 8x outputs (shared with Analog)
ASRC
Yes, high quality low latency available per digital input
Supporting Sample Rates
44.1 kHz, 48 kHz, 88.1 kHz, 96 kHz, 176.4 kHz, 192 kHz (I/O individually selected)
Supported Resolutions
Up to 24-bit
THD+Noise (limits)
-135 dB at 96kHz and -125 dB at 44.1 kHz sample rate
THD+Noise (typical)
-145 dB at 96kHz and -138 dB at 44.1 kHz sample rate
Dynamic Range
Base48 -144 dBFS, Base44 -142 dBFS
Internal clock
Oscillator type
High quality VCXO clock
Synchronization
Can synchronize to any digital input and output any input clock on any output
Synchronous / Asynchronous
Yes / Yes
Base48
x3
Base44
x2
Clock accuracy
< ± 7 ppm
Pull up/down
±80ppm from any sample rate
Word clock
Synchronize internal clock, and output any clock
Dante (Audio Network)
Topology
Brooklyn 3
Inputs (shared with AES 67)
8x
Outputs (shared with AES 67)
8x
Supported Sample Rates
48 kHz, 96 kHz
Casting
Unicast or Multicast
Support Redundant paths
Yes, Dante Dual Redundancy (Glitch-free Dante audio Redundancy using dual Ethernet networks)
Receiver latency
0.25 ms, 0.5 ms, 1 ms, 2 ms, 5 ms
Network
4x 1000 Base-T / 100 Base-Tx (shared with AES 67)
AES67 (Audio Network)
Topology
Brooklyn 3
Inputs (shared with Dante)
8x
Outputs (shared with Dante)
8x
Supported Sample Rates
48 kHz
Casting
Multicast
Support Redundant paths
No
Receiver latency
1 ms
Network
4x 1000 Base-T / 100 Base-Tx (shared with AES 67)
AES50 (Audio Network)
Interfaces
2x AES50 interfaces
Inputs
24x channels can be individually selected out of up to 96 channels
Outputs
24x channels
Supported Sample Rates
48 kHz, 96 kHz
Support Redundant paths
Yes, via Mirror mode using both AES50 interfaces
GPI
Inputs
4x General Purpose Inputs (GPI) supporting external contact closure
Software configurable input control
Standby state, Mute state, Dual preset recall, Scene preset recall, Force input router prio
Device presets
Frame presets
100
Scene presets
10
Power supply features
Mains connectors
2x Locking IEC
Universal
Yes
Seamless continued operations if mains lost on one PSU
Yes
Power requirements
Nominal Voltage
100-240VAC
Operating Voltage
70-265 VAC
Power consumption
75 W maximum

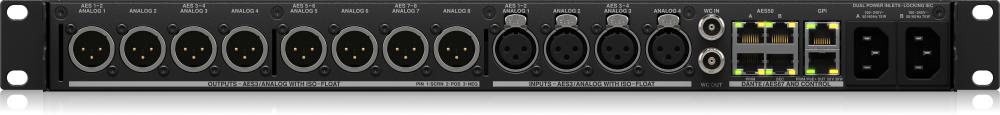

Back panel Interface
Analog inputs and outputs
4x8 where Inputs and Outputs can be configured for either Analog or AES3 operation
AES3 inputs and outputs
2x4 where Inputs and Outputs can be configured for either Analog or AES3 operation for 4x8 channels of AES3
Ethernet (Dante, AES67 and Control)
Auto 100/1000, Auto uplink, 3x RJ45 connectors
Ethernet with PoE+ (Control only)
Auto 100/1000, Auto uplink, 1x RJ45 connectors with PoE+ (802.3at) out
AES50
2x RJ45 connectors
GPI
GPI via 1x RJ45 connectors
Word Clock Input and output
2x female BNC with selectable termination on input
Power
2x Detachable Locking 3-pin IEC
Control and monitoring interface
Ethernet for Lake Controller software, or DLM (the 3rd Party Protocol)
Cooling
2x fans, front-to-rear airflow
Dimensions (W/H/D)
483 mm (19"), 44 mm (1 U), 405 mm (16")
Weight
5.1 kg (11.2 lbs.)
Finish
Black painted steel chassis with aluminum handles
Approvals
CE, ETL (ANSI/UL 62368-1 & CSA C22.2#62368-1), FCC, ICES, PSE, UKCA, RCM
Warranty
3 years, components and factory workmanship; see full warranty statement.
-
