LYNX pro-audio GXR-12 Full Range 1 x 12" 1400W, Class D, DSP alktiv, self powered Floor Monitor
Produktinformationen "LYNX pro-audio GXR-12 Full Range 1 x 12" 1400W, Class D, DSP alktiv, self powered Floor Monitor"
The GXR-12 enclosure is a multipurpose full-range self-powered that stands out for its high performance. It does not need to carry an external amplification rack and is ideal for a wide variety of applications, both in fixed installations and portable applications since its trapezoidal design allows it to function even as a stage monitor.
Consists of a 12”(2.5”voice coil) transducer with a 1”compression driver with a polyimide diaphragm mounted on a 90ºH x 40ºV precise directivity horn. DSP (FIR Filters) controlled with 1400W amplification, 127dB SPL. This system can be controlled online in real time.
A complete range of accessories facilitate its use on tripod, wall hanging, ceiling, satellite mode, etc. To facilitate its transport, a robust flight case is available where two enclosures can be found next to its wiring. There is also a practical nylon case available.
Components | LF: 12″ 2,5″ voice coil, Malt Cross Cooling System |
HF: 1″ Exit compression Driver , 1,75″ aluminium voice coil | |
| Frequency Range | 60 Hz – 20 KHz (-10dB) |
Frequency Response | 66 Hz – 18 KHz (± 3dB) |
| Max SPL | 127 dB |
Coverage Angle | 90º x 40º constant directivity horn. Rotatable |
| Power | 1400W Class D with switching power supply & PFC |
LF Amplifier | 1 x 800 W |
| HF Amplifier | 1 x 600 W |
Processing | Internal Lynx Processor DSPB-FL. |
| Control | User control interface with 2.8″ IPS screen |
Control Connections | Ethernet (optional) / USB (DSP programming) |
Input | Analog / AES3 (optional) |
| AC Power | 90 – 264V. 50/60 Hz with PFC |
AC Connections | 16A Neutrik powerCon TRUE1 TOP with looping output |
| Finish | Polyurea coating, black colour |
Material | 15 mm premium birch plywood |

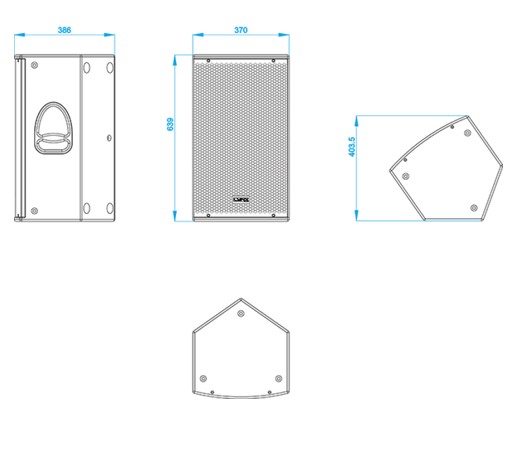

| Dimensions | 639 x 370 x 386 mm (H x W x D) |
Weight | 23.5 kg (51.7 lbs) |
