30 Produkte
30 Produkte
LYNX pro audio RX-8 aktiv Lautsprecher 1 x 8", 90ºx60º, 600W Class D, DSP Bluetooth
- LF: 8”, 2” voice coil - HF: 1”, compression Driver- 65 Hz – 20 kHz- 118 dB 124 dB Peak- Power RMS power of 28-0W and a peak 600W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 280W RMS / 600W peak- 230V ~ / 50Hz mains power supply- Weight 12 Kg - Dimensions 435 x 245 x 295 mm (H x W x D)
Lynx JN6BT 6"/1" 80W/16 100V IP46 schwarz incl Wandhalter
Wetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. Montagebügel60Hz-18KHz55Hz-20KHz1×6"(150mm) / 1.5"voice coil LF80W RMS, 320W peakTransformer taps 100 V: 20W / 40W / 80W Sensitivity89dB 1W/1 m110dB / 116 dB peak16 ohm nominal90°×60°2.4kHz passivecovered barrier strip terminals5.5 kgoptional: - U Bracket with stainless steelscrews, silicone washers and safetycable- Plastic cover with gland connector andeuroblock input connector
Lynx JN6WT 6"/1" 80W/16 100V IP46 weiß incl Wandhalter
Lynx JUNO JN6WT 6"/1,5"Voice coil 40W/100V white TransformatorWeather-resistant, two-way full range loudspeakers60Hz-18KHz55Hz-20KHz1×6"(150mm) / 1.5"voice coil LF80W RMS, 320W peakTransformer taps 100 V: 20W / 40W / 80W Sensitivity89dB 1W/1 m110dB / 116 dB peak16 ohm nominal90°×60°2.4kHz passivecovered barrier strip terminals5.5 kgoptional: - U Bracket with stainless steelscrews, silicone washers and safetycable- Plastic cover with gland connector andeuroblock input connector
Lynx JN8BT 8"/1" 150W/16 100BV IP46 schwarz incl Wandhalter
Lynx JN8B 8"/1" 150W/100V IP46 Transformer black/schwarzWetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. MontagebügelFrequency response(-3dB) 60Hz-18KHzFrequency response(-10dB) 55Hz-20KHzDrivers 1×8"(200mm) / 2"voice coil LF1×1"(25mm) / 1"voice coil HFRated power 150W RMS, 600W peakSensitivity 94dB 1w/1 mMaximum SPL 116dB / 122 dB peakImpedance 16 ohm nominal Transformer taps 100 V: 20W / 40W / 80W SensitivityDispersion(-6db) 90°×50°Crossover frequencies 2.3kHz passiveInput connectors covered barrier strip terminalsPackage size 370×310×525mmNet weight 10kg/pcGross weight 12kg/pc
Lynx JN8WT 8"/1" 150W/16 100V IP46 weiß incl Wandhalter
Wetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. MontagebügelFrequency response(-3dB) 60Hz-18KHzFrequency response(-10dB) 55Hz-20KHzDrivers 1×8"(200mm) / 2"voice coil LF1×1"(25mm) / 1"voice coil HFRated power 150W RMS, 600W peakSensitivity 94dB 1w/1 mMaximum SPL 116dB / 122 dB peakImpedance 16 ohm nominal Transformer taps 100 V: 20W / 40W / 80W SensitivityDispersion(-6db) 90°×50°Crossover frequencies 2.3kHz passiveInput connectors covered barrier strip terminalsPackage size 370×310×525mmNet weight 10kg/pcGross weight 12kg/pc
LYNX pro audio BS-5
Der BS-5 ist ein vielseitiger, ultrakompakter und leichter Zweiwege-Passivlautsprecher für leistungsstarke Hintergrundbeschallung. Er verfügt über einen 5-Zoll-Tief-/Mitteltöner mit Gummisicke und einen 1-Zoll-Hochtöner mit Aluminiumkalotte. Hergestellt aus 9/15 mm starkem hochwertigem Birkensperrholz und mit strapazierfähiger Polyharnstofffarbe beschichtet, dadurch ist dieser Lautsprecher besonders langlebig. Für eine verbesserte Tieftonverstärkung empfehlen wir die Kombination mit den Subwoofern SUB-08 oder BS-112.Der auf Flexibilität ausgelegte BS-5 liefert außergewöhnliche Klarheit und Detailtreue und eignet sich daher ideal für kleine bis mittelgroße Räume. Seine kompakte Form und das leichte Design ermöglichen einfachen Transport und Installation ohne Einbußen bei der Klangqualität. Die hocheffizienten Treiber liefern klare Mitten und präzise Höhen, während das robuste Gehäuse auch in anspruchsvollen Umgebungen eine konstante Leistung gewährleistet.In Kombination mit dem SUB-08 oder BS-112 erzeugt der BS-5 ein ausgewogenes Soundsystem mit satterem Bass und eignet sich sowohl für Festinstallationen als auch für mobile Anwendungen. Ob als Frontfill oder als Teil eines größeren Systems – der BS-5 liefert zuverlässige Leistung in verschiedenen professionellen Umgebungen.
LYNX pro audio RX-10 aktiv Lautsprecher 1 x 10", 90ºx60º, 600W Class D DSP Bluetooth
- LF: 10”, 2” voice coil - HF: 1”, compression Driver- 65 Hz – 20 kHz- 119 dB 125 dB Peak- Power RMS power of 28-0W and a peak 600W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 280W RMS / 600W peak- 230V ~ / 50Hz mains power supply- Weight 12 Kg - Dimensions 545 x 355 x 295 mm (H x W x D)
LYNX pro audio RX-15 aktiv Lautsprecher, 1 x 15", 90ºx60º, 1000W Class D, DSP Bluetooth,
- LF: 15”, 3” voice coil - HF: 1,35”, compression Driver- 45 Hz – 20 kHz- 125 dB 131 dB Peak- Power RMS power of 450W and a peak 1000W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 450W and a peak 1000W- 230V ~ / 50Hz mains power supply
LYNX pro-audio BS-10 Full Range 1 x 10”, 90ºx60º rotatable, 125dB, 600W Topteil
The BS-10 is a compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor. The 10” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity, with a PETP diaphragm. The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-10 can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance. Components LF: 10” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver Frequency Range65 Hz – 18 KHz (-10dB) Sensitivity 94 dB Max SPL/Peak*119 dB / 125 dB Rated Power 300W AES (600W program, 1200W peak) Dispersion90º x 60º rotatable Nominal Impedance 8 Ω Connectors2 X NEUTRIK Speakon NL4 Finish Polyurea coating Material15 mm premium birch plywood Dimensions 500 x 300 x 301 mm (H x W x D) Weight14 Kg (30.8 lbs) Fittings 5 x M8, single pole-mount, ergonomic handle on the back position AccessoriesU bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type Multi angle enclosure
LYNX pro-audio BS-15 Full Range 15" drehbarem Horn, Lautsprecher oder Monitorbox
The BS-15 is a compact, two-way passive cabinet. Consists of a 15” (3” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.The 15” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The ultra compact 1” HF driver achieves high sensitivity, with exceptional dynamic range creating remarcable depth and definition.The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over medium distances. Although the BS-15 can be used without processor we recommend that the cabinet presets are applied for maximum optimization and performanceComponentsLF: 15” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sidesHF: 1” exit throat, (25,4 mm) voice coil, annular diaphragm driverFrequency Range55 Hz – 20 KHz (-10dB)Sensitivity98 dBMax SPL/Peak*124 dB / 130 dBRated Power400W AES (800W program, 1600W peak)Dispersion90º x 60º rotatableNominal Impedance8 ΩConnectors2 X NEUTRIK Speakon NL4FinishPolyurea coatingMaterial15 mm premium birch plywoodDimensions664 x 425 x 420 mm (H x W x D)Weight24 Kg (52.9 lbs)Fittings5 x M8, double pole-mount with 10º angle, ergonomic handle on the back positionAccessoriesU bracket horizontal & vertical, M8 eyebolts, wall bracketEnclosure typeMulti angle enclosure* Calculated maximum SPL based on rated peak power and measured sensitivity

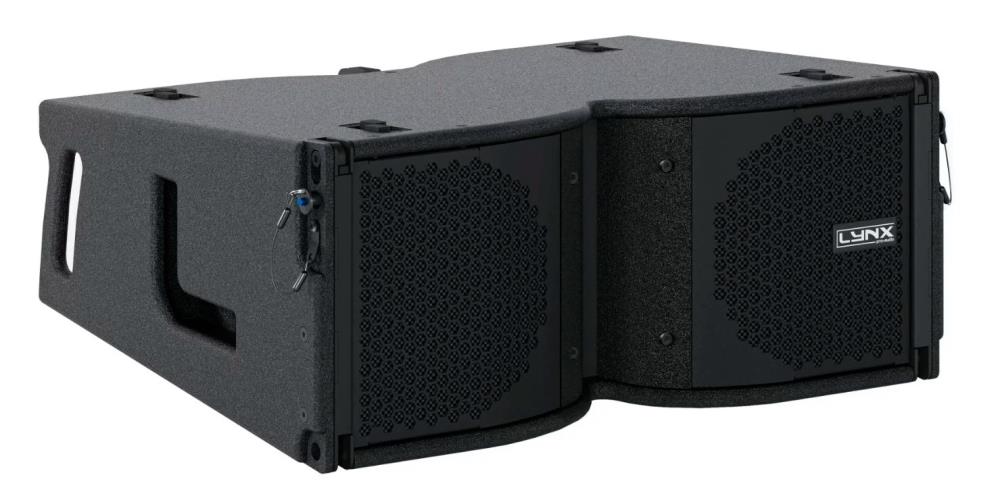

LYNX pro-audio CLS-28 2 x 8" / 1 x 8"Coaxial 2800W, Class D DSP integrated coaxial line array
Extremely compact & powerful 3-way, self-powered (2800 W Class-D with PFC), DSP integrated coaxial line array element. Dual high power 8″ neodymium transducers and a unique 8″ dual diaphragm coaxial planar wave driver.- Extraordinary power-to-size ratio- Unique 8” dual diaphragm planar wave driver- Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence- Extended bandwith (65 Hz – 22 KHz)- Integrated Digital processor (64 bit / 96 KHz) with FIR linear phase filtering- Perfect Time Alignment avoiding Multi-Source Interference problems- Ergonomic design in premium birch plywood & finished in polyurea- 2.8” IPS display with multifunction joystick control

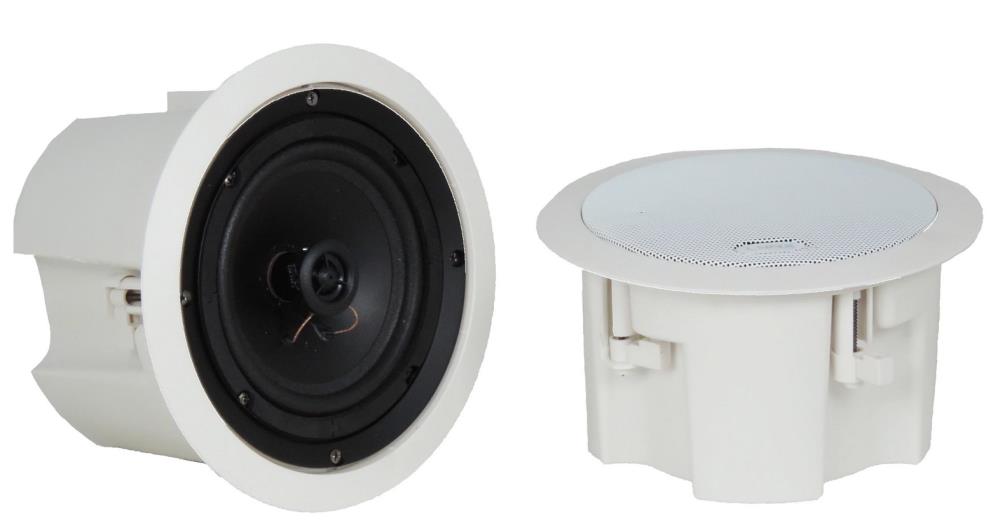

LYNX pro-audio CS-8T Deckeneinbau Lautsprecher 8", 90 Coaxial 107.5dB, 180W, 100v/70V schaltbar
The CS-8T is an in-ceiling loudspeaker delivering great sound performance. It features a 8” woofer + 0.5” tweeter. It uses a 100V / 70V Line transformer that offers a selection of 30/15/7.5/3.5W ( 1.9W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass. The baffle, bezel and rear enclosure are constructed from ABS. The rear enclosure adds damping material, providing an optimum internal volume for extended low-frequency performance.
LYNX pro-audio GXR-12 Full Range 1 x 12" 1400W, Class D, DSP alktiv, self powered Floor Monitor
The GXR-12 enclosure is a multipurpose full-range self-powered that stands out for its high performance. It does not need to carry an external amplification rack and is ideal for a wide variety of applications, both in fixed installations and portable applications since its trapezoidal design allows it to function even as a stage monitor.Consists of a 12”(2.5”voice coil) transducer with a 1”compression driver with a polyimide diaphragm mounted on a 90ºH x 40ºV precise directivity horn. DSP (FIR Filters) controlled with 1400W amplification, 127dB SPL. This system can be controlled online in real time.A complete range of accessories facilitate its use on tripod, wall hanging, ceiling, satellite mode, etc. To facilitate its transport, a robust flight case is available where two enclosures can be found next to its wiring. There is also a practical nylon case available.ComponentsLF: 12″ 2,5″ voice coil, Malt Cross Cooling SystemHF: 1″ Exit compression Driver , 1,75″ aluminium voice coilFrequency Range60 Hz – 20 KHz (-10dB)Frequency Response66 Hz – 18 KHz (± 3dB)Max SPL127 dBCoverage Angle90º x 40º constant directivity horn. RotatablePower1400W Class D with switching power supply & PFCLF Amplifier1 x 800 WHF Amplifier1 x 600 WProcessingInternal Lynx Processor DSPB-FL.96 KHz / 64 bit double-precision, DSP with FIR filter linear phaseControlUser control interface with 2.8″ IPS screenControl ConnectionsEthernet (optional) / USB (DSP programming)InputAnalog / AES3 (optional)AC Power90 – 264V. 50/60 Hz with PFCAC Connections16A Neutrik powerCon TRUE1 TOP with looping outputFinishPolyurea coating, black colourMaterial15 mm premium birch plywoodDimensions639 x 370 x 386 mm (H x W x D)Weight23.5 kg (51.7 lbs)

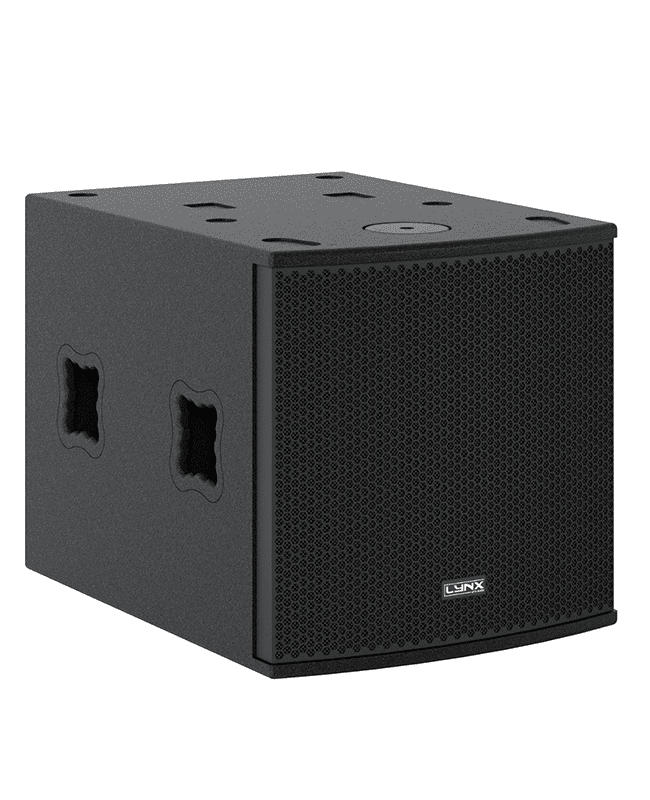

LYNX pro-audio GXR-18S 1 x 18" 1400W, Class D, DSP Subwoofer aktiv self powered
The GXR-18S model is a self-powered subwoofer enclosure specially designed to reinforce the low frequencies of the full range models of the GXR series. You do not need to carry an external amplification rack and it is an excellent option for subwoofer reinforcement in general.The enclosure has 1400 W class D amplifier switching power supply, with DSP processor. This system can be controlled online in real time and stands out for its high performance, with an excellent power-size ratio.For portable applications, a wheel kit is available to facilitate transportation. It can also be covered with a practical nylon sheath that protects the box during transport and storage.ComponentsLF: 1 x 18″. 3″ voice coilFrequency Range38 Hz – 140 Hz (-10dB)Frequency Response44 Hz – 125 Hz (± 3dB)Max SPL132 dBCoverage AngleOmnidirectionalPower1400W Class D with switching power supply & PFCLF Amplifier1 x 1400 WProcessingInternal Lynx Processor DSPB-FL.96 KHz / 64 bit double-precision, DSP with FIR filter linear phaseControlUser control interface with 2.8″ IPS screenControl ConnectionsEthernet optional / USB (DSP programming)InputAnalog / AES3 (optional)AC Power85 – 270V. 50/60 Hz with PFCAC Connections16A Neutrik powerCon TRUE1 TOP with looping outputFinishPolyurea coating, black colourMaterial18 mm premium birch plywoodDimensions505 x 505 x 700 mm (H x W x D)Weight41 kg (90 lbs

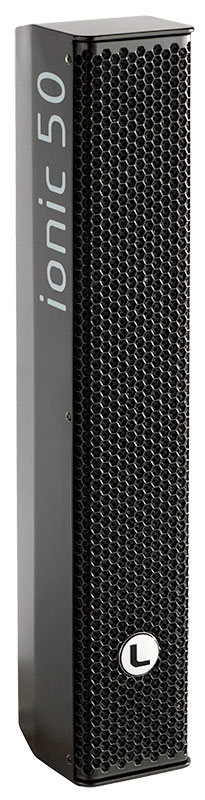

LYNX pro-audio IONIC 50 6x3" 150W passiv schwarz, Zeilen Lautsprecher,
The Ionic-V24 is a two-way passive column speaker part of the Ionic series. This column is oriented to contain high fidelity voice and has more vertical directivity thanks to the waveguide.It is the newest and most powerful column system in the series and it is ideal for indoor installations, conference rooms, houses of worship and sound reinforcement. It can be powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications. It can also be powered from an external amplifier.ComponentsLow/mid: 4 x 4″ speakers with 1″ voice coilHigh: 1 x 1″ exit on waveguideFrequency Range90 Hz – 20 KHz (-6dB) processedSensitivity*96 dB (1W@1m)Max SPL**120 dB – 126 dB PeakCoverage100º H x 25º VPower230 W (460 W program, 920 W peak)Nominal Impedance16 ΩConnectors2 x Neutrik NL4MP / 4 poles PHOENIX connectorFinishWater-based paintMaterial9 and 15 mm birch plywoodDimensions586 x 118 x 149 mm (H x W x D)Weight7 Kg (15.4 lbs)* 4v@1m Pink noise with 12dB crest factor processed.** Calculated based on power rating and measured sensitivity processed.

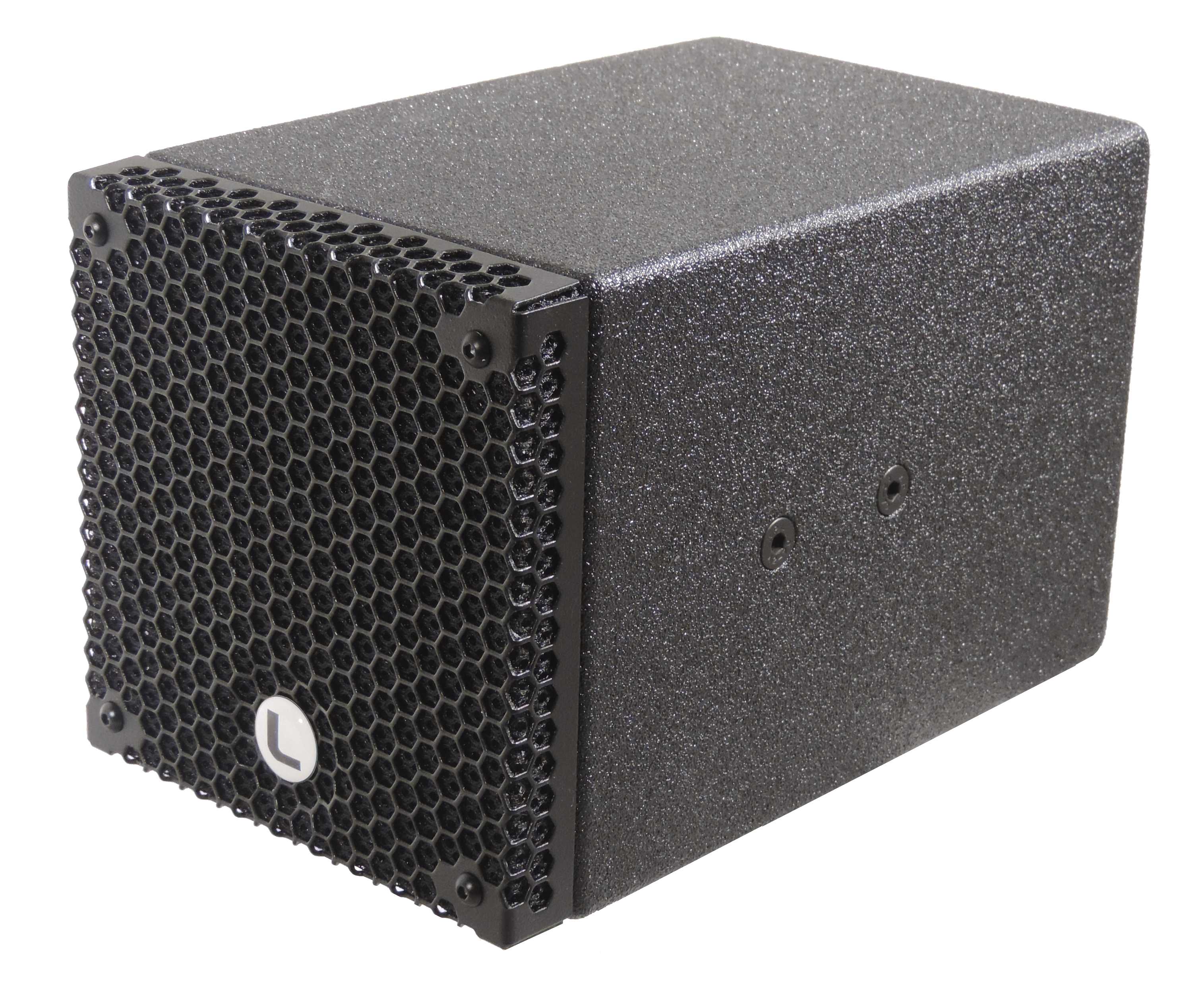

LYNX pro-audio IONIC-5CX 5" Coaxial 70° passiv outdoor Speaker
The Ionic-5CXv is a passive coaxial speaker ideal for outdoor installations. This ultra-compact cabinet features a double polyurea coating, aluminium grill, polyester foam protection, glamp connectors and weatherproof speaker cones.The Ionic-5CXv uses a 5” coaxial speaker (1.5” LF voice coil and 1” HF voice coil) offering a coverage of 70º conical dispersion and 117dB SPL (300 W program).Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.The Ionic-5CXv is powered from the subwoofer unit ionic-12S which includes a Digital Signal Processor offering different presets to cover a wide range of sound applications. It can also be powered from an external amplifier using the ARK optimised preset.The Ionic cabinets are compact, modular and powerful and the complete series also includes two sub units and four column models.Components1 x 5″ coaxial speaker with LF 1.5″ and HF 1″ voice coilFrequency Range64 Hz – 20 KHz (-10dB)Frequency Response90 Hz – 18 KHz (± 3dB)Sensitivity93 dB (1W@1m)Max SPL*114 dB – 120 dBCoverage70º conical dispersionPower150 W AES (300 W program, 600 W peak) @ 8 ΩOperating mode8 Ω / 100 V: 100 W / 75 W / 50 W selectableConnectorsIn: Euroblock terminalOut: Cable glandFinishPolyurea coating, high grade resistant paintMaterial10 mm premium birch plywoodDimensions152 x 152 x 221 mm (H x W x D)Weight3 Kg (6.6 lbs)*Calculated maximum SPL basen on rated peak power and measured sensitivity.

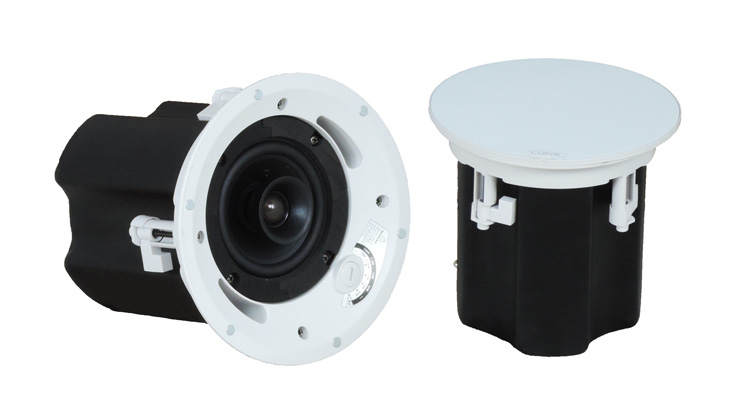

LYNX pro-audio IXP-4 1x4"100° conic102dB 120W weiß
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass. The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front. A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection. The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels. Components 4” 100mm polypropylene cone Frequency Range 90 – 20.000 Hz Rated Power 30W (8 Ω) 120W Peak Transformer Taps100V 30 / 15 / 7.5 / 3.75W70V 30 / 15 / 7.5 / 3.75 / 1.9WLow Impedance 8Ω Max SPL 8Ω 102dB 100V / 70V 102dB Sensitivity 87 dB 1W / 1m @ Zn average 400 Hz to 8KHz Nominal Impedance 8 Ω Nominal Coverage100º Conical Dispersion Recommended Signal processing 100 Hz, at 24 dB per octave high pass filter Crossover Frequency5500 Hz 12dB/octave HP/LP filter Input connection 4 poles Euroblock connector with loop-through Enclosure materialBaffle ABS, backcan steel black finish Grille Powder coated steel, white finish, paintable ControlsFront-face wattage / low impedance selector switch Mounting / Rigging provisions 4 Rotating Mounting tabs (dog ears) Dimensions H x Diameter188 mm x 204.5 mm (7.4 in x 8 in) Cut out size 168 mm (6.6 in) Net weight2.6 Kg (5.7 lbs)

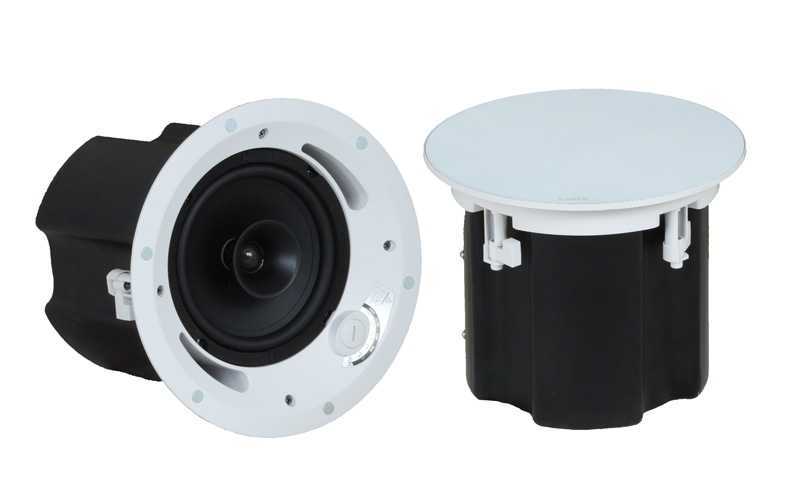

LYNX pro-audio IXP-6 1x6.5"100°conic 113dB 200W weiß Deckeneinbau Lautsprecher
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels.Components 4” 100mm polypropylene coneFrequency Range 90 – 20.000 HzRated Power 30W (8 Ω) 120W PeakTransformer Taps100V 30 / 15 / 7.5 / 3.75W70V 30 / 15 / 7.5 / 3.75 / 1.9WLow Impedance 8ΩMax SPL 8Ω 102dB100V / 70V 102dBSensitivity 87 dB 1W / 1m @ Zn average 400 Hz to 8KHzNominal Impedance8 ΩNominal Coverage100º Conical DispersionRecommended Signal processing 100 Hz, at 24 dB per octave high pass filterCrossover Frequency5500 Hz 12dB/octave HP/LP filterInput connection4 poles Euroblock connector with loop-throughEnclosure materialBaffle ABS, backcan steel black finishGrillePowder coated steel, white finish, paintableControlsFront-face wattage / low impedance selector switchMounting / Rigging provisions4 Rotating Mounting tabs (dog ears)Dimensions H x Diameter188 mm x 204.5 mm (7.4 in x 8 in)Cut out size168 mm (6.6 in)Net weight2.6 Kg (5.7 lbs)

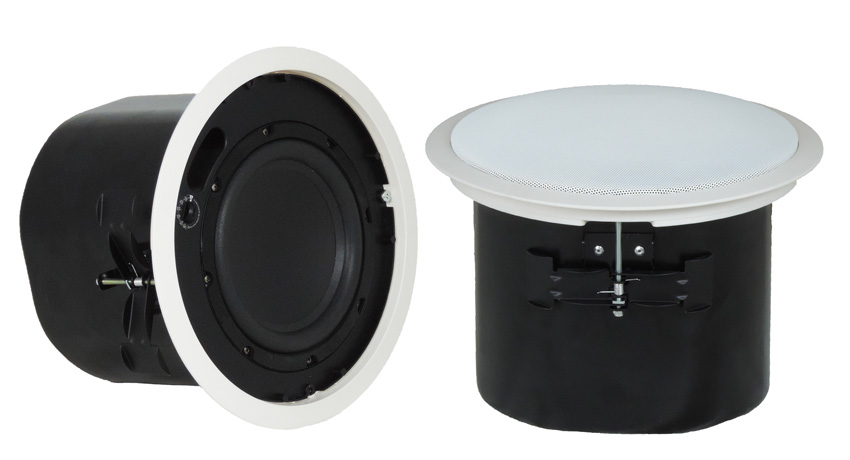

LYNX pro-audio IXP-8SUB 1x8"180° 116dB 320W weiß Deckeneinbau Subwoofer
The IXP-8SUB is an in-ceiling loudspeaker subwoofer with a great sound performance. It features a 8” woofer with 80W AES in a low impedance and it’s a loudspeaker designed for extended the low frequency of the IXP ceiling speakers.It uses a 100V / 70V Line transformer that offers a selection of 50/25W (1.9W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.Components8″ 200 mm polypropylene coneFrequency Range50 – 200 HzRated Power80W (8 Ω) 320W PeakTransformer Taps100V 50 / 25 / 12.5 W70V 50 / 25 / 12.5 / 6.25 WLow Impedance 8ΩMax SPL 8Ω 110 dB / 116 dB100V / 70V 107 dB / 113 dBSensitivity 90 dB 1W / 1m @ Zn average 60 Hz to 110 HzNominal Impedance8 ΩNominal Coverage180ºRecommended Signal processing40 Hz, at 24 dB per octave high pass filterCrossover Frequency180 Hz 12dB/octave HP/LP filterInput connection4 poles Euroblock connector with loop-throughEnclosure materialBaffle ABS, backcan steel black finishGrillePowder coated steel, white finish, paintableControlsFront-face wattage / low impedance selector switchMounting / Rigging provisions4 Rotating Mounting tabs (dog ears)Dimensions H x Diameter248 mm x 320 mm (9.7 in x 12.5 in)Cut out size285 mm (11.2 in)Net weight5.62 Kg (12.3 lbs)

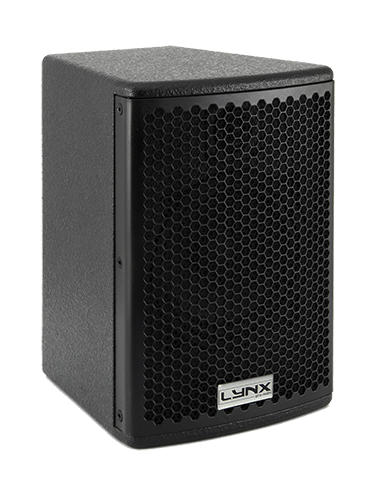

LYNX pro-audio QB5 5"/1" 80W passiv Lautsprecher für Hintergrundbeschallung
The QB-5 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance for background sound applications.It features a 5” low/mid transducer with rubber surround and a 1” neodymium tweeter with micro foil diaphragm.It is made from 9 mm premium birch plywood and coated with water based paint. ComponentsLF: 1 x 5″ transducer / HF 1 x 1″ tweeterFrequency Range65 Hz – 20 KHz (-10dB)Frequency Response75 Hz – 18 KHz (± 3dB)Max SPL107 dB – 113 dB peakSensitivity88 dB (1w @ 1m)Coverage angle90º H x 90º V conicRMS power80 WProgram Power160 WCrossover4700 HzImpedance16 ΩInput Connectors4 x Terminal Block 7.62 mm between pinsMaterial9 mm premium birch plywoodFinishWater based paintDimensions254 x 167 x 186 mm (H x W x D)Weight3 Kg (6.6 lbs)
LynxPA ADP12 12"/1,4" 1500W DSP self powered Topteil
High Output, self-powered (Class D switch modepower supply), two-way cabinet. Consists of a12" (4" voice coil) neodymium magnet transducerwith nomex cones and a 1.4" compression driverwith a 4" titanium diaphragm mounted on a 80ºHx 50ºV constant directivity rotatable horn.DSP controlled with 1500W amplification,136dB SPL.LF/MF 1 x 12" neodymium (4" Interleaved Sandwichvoice coil) + HF 1.4" titanium diaphragm driverFrequency range: 60 Hz - 20 KHzFrequency Response: 65 Hz - 18 KHz ± 3 dBMax. SPL: 133 dB / 136 peak 1w @ 1mCoverage angle: 80º H x 50º V Rotatable hornPower Amplifier: 1500 W Class DLF/MF amplifier: 1 x 750 WHF amplifier: 1 x 750 WProcessing: Lynx DSPB-22Internal Controls: Temperature sensor,Online Monitoring systemControl Connections: XLR / Ethernet (OMS)optional, USB (DSP programming)AC Power: 230V /115V selectable. 50/60 Hz 5AAC Connections: 16A Neutrik Powerconwith link outputMaterial: 15mm Premium birch plywoodFinish: High resistant water-based black paintDimensions (H x W x D): 637x376x411mmWeight: 28 kg (62 lb)

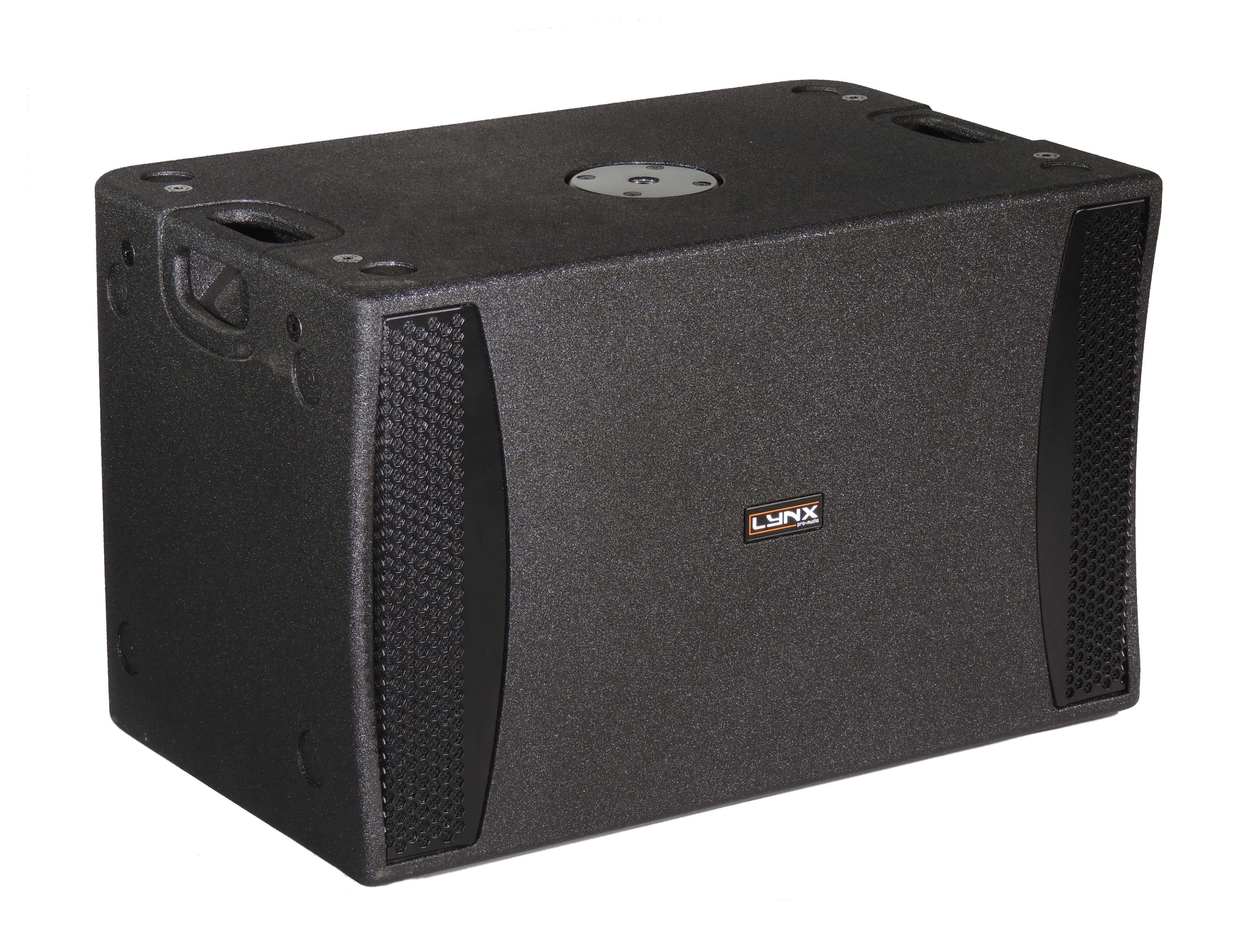

LynxPA BS-112 Subwoofer 12" 126dB schwarz
The BS-112 is a compact, band pass passive subwoofer cabinet designed to extend low frequency support to the four BS Series full range cabinets.The 12" (3" voice coil) driver offers high power handling and high sensitivity with low distortion and ultra low air noise. The cone is waterproof and rubber suspension has been treated on both sides and has been optimized for direct radiation subwoofer applications.Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with pole mount fitting so that it can be used with any of the four full range cabinets. We recommend that the cabinet presets are applied for maximum optimization and performance.Technical DataComponents: LF: 12" speaker, 3" ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sidesFrequency Range: 40 Hz - 90 Hz (-10dB)Sensitivity: 93 dBMax SPL/Peak*: 120 dB / 126 dBRated Power: 500W AES (1000W program, 2000W peak)Dispersion: QuasiomnidirectionalNominal Impedance: 8 OConnectors: 2 X NEUTRIK Speakon NL4Finish: Polyurea coatingMaterial: 15 mm premium birch plywoodDimensions: 406 x 655 x 400 mm (H x W x D)Weight: 29 Kg (63.9 lbs)Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly pointsAccessories: M-20 connector pole, M-10 eyeboltEnclosure type: Band pass subwoofer* Calculated maximum SPL based on rated peak power and measured sensitivity
