LYNX pro-audio QB5 5"/1" 80W passiv Lautsprecher für Hintergrundbeschallung
Produktinformationen "LYNX pro-audio QB5 5"/1" 80W passiv Lautsprecher für Hintergrundbeschallung"
The QB-5 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance for background sound applications.
It features a 5” low/mid transducer with rubber surround and a 1” neodymium tweeter with micro foil diaphragm.
It is made from 9 mm premium birch plywood and coated with water based paint.
Components | LF: 1 x 5″ transducer / HF 1 x 1″ tweeter |
| Frequency Range | 65 Hz – 20 KHz (-10dB) |
Frequency Response | 75 Hz – 18 KHz (± 3dB) |
| Max SPL | 107 dB – 113 dB peak |
Sensitivity | 88 dB (1w @ 1m) |
| Coverage angle | 90º H x 90º V conic |
RMS power | 80 W |
| Program Power | 160 W |
| Crossover | 4700 Hz |
Impedance | 16 Ω |

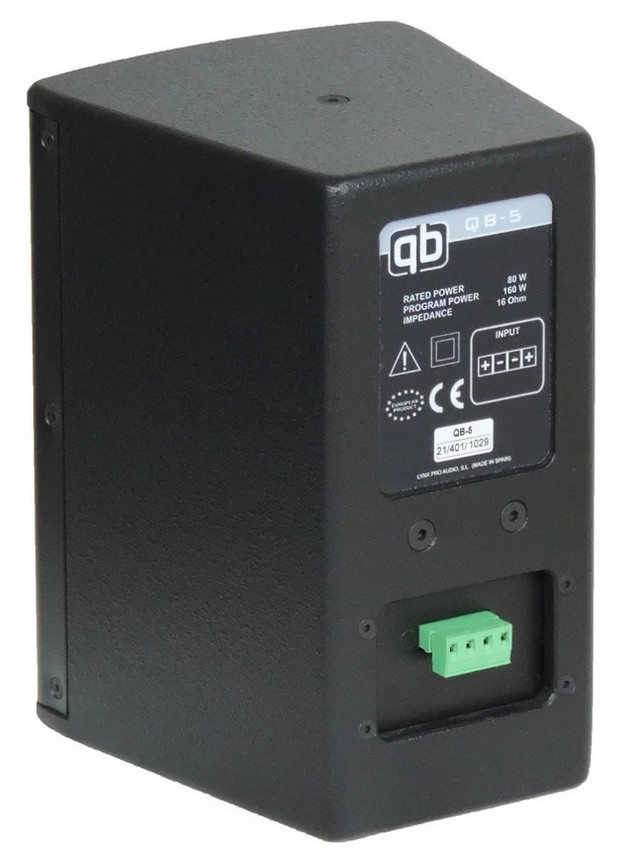

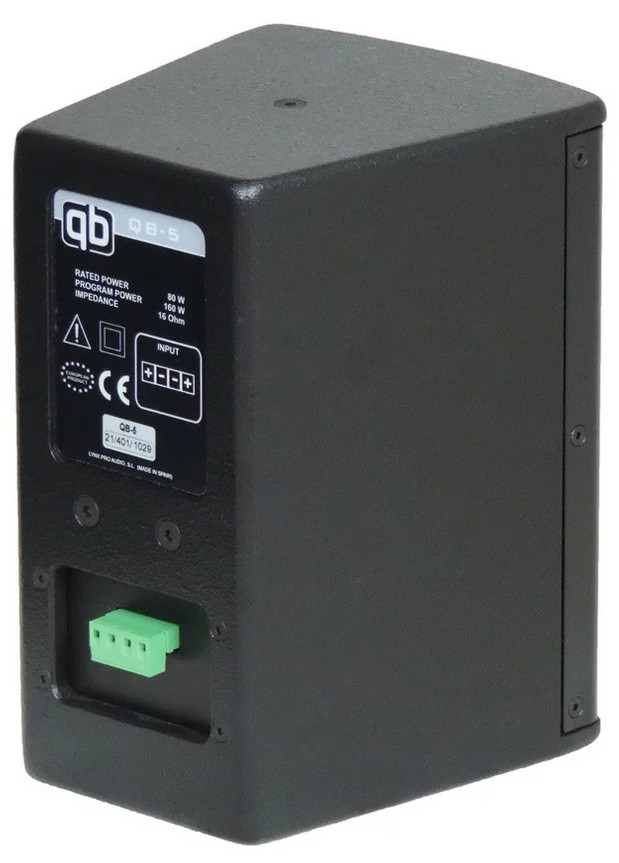

| Input Connectors | 4 x Terminal Block 7.62 mm between pins |
Material | 9 mm premium birch plywood |
| Finish | Water based paint |

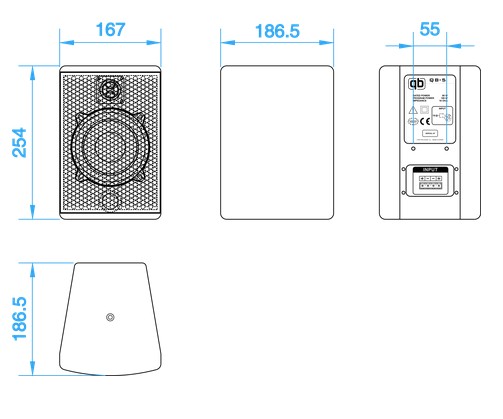

Dimensions | 254 x 167 x 186 mm (H x W x D) |
| Weight | 3 Kg (6.6 lbs) |
