20 Produkte
20 Produkte
Lynx JN6BT 6"/1" 80W/16 100V IP46 schwarz incl Wandhalter
Wetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. Montagebügel60Hz-18KHz55Hz-20KHz1×6"(150mm) / 1.5"voice coil LF80W RMS, 320W peakTransformer taps 100 V: 20W / 40W / 80W Sensitivity89dB 1W/1 m110dB / 116 dB peak16 ohm nominal90°×60°2.4kHz passivecovered barrier strip terminals5.5 kgoptional: - U Bracket with stainless steelscrews, silicone washers and safetycable- Plastic cover with gland connector andeuroblock input connector
Lynx JN6WT 6"/1" 80W/16 100V IP46 weiß incl Wandhalter
Lynx JUNO JN6WT 6"/1,5"Voice coil 40W/100V white TransformatorWeather-resistant, two-way full range loudspeakers60Hz-18KHz55Hz-20KHz1×6"(150mm) / 1.5"voice coil LF80W RMS, 320W peakTransformer taps 100 V: 20W / 40W / 80W Sensitivity89dB 1W/1 m110dB / 116 dB peak16 ohm nominal90°×60°2.4kHz passivecovered barrier strip terminals5.5 kgoptional: - U Bracket with stainless steelscrews, silicone washers and safetycable- Plastic cover with gland connector andeuroblock input connector
Lynx JN8BT 8"/1" 150W/16 100BV IP46 schwarz incl Wandhalter
Lynx JN8B 8"/1" 150W/100V IP46 Transformer black/schwarzWetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. MontagebügelFrequency response(-3dB) 60Hz-18KHzFrequency response(-10dB) 55Hz-20KHzDrivers 1×8"(200mm) / 2"voice coil LF1×1"(25mm) / 1"voice coil HFRated power 150W RMS, 600W peakSensitivity 94dB 1w/1 mMaximum SPL 116dB / 122 dB peakImpedance 16 ohm nominal Transformer taps 100 V: 20W / 40W / 80W SensitivityDispersion(-6db) 90°×50°Crossover frequencies 2.3kHz passiveInput connectors covered barrier strip terminalsPackage size 370×310×525mmNet weight 10kg/pcGross weight 12kg/pc
Lynx JN8WT 8"/1" 150W/16 100V IP46 weiß incl Wandhalter
Wetterfeste Zweiwege-Breitbandlautsprecher für Innen- und AußenanwendungenInnen- oder AußenanwendungWetterbeständig - Schutzart IP46Regen und Salzwasser beständig Formschönes KunststoffspritzgehäuseUV-beständigVertikale und horizontale Installation wasserdichtes FrontgitterErhältlich in schwarz oder weißincl. MontagebügelFrequency response(-3dB) 60Hz-18KHzFrequency response(-10dB) 55Hz-20KHzDrivers 1×8"(200mm) / 2"voice coil LF1×1"(25mm) / 1"voice coil HFRated power 150W RMS, 600W peakSensitivity 94dB 1w/1 mMaximum SPL 116dB / 122 dB peakImpedance 16 ohm nominal Transformer taps 100 V: 20W / 40W / 80W SensitivityDispersion(-6db) 90°×50°Crossover frequencies 2.3kHz passiveInput connectors covered barrier strip terminalsPackage size 370×310×525mmNet weight 10kg/pcGross weight 12kg/pc
LYNX pro audio BS-5
Der BS-5 ist ein vielseitiger, ultrakompakter und leichter Zweiwege-Passivlautsprecher für leistungsstarke Hintergrundbeschallung. Er verfügt über einen 5-Zoll-Tief-/Mitteltöner mit Gummisicke und einen 1-Zoll-Hochtöner mit Aluminiumkalotte. Hergestellt aus 9/15 mm starkem hochwertigem Birkensperrholz und mit strapazierfähiger Polyharnstofffarbe beschichtet, dadurch ist dieser Lautsprecher besonders langlebig. Für eine verbesserte Tieftonverstärkung empfehlen wir die Kombination mit den Subwoofern SUB-08 oder BS-112.Der auf Flexibilität ausgelegte BS-5 liefert außergewöhnliche Klarheit und Detailtreue und eignet sich daher ideal für kleine bis mittelgroße Räume. Seine kompakte Form und das leichte Design ermöglichen einfachen Transport und Installation ohne Einbußen bei der Klangqualität. Die hocheffizienten Treiber liefern klare Mitten und präzise Höhen, während das robuste Gehäuse auch in anspruchsvollen Umgebungen eine konstante Leistung gewährleistet.In Kombination mit dem SUB-08 oder BS-112 erzeugt der BS-5 ein ausgewogenes Soundsystem mit satterem Bass und eignet sich sowohl für Festinstallationen als auch für mobile Anwendungen. Ob als Frontfill oder als Teil eines größeren Systems – der BS-5 liefert zuverlässige Leistung in verschiedenen professionellen Umgebungen.
LYNX pro-audio BS-10 Full Range 1 x 10”, 90ºx60º rotatable, 125dB, 600W Topteil
The BS-10 is a compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor. The 10” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity, with a PETP diaphragm. The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-10 can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance. Components LF: 10” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver Frequency Range65 Hz – 18 KHz (-10dB) Sensitivity 94 dB Max SPL/Peak*119 dB / 125 dB Rated Power 300W AES (600W program, 1200W peak) Dispersion90º x 60º rotatable Nominal Impedance 8 Ω Connectors2 X NEUTRIK Speakon NL4 Finish Polyurea coating Material15 mm premium birch plywood Dimensions 500 x 300 x 301 mm (H x W x D) Weight14 Kg (30.8 lbs) Fittings 5 x M8, single pole-mount, ergonomic handle on the back position AccessoriesU bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 pole Enclosure type Multi angle enclosure
LYNX pro-audio BS-15 Full Range 15" drehbarem Horn, Lautsprecher oder Monitorbox
The BS-15 is a compact, two-way passive cabinet. Consists of a 15” (3” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.The 15” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The ultra compact 1” HF driver achieves high sensitivity, with exceptional dynamic range creating remarcable depth and definition.The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over medium distances. Although the BS-15 can be used without processor we recommend that the cabinet presets are applied for maximum optimization and performanceComponentsLF: 15” speaker, 3” ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sidesHF: 1” exit throat, (25,4 mm) voice coil, annular diaphragm driverFrequency Range55 Hz – 20 KHz (-10dB)Sensitivity98 dBMax SPL/Peak*124 dB / 130 dBRated Power400W AES (800W program, 1600W peak)Dispersion90º x 60º rotatableNominal Impedance8 ΩConnectors2 X NEUTRIK Speakon NL4FinishPolyurea coatingMaterial15 mm premium birch plywoodDimensions664 x 425 x 420 mm (H x W x D)Weight24 Kg (52.9 lbs)Fittings5 x M8, double pole-mount with 10º angle, ergonomic handle on the back positionAccessoriesU bracket horizontal & vertical, M8 eyebolts, wall bracketEnclosure typeMulti angle enclosure* Calculated maximum SPL based on rated peak power and measured sensitivity
LYNX pro-audio CS-8T Deckeneinbau Lautsprecher 8", 90 Coaxial 107.5dB, 180W, 100v/70V schaltbar
The CS-8T is an in-ceiling loudspeaker delivering great sound performance. It features a 8” woofer + 0.5” tweeter. It uses a 100V / 70V Line transformer that offers a selection of 30/15/7.5/3.5W ( 1.9W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass. The baffle, bezel and rear enclosure are constructed from ABS. The rear enclosure adds damping material, providing an optimum internal volume for extended low-frequency performance.
LYNX pro-audio IONIC 50 6x3" 150W passiv schwarz, Zeilen Lautsprecher,
The Ionic-V24 is a two-way passive column speaker part of the Ionic series. This column is oriented to contain high fidelity voice and has more vertical directivity thanks to the waveguide.It is the newest and most powerful column system in the series and it is ideal for indoor installations, conference rooms, houses of worship and sound reinforcement. It can be powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications. It can also be powered from an external amplifier.ComponentsLow/mid: 4 x 4″ speakers with 1″ voice coilHigh: 1 x 1″ exit on waveguideFrequency Range90 Hz – 20 KHz (-6dB) processedSensitivity*96 dB (1W@1m)Max SPL**120 dB – 126 dB PeakCoverage100º H x 25º VPower230 W (460 W program, 920 W peak)Nominal Impedance16 ΩConnectors2 x Neutrik NL4MP / 4 poles PHOENIX connectorFinishWater-based paintMaterial9 and 15 mm birch plywoodDimensions586 x 118 x 149 mm (H x W x D)Weight7 Kg (15.4 lbs)* 4v@1m Pink noise with 12dB crest factor processed.** Calculated based on power rating and measured sensitivity processed.
LYNX pro-audio IONIC-5CX 5" Coaxial 70° passiv outdoor Speaker
The Ionic-5CXv is a passive coaxial speaker ideal for outdoor installations. This ultra-compact cabinet features a double polyurea coating, aluminium grill, polyester foam protection, glamp connectors and weatherproof speaker cones.The Ionic-5CXv uses a 5” coaxial speaker (1.5” LF voice coil and 1” HF voice coil) offering a coverage of 70º conical dispersion and 117dB SPL (300 W program).Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.The Ionic-5CXv is powered from the subwoofer unit ionic-12S which includes a Digital Signal Processor offering different presets to cover a wide range of sound applications. It can also be powered from an external amplifier using the ARK optimised preset.The Ionic cabinets are compact, modular and powerful and the complete series also includes two sub units and four column models.Components1 x 5″ coaxial speaker with LF 1.5″ and HF 1″ voice coilFrequency Range64 Hz – 20 KHz (-10dB)Frequency Response90 Hz – 18 KHz (± 3dB)Sensitivity93 dB (1W@1m)Max SPL*114 dB – 120 dBCoverage70º conical dispersionPower150 W AES (300 W program, 600 W peak) @ 8 ΩOperating mode8 Ω / 100 V: 100 W / 75 W / 50 W selectableConnectorsIn: Euroblock terminalOut: Cable glandFinishPolyurea coating, high grade resistant paintMaterial10 mm premium birch plywoodDimensions152 x 152 x 221 mm (H x W x D)Weight3 Kg (6.6 lbs)*Calculated maximum SPL basen on rated peak power and measured sensitivity.
LYNX pro-audio IXP-4 1x4"100° conic102dB 120W weiß
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass. The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front. A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection. The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels. Components 4” 100mm polypropylene cone Frequency Range 90 – 20.000 Hz Rated Power 30W (8 Ω) 120W Peak Transformer Taps100V 30 / 15 / 7.5 / 3.75W70V 30 / 15 / 7.5 / 3.75 / 1.9WLow Impedance 8Ω Max SPL 8Ω 102dB 100V / 70V 102dB Sensitivity 87 dB 1W / 1m @ Zn average 400 Hz to 8KHz Nominal Impedance 8 Ω Nominal Coverage100º Conical Dispersion Recommended Signal processing 100 Hz, at 24 dB per octave high pass filter Crossover Frequency5500 Hz 12dB/octave HP/LP filter Input connection 4 poles Euroblock connector with loop-through Enclosure materialBaffle ABS, backcan steel black finish Grille Powder coated steel, white finish, paintable ControlsFront-face wattage / low impedance selector switch Mounting / Rigging provisions 4 Rotating Mounting tabs (dog ears) Dimensions H x Diameter188 mm x 204.5 mm (7.4 in x 8 in) Cut out size 168 mm (6.6 in) Net weight2.6 Kg (5.7 lbs)
LYNX pro-audio IXP-6 1x6.5"100°conic 113dB 200W weiß Deckeneinbau Lautsprecher
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.The frameless grill has a discrete design offering the possibility to paint easily if required. Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels.Components 4” 100mm polypropylene coneFrequency Range 90 – 20.000 HzRated Power 30W (8 Ω) 120W PeakTransformer Taps100V 30 / 15 / 7.5 / 3.75W70V 30 / 15 / 7.5 / 3.75 / 1.9WLow Impedance 8ΩMax SPL 8Ω 102dB100V / 70V 102dBSensitivity 87 dB 1W / 1m @ Zn average 400 Hz to 8KHzNominal Impedance8 ΩNominal Coverage100º Conical DispersionRecommended Signal processing 100 Hz, at 24 dB per octave high pass filterCrossover Frequency5500 Hz 12dB/octave HP/LP filterInput connection4 poles Euroblock connector with loop-throughEnclosure materialBaffle ABS, backcan steel black finishGrillePowder coated steel, white finish, paintableControlsFront-face wattage / low impedance selector switchMounting / Rigging provisions4 Rotating Mounting tabs (dog ears)Dimensions H x Diameter188 mm x 204.5 mm (7.4 in x 8 in)Cut out size168 mm (6.6 in)Net weight2.6 Kg (5.7 lbs)
LYNX pro-audio IXP-8SUB 1x8"180° 116dB 320W weiß Deckeneinbau Subwoofer
The IXP-8SUB is an in-ceiling loudspeaker subwoofer with a great sound performance. It features a 8” woofer with 80W AES in a low impedance and it’s a loudspeaker designed for extended the low frequency of the IXP ceiling speakers.It uses a 100V / 70V Line transformer that offers a selection of 50/25W (1.9W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.Components8″ 200 mm polypropylene coneFrequency Range50 – 200 HzRated Power80W (8 Ω) 320W PeakTransformer Taps100V 50 / 25 / 12.5 W70V 50 / 25 / 12.5 / 6.25 WLow Impedance 8ΩMax SPL 8Ω 110 dB / 116 dB100V / 70V 107 dB / 113 dBSensitivity 90 dB 1W / 1m @ Zn average 60 Hz to 110 HzNominal Impedance8 ΩNominal Coverage180ºRecommended Signal processing40 Hz, at 24 dB per octave high pass filterCrossover Frequency180 Hz 12dB/octave HP/LP filterInput connection4 poles Euroblock connector with loop-throughEnclosure materialBaffle ABS, backcan steel black finishGrillePowder coated steel, white finish, paintableControlsFront-face wattage / low impedance selector switchMounting / Rigging provisions4 Rotating Mounting tabs (dog ears)Dimensions H x Diameter248 mm x 320 mm (9.7 in x 12.5 in)Cut out size285 mm (11.2 in)Net weight5.62 Kg (12.3 lbs)
LYNX pro-audio QB5 5"/1" 80W passiv Lautsprecher für Hintergrundbeschallung
The QB-5 is a two-way versatile, ultracompact light weight, passive cabinet offering high-performance for background sound applications.It features a 5” low/mid transducer with rubber surround and a 1” neodymium tweeter with micro foil diaphragm.It is made from 9 mm premium birch plywood and coated with water based paint. ComponentsLF: 1 x 5″ transducer / HF 1 x 1″ tweeterFrequency Range65 Hz – 20 KHz (-10dB)Frequency Response75 Hz – 18 KHz (± 3dB)Max SPL107 dB – 113 dB peakSensitivity88 dB (1w @ 1m)Coverage angle90º H x 90º V conicRMS power80 WProgram Power160 WCrossover4700 HzImpedance16 ΩInput Connectors4 x Terminal Block 7.62 mm between pinsMaterial9 mm premium birch plywoodFinishWater based paintDimensions254 x 167 x 186 mm (H x W x D)Weight3 Kg (6.6 lbs)
%

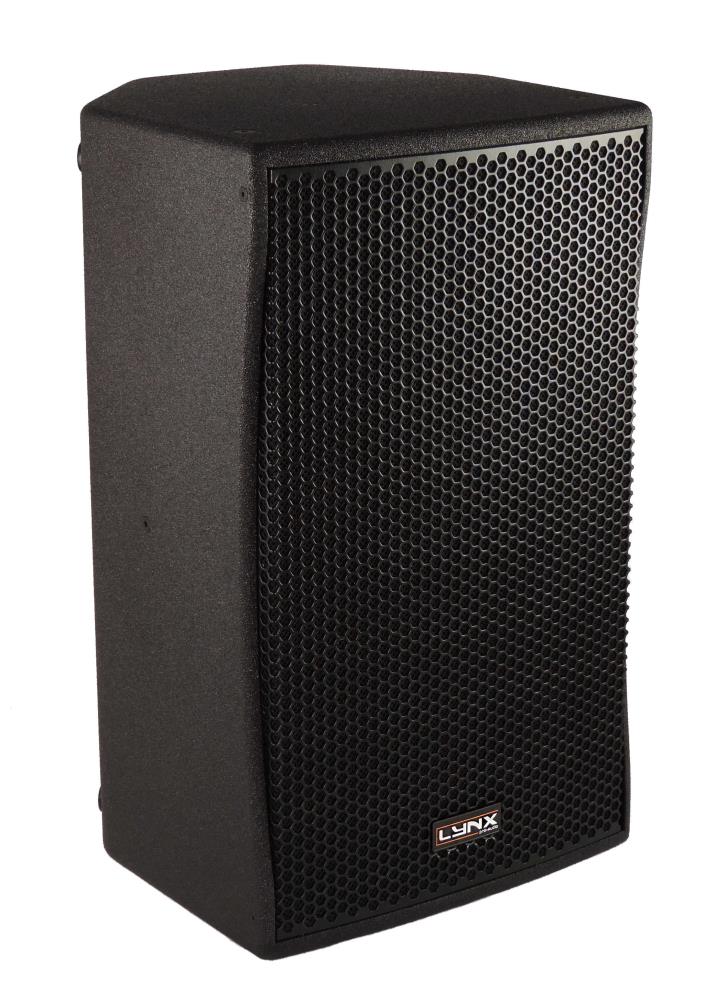

LynxPA BS-12 Full Range 12" Rotatable 128dB schwarz
The BS-12 is a compact, two-way passive cabinet. Consists of a 12" (3" voice coil) LF transducer and a 1" HF driver mounted on a 90º x 60º rotable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.The 12" driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The ultra compact 1" HF driver achieves high sensitivity, with exceptional dynamic range creating remarcable depth and definition.The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over medium distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-12 can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance.Technical Data Components: LF: 12" speaker, 3" ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sidesHF: 1" exit throat, (25,4 mm) voice coil, annular diaphgram driver Frequency Range: 60 Hz - 20 KHz (-10dB)Sensitivity: 96 dBMax SPL/Peak*: 122 dB / 128 dBRated Power: 400W AES (800W program, 1600W peak)Dispersion: 90º x 60º rotatableNominal Impedance: 8 OConnectors: 2 X NEUTRIK Speakon NL4Finish: Polyurea coatingMaterial: 15 mm premium birch plywoodDimensions: 589 x 350 x 348 mm (H x W x D)Weight: 19 Kg (41.8 lbs)Fittings: 5 x M8, double pole-mount with 10º angle, ergonomic handle on the back positionAccessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 poleEnclosure type: Multi angle enclosure* Calculated maximum SPL based on rated peak power and measured sensitivity
LynxPA CS-5T 1x5"2Weg coax 104dB 30W/120W Deckeneinbau Lautsprecher weiß
Der CS5T ist ein Deckenlautsprecher mit hervorragenden Klangeigenschaften.Er verfügt über einen 5" Tieftöner und einen 0,5" Hochtöner.Es wird ein 100V/70V-Leistungstransformator verwendet, der eine Auswahl von 30/15/7,5/3,5W(1,9W bei 70V)bietet, die über hochohmige Leitungen oder 8ohm Bypass an das Lautsprechersystem geliefert werden.Die Membrane, die Lünette und das hintere Gehäuse bestehen aus ABS. Das hintere Gehäuse ist gedämmt und das Innenvolumen ist optimiert für eine niederfrequente Klangwiedergabe 5" 125mm polypropylene cone 0.5" polypropylene Tweeter coaxially mountedFrequency Range 90 - 18.000 Hz Rated Power 30W (8 ohm) 120W PeakTransformer Taps 100V 30 / 15 / 7.5 / 3.75W70V 30 / 15 / 7.5 / 3.75 / 1.9WLow Impedance 8ohmMax SPL 8ohm 104dB100V / 70V 104dBSensitivity 89dB 1W / 1m @ ZnNominal Impedance 8ohmNominal Coverage 90º Conical DispersionRecommended Signal processing 100 Hz, at 24 dB per octave high pass filterCrossover Frequency 2500 HzEnclosure material ABSGrille Powder coated steel, white finish, paintableColour WhiteDimensions (H x Diameter) 114 mm x 213 mm (4.5 in x 8.4 in)

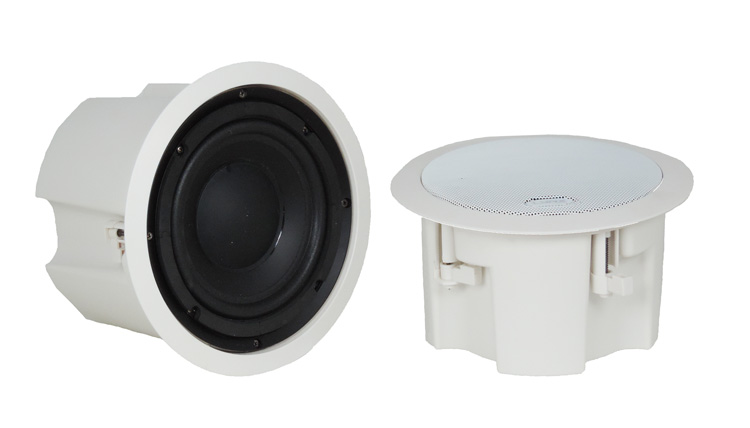

LynxPA CS-8SUB 8" 107dB 220W Deckeneinbau Subwoofer weiß
The CS-8SUB is an in-ceiling loudspeaker subwoofer with a great sound performance. It features a 8” woofer with 80W AES in a low impedance and it’s a loudspeaker designed for extended the low frequency of the CS ceiling speakers.It uses a 100V / 70V Line transformer that offers a selection of 50/25W ( 1.9W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.The baffle, bezel and rear enclosure are constructed from ABS. The rear enclosure adds damping material, providing an optimum internal volume for extended low-frequency performance

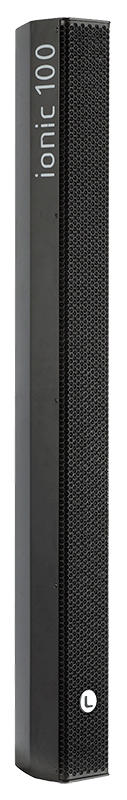

LynxPA IONIC 100 12x3"300W pas127dB Säulenlautsprecher schwarz
12 x 3" speaker with 0.75" voice coil, 150 Hz - 20 KHz (-10dB), 180 Hz - 18 KHz (± 3dB), 96 dB (1W@1m), 121 dB - 127 dB peak, 15º ± 5º V x 100º H, 300 W, 600 W program, 1200 W peak, 8 Ohms, 2 x Neutrik Speakon NL4MP, Epoxy paint, 1.5 mm stainless steel, 1000 x 89 x 117 mm, 13 Kg ( 29 lbs)
