Massively expand your dLive or Avantis system I/O with DX Link.Easy I/O ExpansionAdd up to 128 remote inputs and 64 remote outputs per DX Link module.Plug-and-Play OperationNo configuration required, just install the card, connect your choice of DX Expander(s) and patch your audio.Parallel ModeIn Parallel mode, 1 DX32 or up to 2 DX168/DX012/DX164-W expanders can be connected to each DX Link port.Redundant ModeIn Redundant mode, 1 DX expander of any kind can be connected to each pair of DX Link ports using 2 cables for redundant connection.Add The I/O You NeedMultiple DX Link cards can be fitted to an Avantis or dLive system to scale up system I/O to meet your requirements.The card provides 4 DX Link ports, each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units in either Parallel or Redundant mode.DX ExpandersDX Link supports our entire range of DX remote expanders.

Sichern Sie Ihren Prozessor mit dem Allen & Heath AH-AHM-64-RK, einem Paar rückseitiger Rack-Halterungen für den AHM-64 Audiomatrix-Prozessor. Nach der Montage stützt das Set das Gerät ab, indem es es an der Rückseite des Rack-Gehäuses fixiert – ideal für Umgebungen, in denen Vibrationen oder mechanische Belastungen eine Rolle spielen. Das Set für die rückseitige Rack-Montage ist ausziehbar und für Rack-Tiefen zwischen 19,1 und 23,6 Zoll geeignet.

AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 XLR Line OutsBalanced, relay protected line outputs on XLR.Expander PortFor daisy-chaining 2 compatible Expanders or connection to ME personal mixers.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the AB168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available for installation in 19-inch racks.Put It Where You Need ItThe AB168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.

AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.10outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)

AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.2in / 8outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input

AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.4in / 6outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES inpu

AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.6in / 4outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input

With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.16×16 Processing MatrixFlexible routing with configurable processing on all 16 outputs.8×8 Local Analogue I/O8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors.Sound Management ToolsAutomatic Mic MixerANC (Ambient Noise Compensation)Priority Ducking8-band PEQ, dynamics and delay on every input and zoneSpeaker processing with x-over filter, delay, limiter, PEQ and All-Pass FiltersNTP supportEQ Ganging (Relative, Absolute, and Mirrored Controls)Always In ControlIn addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is ideal for multi-room installations in hospitality, corporate and education environments.Features32×32 Processing Matrix12×12 Local Analogue I/OI/O Port for Audio Networking (Up to 128×128)Dante 96kHz Option Card (AES67 and DDM ready)SLink 128×128 Option Card for Audio Expansion32 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing96kHz FPGA Core With Ultra-low LatencyFront Panel Screen and Navigation8x SoftKeysCompatible With IP1, IP6, IP8 Remote Controllers2×2 Local GPIO Plus Networkable GPIO InterfaceTCP/IP Protocol for Third Party IntegrationCrestron, AMX and Extron DriversMac / Windows System Manager SoftwareCustom Control app and Editor for BYOD16 User ProfilesIntegrated Stereo PlaybackEvent Scheduler32×32 Processing MatrixFlexible routing with configurable processing on all 32 outputs.12×12 Local Analogue I/O12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.Audio Networking I/O PortCard options include Dante, MADI, Waves and SLink.Sound Management Tools• 4x Automatic Mic Mixers• ANC (Ambient Noise Compensation)• Priority Ducking• 8-band PEQ, dynamics and delay on every input and zone• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters• NTP support• EQ Ganging (Relative, Absolute, and Mirrored Controls)Always In ControlIn addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

The Processing Expansion Module provides up to 12 channels of acoustic echo cancellation (AEC) or 8 instances of feedback suppression (FBS) for AHM-32. FeaturesUp to 12 Channels of AEC150ms FIR Adaptive FilterFar-End AGC (Automatic Gain Control)Residual Echo NLP (non-linear processing)Background Noise ReductionNear-End gatingSpeech-Shaped Comfort NoiseUp to 8 instances of FBS25 configurable live or fixed bandsBias adjustmentsMono or stereo Zone supportReset All Bands available for controllersAECAssigned via Inserts on Input Channels. One AEC reference is available per setup. Multi-mic scenarios supported for up to 12 microphones in a single setup.With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.Allen & Heath’s Acoustic Echo Cancellation intelligently detects the “echo” in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.The result? A clearer, more comfortable listening experience for everyone in the meeting!FBSAssigned via Inserts on Zone Channels. Up to 25 bands of live or fixed feedback suppression. Mono or stereo Zones supported.Not every voicelift or sound reinforcement scenario is perfect. Not every person knows the best mic handling technique.Feedback suppression allows us to diminish annoying or harmful frequencies that can damage sound equipment or distract audience members.With up to 8 instances of FBS each with up to 25 bands of feedback detection and suppression, even the most troublesome systems can be tamed.User InterfaceAll the parameters you need, for any mode. AHM’s System Manager provides easy and accessible control over FBS and AEC.

The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.Features64×64 Processing Matrix12×12 Local Analogue I/OI/O Port for Audio Networking (Up to 128×128)Dante 96kHz Option Card (AES67 and DDM ready)128×128 Built-in SLink Port for Audio Expansion64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing96kHz FPGA Core With Ultra-low LatencyCompatible With IP1, IP6, IP8 Remote Controllers2×2 Local GPIO Plus Networkable GPIO InterfaceTCP/IP Protocol for Third Party IntegrationCrestron, AMX and Extron DriversMac / Windows System Manager SoftwareCustom Control app and Editor for BYOD32 User ProfilesIntegrated Stereo PlaybackEvent SchedulerDC backup power supply64×64 Processing MatrixFlexible routing with configurable processing on all 64 outputs.12×12 Local Analogue I/O12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.Audio Networking I/O PortCard options include Dante, MADI, Waves and SLink.Sound Management Tools• 8x Automatic Mic Mixers• ANC (Ambient Noise Compensation)• Priority Ducking• 8-band PEQ, Dynamics and Delay on every Input and Zone• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters• NTP support• EQ Ganging (Relative, Absolute, and Mirrored Controls)• Processing expansion module

The Processing Expansion Module provides up to 12 channels of acoustic echo cancellation (AEC) or 8 instances of feedback suppression (FBS) for AHM-64.  FeaturesUp to 12 Channels of AEC150ms FIR Adaptive FilterFar-End AGC (Automatic Gain Control)Residual Echo NLP (non-linear processing)Background Noise ReductionNear-End gatingSpeech-Shaped Comfort NoiseUp to 8 instances of FBS25 configurable live or fixed bandsBias adjustmentsMono or stereo Zone supportReset All Bands available for controllers AECAssigned via Inserts on Input Channels. One AEC reference is available per setup. Multi-mic scenarios supported for up to 12 microphones in a single setup.With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.Allen & Heath’s Acoustic Echo Cancellation intelligently detects the “echo” in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.The result? A clearer, more comfortable listening experience for everyone in the meeting!FBSAssigned via Inserts on Zone Channels. Up to 25 bands of live or fixed feedback suppression. Mono or stereo Zones supported.Not every voicelift or sound reinforcement scenario is perfect. Not every person knows the best mic handling technique.Feedback suppression allows us to diminish annoying or harmful frequencies that can damage sound equipment or distract audience members.With up to 8 instances of FBS each with up to 25 bands of feedback detection and suppression, even the most troublesome systems can be tamed.User InterfaceAll the parameters you need, for any mode. AHM’s System Manager provides easy and accessible control over FBS and AEC.

AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM audio matrix processors.24 Mic Preamps+60dB of gain with -20dB pad for line level sources.12 Line OutsBalanced, relay protected line outputs on XLR.Expander & Monitor PortsDedicated ports for connection to an AR84 or AB168, and to the ME Personal Mixing System.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Put It Where You Need ItThe AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning and includes rack ears for mounting in a 3U 19″ rack space.The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.8 Mic Preamps+60dB of gain with -20dB pad for line level sources.4 Line OutsBalanced, relay protected line outputs on XLR.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Put It Where You Need ItThe AR84 can be placed up to 100m away from the mixer for maximum flexibility of positioning, and is fitted with rack ears for installation in a 1U 19″ rack space. The AR84 connects over a single Cat5 cable to the mixer or upstream Expander.

AvantisHardware:• Two 15.6” Full HD touchscreens• 24 assignable SoftKeys• 24 faders, 6 layers• 12 Analog/1 stereo AES Inputs• 12 Analog/2 stereo AES Outputs• 2 I/O Ports (128×128)Mix Engine:• 64 Input Channels• 42 Busses• 12 RackExtra FX

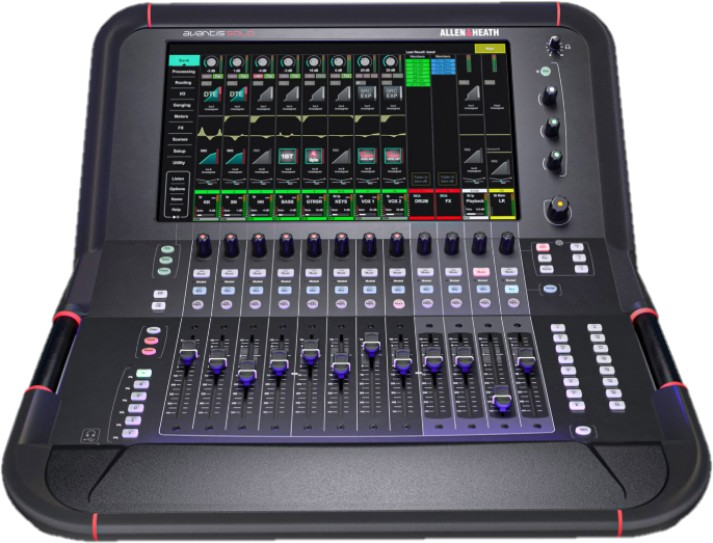

Avantis SoloHardware:• 15.6” Full HD touchscreen• 18 assignable SoftKeys• 12 faders, 6 layers• 6 Analog/1 stereo AES Inputs• 6 Analog/1 stereo AES Outputs• 2 I/O Ports (128×128)Mix Engine:• 64 Input Channels• 42 Busses• 12 RackExtra FX

Avantis Solo UltraHardware:15.6” Full HD touchscreen 18 assignable SoftKeys 12 faders, 6 layers 6 Analog/1 stereo AES Inputs 6 Analog/1 stereo AES Outputs 2 I/O Ports (128×128)Mix Engine:96 Input Channels56 Busses24 Dyn8DEEP Preamp, Compressor & Expander ModelsNEQ128 RackUltra FX12 RackExtra FXAvantis is a 64 channel / 42 configurable bus mixer platform, expandable to 96 channel / 56 configurable bus, featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing and effects from our flagship dLive mixing system.

Avantis UltraHardware:Two 15.6” Full HD touchscreens24 assignable SoftKeys24 faders, 6 layers12 Analog/1 stereo AES Inputs12 Analog/2 stereo AES Outputs2 I/O Ports (128×128)Mix Engine:96 Input Channels56 Busses24 Dyn8DEEP Preamp, Compressor & Expander ModelsNEQ128 RackUltra FX12 RackExtra FXAvantis is a 64 channel / 42 configurable bus mixer platform, expandable to 96 channel / 56 configurable bus, featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing and effects from our flagship dLive mixing system.

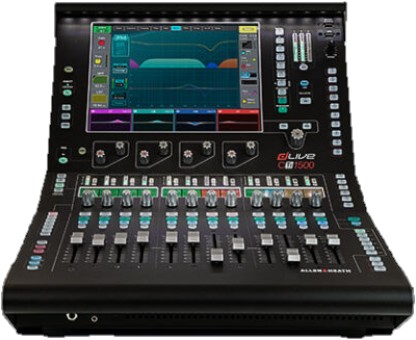

Allen & Heath dLive C1500 SurfaceDas Allen & Heath dLive C1500 ist eine kompakte C Class Digital-Mischoberfläche zur Steuerung eines dLive MixRacks. Mit 12 Fadern, einem 12-Zoll-Touchscreen und 19 frei belegbaren SoftKeys bietet die C1500 eine platzsparende und flexibel konfigurierbare Bedienoberfläche für professionelle Live-, Touring-, Theater- und Installationsanwendungen.Mit einer Breite für die 19-Zoll-Rackmontage eignet sich die C1500 besonders für Anwendungen, bei denen eine kompakte und fest installierbare Bedienlösung gefragt ist. Die integrierte Stromversorgung ermöglicht eine direkte Integration in das dLive-System.Umfangreiche SchnittstellenDie C1500 verfügt über einen I/O-Port mit bis zu 128 Kanälen bei 96 kHz, zwei Netzwerkanschlüsse sowie Wordclock BNC Ein- und Ausgang. Über den DX-Link kann das System um zusätzliche Ein- und Ausgänge erweitert werden.Zusätzlich stehen 6 Mic/Line-Eingänge und 6 Line-Ausgänge zur Verfügung. Für digitale Audiosignale bietet die C1500 jeweils einen AES3-Digitaleingang und einen AES3-Digitalausgang. Ein Videoausgang ermöglicht die Anbindung eines zusätzlichen Displays.Die Verbindung zum dLive MixRack erfolgt über gigaACE. Dedizierte Schnittstellen und Bedienelemente ermöglichen die Integration in professionelle dLive-Systeme.Flexible BedienoberflächeDie Oberfläche der C1500 lässt sich an den individuellen Workflow und die jeweilige Mixing-Anwendung anpassen. Eingänge und Mixes können frei auf Fader-Bänke und Layer verteilt werden. Virtuelle Scribble Strips ermöglichen die übersichtliche Benennung und farbliche Kennzeichnung der Kanäle.Mit 19 frei belegbaren SoftKeys stehen zahlreiche individuell zuweisbare Steuerfunktionen zur Verfügung. Auf dem 12-Zoll-Touchscreen können außerdem frei konfigurierbare Widget-Bereiche eingerichtet werden, beispielsweise für Szenen, Pegelanzeigen, RTA, Effekte und weitere Steuerfunktionen.19-Zoll-RackmontageDurch das kompakte Format und die Möglichkeit zur 19-Zoll-Rackmontage lässt sich die C1500 platzsparend in bestehende System- und Installationsumgebungen integrieren. Damit eignet sie sich besonders für Anwendungen, bei denen eine reduzierte Bedienoberfläche bei gleichzeitig umfangreicher Systemanbindung benötigt wird.Multi-Surface-BetriebIm Multi-Surface-Betrieb lassen sich bis zu vier dLive Surfaces an einem einzelnen DM MixRack beziehungsweise bis zu zwei Surfaces an einem CDM MixRack betreiben. Dies ermöglicht unter anderem paralleles Mixing, Sub-Mixing sowie getrennte FOH- und Monitor-Konfigurationen mit einem gemeinsamen MixRack.C Class und S Class Surfaces können dabei miteinander kombiniert werden, sodass sich unterschiedliche Bedienoberflächen innerhalb eines dLive-Systems einsetzen lassen.Technische Highlights12 Fader1 × 12-Zoll-Touchscreen19 frei belegbare SoftKeys19-Zoll-RackmontagegigaACE-Verbindung zum MixRackDX-Link zur I/O-Erweiterung1 I/O-Port mit 128 Kanälen bei 96 kHz2 NetzwerkportsWordclock BNC I/OVideoausgang6 Mic/Line-Eingänge6 Line-Ausgänge1 AES3-Digitaleingang1 AES3-DigitalausgangIntegrierte StromversorgungFrei konfigurierbare Fader-Bänke und LayerKonfigurierbare Widget-BereicheMulti-Surface-Betrieb
