LYNX pro-audio IONIC-5CX 5" Coaxial 70° passiv outdoor Speaker
Produktinformationen "LYNX pro-audio IONIC-5CX 5" Coaxial 70° passiv outdoor Speaker"
The Ionic-5CXv is a passive coaxial speaker ideal for outdoor installations. This ultra-compact cabinet features a double polyurea coating, aluminium grill, polyester foam protection, glamp connectors and weatherproof speaker cones.
The Ionic-5CXv uses a 5” coaxial speaker (1.5” LF voice coil and 1” HF voice coil) offering a coverage of 70º conical dispersion and 117dB SPL (300 W program).
Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.
The Ionic-5CXv is powered from the subwoofer unit ionic-12S which includes a Digital Signal Processor offering different presets to cover a wide range of sound applications. It can also be powered from an external amplifier using the ARK optimised preset.
The Ionic cabinets are compact, modular and powerful and the complete series also includes two sub units and four column models.
Components | 1 x 5″ coaxial speaker with LF 1.5″ and HF 1″ voice coil |
| Frequency Range | 64 Hz – 20 KHz (-10dB) |
Frequency Response | 90 Hz – 18 KHz (± 3dB) |
| Sensitivity | 93 dB (1W@1m) |
Max SPL* | 114 dB – 120 dB |
| Coverage | 70º conical dispersion |
Power | 150 W AES (300 W program, 600 W peak) @ 8 Ω |
| Operating mode | 8 Ω / 100 V: 100 W / 75 W / 50 W selectable |

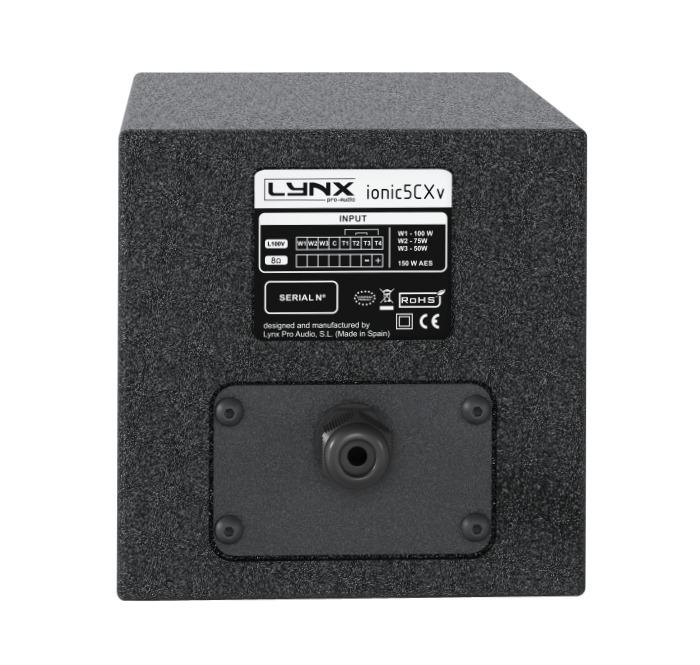

Connectors | In: Euroblock terminal |
| Finish | Polyurea coating, high grade resistant paint |
Material | 10 mm premium birch plywood |
| Dimensions | 152 x 152 x 221 mm (H x W x D) |
Weight | 3 Kg (6.6 lbs) |
*Calculated maximum SPL basen on rated peak power and measured sensitivity.
