LYNX pro-audio IXP-6 1x6.5"100°conic 113dB 200W weiß Deckeneinbau Lautsprecher
Produktinformationen "LYNX pro-audio IXP-6 1x6.5"100°conic 113dB 200W weiß Deckeneinbau Lautsprecher"
The IXP-4 is an in-ceiling loudspeaker delivering great sound performance. It features a 4” woofer + 0.75” tweeter with a conical horn. It uses a high quality 100V / 70V Line transformer that offers a selection of 30/15/7.5W ( 3.75W @ 70V) delivered to the louspeaker system using high impedance lines or 8Ω bypass.
The baffle and bezel are constructed from white ABS, the rear enclosure made in steel with black finish and adds damping material, providing an optimum internal volume for extended low-frequency performance together with the 2 bass ports situated on the front.
A rear cover, with provision for a junction box fitting provides access to a 4 pin terminal euroblock with loop-through for an easy power connection, also included is a point for safety steel wire and a cable glamp press ensuring the connection.
The frameless grill has a discrete design offering the possibility to paint easily if required.
Thanks to the 6 neodymium points the grill can be removed without the need of any tools allowing the user to easily access the front wattage selector switch enabling quick adjustment of 70V/100V tap levels.
Components | 4” 100mm polypropylene cone |
| Frequency Range | 90 – 20.000 Hz |
Rated Power | 30W (8 Ω) 120W Peak |
| Transformer Taps | 100V 30 / 15 / 7.5 / 3.75W 70V 30 / 15 / 7.5 / 3.75 / 1.9W Low Impedance 8Ω |
Max SPL | 8Ω 102dB100V / 70V 102dB |
| Sensitivity | 87 dB 1W / 1m @ Zn average 400 Hz to 8KHz |
Nominal Impedance | 8 Ω |
| Nominal Coverage | 100º Conical Dispersion |
Recommended Signal processing | 100 Hz, at 24 dB per octave high pass filter |
| Crossover Frequency | 5500 Hz 12dB/octave HP/LP filter |
Input connection | 4 poles Euroblock connector with loop-through |
| Enclosure material | Baffle ABS, backcan steel black finish |
Grille | Powder coated steel, white finish, paintable |
| Controls | Front-face wattage / low impedance selector switch |
Mounting / Rigging provisions | 4 Rotating Mounting tabs (dog ears) |

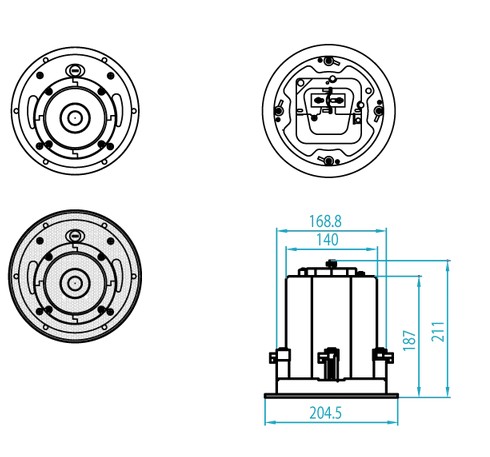

| Dimensions H x Diameter | 188 mm x 204.5 mm (7.4 in x 8 in) |
Cut out size | 168 mm (6.6 in) |
| Net weight | 2.6 Kg (5.7 lbs) |
