- LF: 8”, 2” voice coil - HF: 1”, compression Driver- 65 Hz – 20 kHz- 118 dB 124 dB Peak- Power RMS power of 28-0W and a peak 600W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 280W RMS / 600W peak- 230V ~ / 50Hz mains power supply- Weight 12 Kg - Dimensions 435 x 245 x 295 mm (H x W x D)
- LF: 10”, 2” voice coil - HF: 1”, compression Driver- 65 Hz – 20 kHz- 119 dB 125 dB Peak- Power RMS power of 28-0W and a peak 600W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 280W RMS / 600W peak- 230V ~ / 50Hz mains power supply- Weight 12 Kg - Dimensions 545 x 355 x 295 mm (H x W x D)
- LF: 15”, 3” voice coil - HF: 1,35”, compression Driver- 45 Hz – 20 kHz- 125 dB 131 dB Peak- Power RMS power of 450W and a peak 1000W- Class D | DSP Filters- Receiver-TWS Stereo Pairing Control- LCD Display, Encoder and push button- 2 balanced Combo Jack/XLR inputs with MIC/LINE selector - adjustment level for each input.1 3.5mm mini-jack AUX input- Balanced XLR LINE-level output- 90º x 60º- 35mm (2-position) speaker stand socket and 45º angled wedge for stage monitoring- 450W and a peak 1000W- 230V ~ / 50Hz mains power supply
Extremely compact & powerful 3-way, self-powered (2800 W Class-D with PFC), DSP integrated coaxial line array element. Dual high power 8″ neodymium transducers and a unique 8″ dual diaphragm coaxial planar wave driver.- Extraordinary power-to-size ratio- Unique 8” dual diaphragm planar wave driver- Perfect acoustical coupling of individual units to create virtually continuous line source & excellent phase coherence- Extended bandwith (65 Hz – 22 KHz)- Integrated Digital processor (64 bit / 96 KHz) with FIR linear phase filtering- Perfect Time Alignment avoiding Multi-Source Interference problems- Ergonomic design in premium birch plywood & finished in polyurea- 2.8” IPS display with multifunction joystick control
The GXR-12 enclosure is a multipurpose full-range self-powered that stands out for its high performance. It does not need to carry an external amplification rack and is ideal for a wide variety of applications, both in fixed installations and portable applications since its trapezoidal design allows it to function even as a stage monitor.Consists of a 12”(2.5”voice coil) transducer with a 1”compression driver with a polyimide diaphragm mounted on a 90ºH x 40ºV precise directivity horn. DSP (FIR Filters) controlled with 1400W amplification, 127dB SPL. This system can be controlled online in real time.A complete range of accessories facilitate its use on tripod, wall hanging, ceiling, satellite mode, etc. To facilitate its transport, a robust flight case is available where two enclosures can be found next to its wiring. There is also a practical nylon case available.ComponentsLF: 12″ 2,5″ voice coil, Malt Cross Cooling SystemHF: 1″ Exit compression Driver , 1,75″ aluminium voice coilFrequency Range60 Hz – 20 KHz (-10dB)Frequency Response66 Hz – 18 KHz (± 3dB)Max SPL127 dBCoverage Angle90º x 40º constant directivity horn. RotatablePower1400W Class D with switching power supply & PFCLF Amplifier1 x 800 WHF Amplifier1 x 600 WProcessingInternal Lynx Processor DSPB-FL.96 KHz / 64 bit double-precision, DSP with FIR filter linear phaseControlUser control interface with 2.8″ IPS screenControl ConnectionsEthernet (optional) / USB (DSP programming)InputAnalog / AES3 (optional)AC Power90 – 264V. 50/60 Hz with PFCAC Connections16A Neutrik powerCon TRUE1 TOP with looping outputFinishPolyurea coating, black colourMaterial15 mm premium birch plywoodDimensions639 x 370 x 386 mm (H x W x D)Weight23.5 kg (51.7 lbs)
The GXR-18S model is a self-powered subwoofer enclosure specially designed to reinforce the low frequencies of the full range models of the GXR series. You do not need to carry an external amplification rack and it is an excellent option for subwoofer reinforcement in general.The enclosure has 1400 W class D amplifier switching power supply, with DSP processor. This system can be controlled online in real time and stands out for its high performance, with an excellent power-size ratio.For portable applications, a wheel kit is available to facilitate transportation. It can also be covered with a practical nylon sheath that protects the box during transport and storage.ComponentsLF: 1 x 18″. 3″ voice coilFrequency Range38 Hz – 140 Hz (-10dB)Frequency Response44 Hz – 125 Hz (± 3dB)Max SPL132 dBCoverage AngleOmnidirectionalPower1400W Class D with switching power supply & PFCLF Amplifier1 x 1400 WProcessingInternal Lynx Processor DSPB-FL.96 KHz / 64 bit double-precision, DSP with FIR filter linear phaseControlUser control interface with 2.8″ IPS screenControl ConnectionsEthernet optional / USB (DSP programming)InputAnalog / AES3 (optional)AC Power85 – 270V. 50/60 Hz with PFCAC Connections16A Neutrik powerCon TRUE1 TOP with looping outputFinishPolyurea coating, black colourMaterial18 mm premium birch plywoodDimensions505 x 505 x 700 mm (H x W x D)Weight41 kg (90 lbs
High Output, self-powered (Class D switch modepower supply), two-way cabinet. Consists of a12" (4" voice coil) neodymium magnet transducerwith nomex cones and a 1.4" compression driverwith a 4" titanium diaphragm mounted on a 80ºHx 50ºV constant directivity rotatable horn.DSP controlled with 1500W amplification,136dB SPL.LF/MF 1 x 12" neodymium (4" Interleaved Sandwichvoice coil) + HF 1.4" titanium diaphragm driverFrequency range: 60 Hz - 20 KHzFrequency Response: 65 Hz - 18 KHz ± 3 dBMax. SPL: 133 dB / 136 peak 1w @ 1mCoverage angle: 80º H x 50º V Rotatable hornPower Amplifier: 1500 W Class DLF/MF amplifier: 1 x 750 WHF amplifier: 1 x 750 WProcessing: Lynx DSPB-22Internal Controls: Temperature sensor,Online Monitoring systemControl Connections: XLR / Ethernet (OMS)optional, USB (DSP programming)AC Power: 230V /115V selectable. 50/60 Hz 5AAC Connections: 16A Neutrik Powerconwith link outputMaterial: 15mm Premium birch plywoodFinish: High resistant water-based black paintDimensions (H x W x D): 637x376x411mmWeight: 28 kg (62 lb)
The BS-112 is a compact, band pass passive subwoofer cabinet designed to extend low frequency support to the four BS Series full range cabinets.The 12" (3" voice coil) driver offers high power handling and high sensitivity with low distortion and ultra low air noise. The cone is waterproof and rubber suspension has been treated on both sides and has been optimized for direct radiation subwoofer applications.Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with pole mount fitting so that it can be used with any of the four full range cabinets. We recommend that the cabinet presets are applied for maximum optimization and performance.Technical DataComponents: LF: 12" speaker, 3" ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sidesFrequency Range: 40 Hz - 90 Hz (-10dB)Sensitivity: 93 dBMax SPL/Peak*: 120 dB / 126 dBRated Power: 500W AES (1000W program, 2000W peak)Dispersion: QuasiomnidirectionalNominal Impedance: 8 OConnectors: 2 X NEUTRIK Speakon NL4Finish: Polyurea coatingMaterial: 15 mm premium birch plywoodDimensions: 406 x 655 x 400 mm (H x W x D)Weight: 29 Kg (63.9 lbs)Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly pointsAccessories: M-20 connector pole, M-10 eyeboltEnclosure type: Band pass subwoofer* Calculated maximum SPL based on rated peak power and measured sensitivity

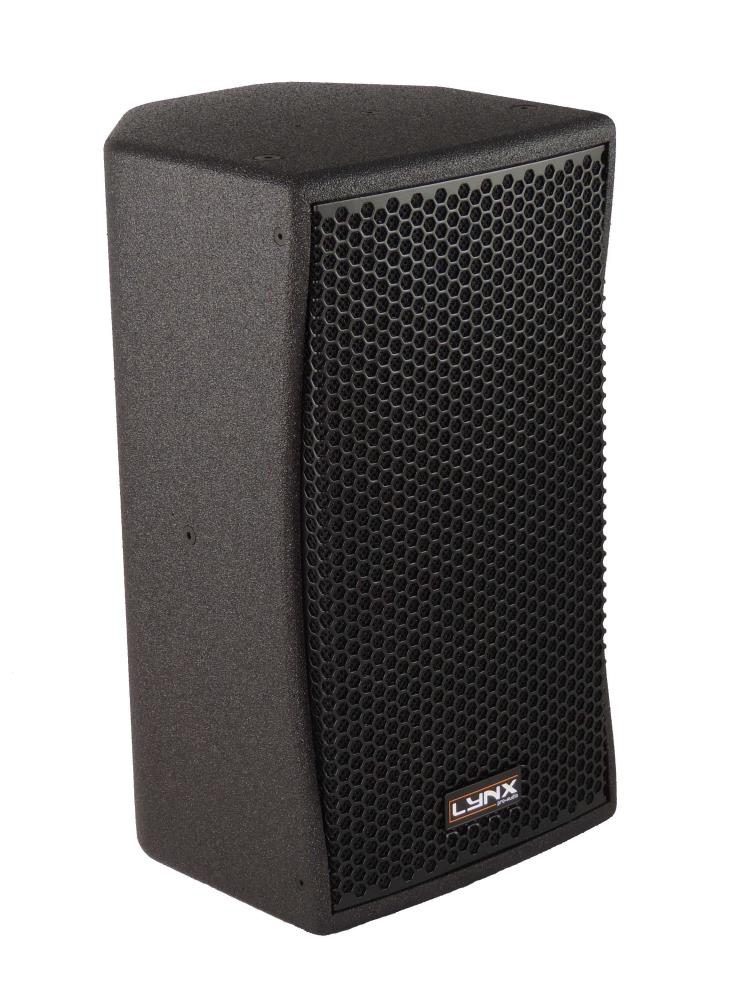

The BS-8 is a compact, two-way passive cabinet. Consists of a 8" (2" voice coil) LF transducer and a 1" HF driver mounted on a 90º x 60º rotable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.The 8" driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1" HF driver delivers high sensitivity with a PETP diaphragm. The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances.Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-8 can be used without a processor we recommend that the cabinet presets are applied for a maximum optimization and performance.Technical Data Components: LF: 8" speaker, 2" ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sidesHF: 1" exit throat, (25 mm) voice coil, PETP dome compression driverFrequency Range: 70 Hz - 18 KHz (-10dB)Sensitivity: 93 dBMax SPL / Peak*: 118 dB / 124 dBRated Power: 300 W AES (600 W program, 1200 peak)Dispersion: 90º x 60º rotatableNominal Impedance: 8 OConnectors: 2 X NEUTRIK Speakon NL4 Pin connections: +1 / -1 input +1 / -1 linkFinish: Polyurea coatingMaterial: 15 mm Premium birch plywoodDimensions: 456 x 255 x 259 mm (H x W x D)Weight: 12 Kg (26.4 lbs)Fittings: 5 x M8, single pole-mount, ergonomic handle on the back positionAccessories: U bracket horizontal & vertical, M8 eyebolts, wall bracket, M20 poleEnclosure Type: Multi angle enclosure* Calculated maximum SPL based on rated peak power and measured sensitivity
voraussichtliche Lieferzeit 8 Tage
Preis inkl. MwSt., zzgl. Versandkosten

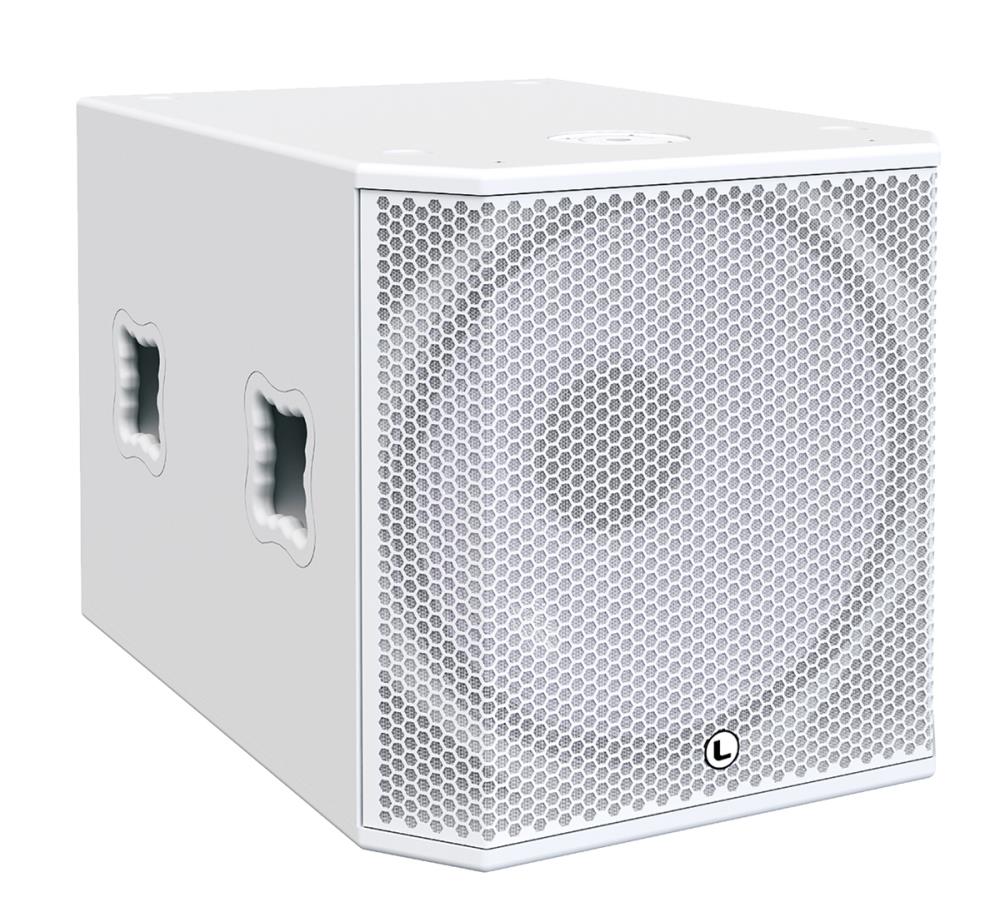

1 x 18" speaker with 3" voice coil, 38 Hz - 250 Hz (-10dB), 42 Hz - 250 Hz (± 3dB), 132 dB, Omnidirectional, 2800 W Class D with switching power supply & PFC, 1 x 1400 W, 1 x 1400 W @ 8 Ohms / 2 x 700W @ 4 Ohms,96 KHz / 64 bit double precision DSP, User control interface with LCD, Ethernet (OCS) optional / USB (DSP programming), 85 - 270V. 50/60 Hz with PFC,16A Neutrik powerCon TRUE1 with looping output, High resistant water-based paint,15mm Premium birch plywood, 513 x 505 x 704 mm, 37 Kg (81.5 lbs)
voraussichtliche Lieferzeit 8 Tage
Preis inkl. MwSt., zzgl. Versandkosten
