LYNX pro-audio GXR-18S 1 x 18" 1400W, Class D, DSP Subwoofer aktiv self powered
Produktinformationen "LYNX pro-audio GXR-18S 1 x 18" 1400W, Class D, DSP Subwoofer aktiv self powered"
The GXR-18S model is a self-powered subwoofer enclosure specially designed to reinforce the low frequencies of the full range models of the GXR series. You do not need to carry an external amplification rack and it is an excellent option for subwoofer reinforcement in general.
The enclosure has 1400 W class D amplifier switching power supply, with DSP processor. This system can be controlled online in real time and stands out for its high performance, with an excellent power-size ratio.
For portable applications, a wheel kit is available to facilitate transportation. It can also be covered with a practical nylon sheath that protects the box during transport and storage.
Components | LF: 1 x 18″. 3″ voice coil |
| Frequency Range | 38 Hz – 140 Hz (-10dB) |
Frequency Response | 44 Hz – 125 Hz (± 3dB) |
| Max SPL | 132 dB |
Coverage Angle | Omnidirectional |
| Power | 1400W Class D with switching power supply & PFC |
LF Amplifier | 1 x 1400 W |
| Processing | Internal Lynx Processor DSPB-FL. 96 KHz / 64 bit double-precision, DSP with FIR filter linear phase |
Control | User control interface with 2.8″ IPS screen |
| Control Connections | Ethernet optional / USB (DSP programming) |
| Input | Analog / AES3 (optional) |
AC Power | 85 – 270V. 50/60 Hz with PFC |
| AC Connections | 16A Neutrik powerCon TRUE1 TOP with looping output |
Finish | Polyurea coating, black colour |
| Material | 18 mm premium birch plywood |

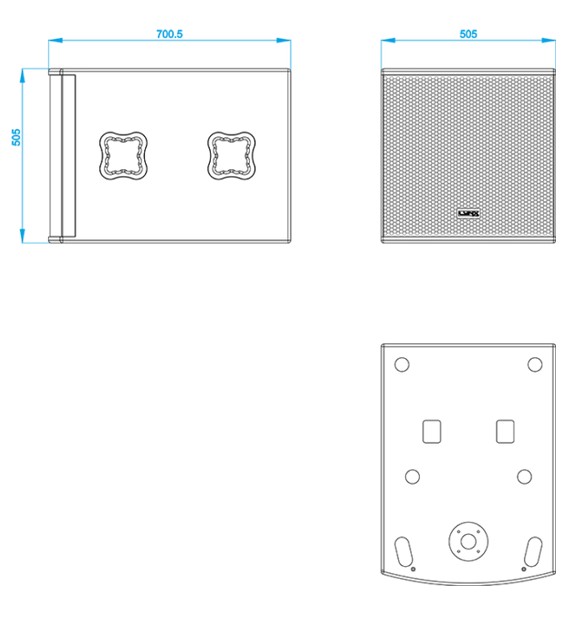

Dimensions | 505 x 505 x 700 mm (H x W x D) |
| Weight | 41 kg (90 lbs |
