LynxPA BS-112 Subwoofer 12" 126dB schwarz
Produktinformationen "LynxPA BS-112 Subwoofer 12" 126dB schwarz"

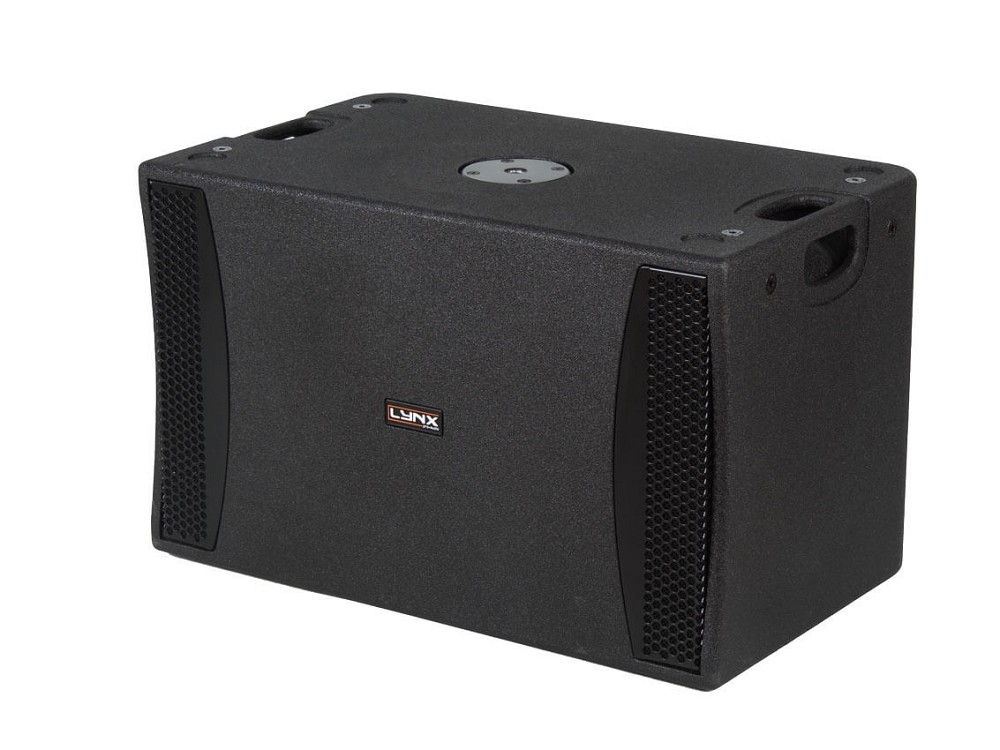

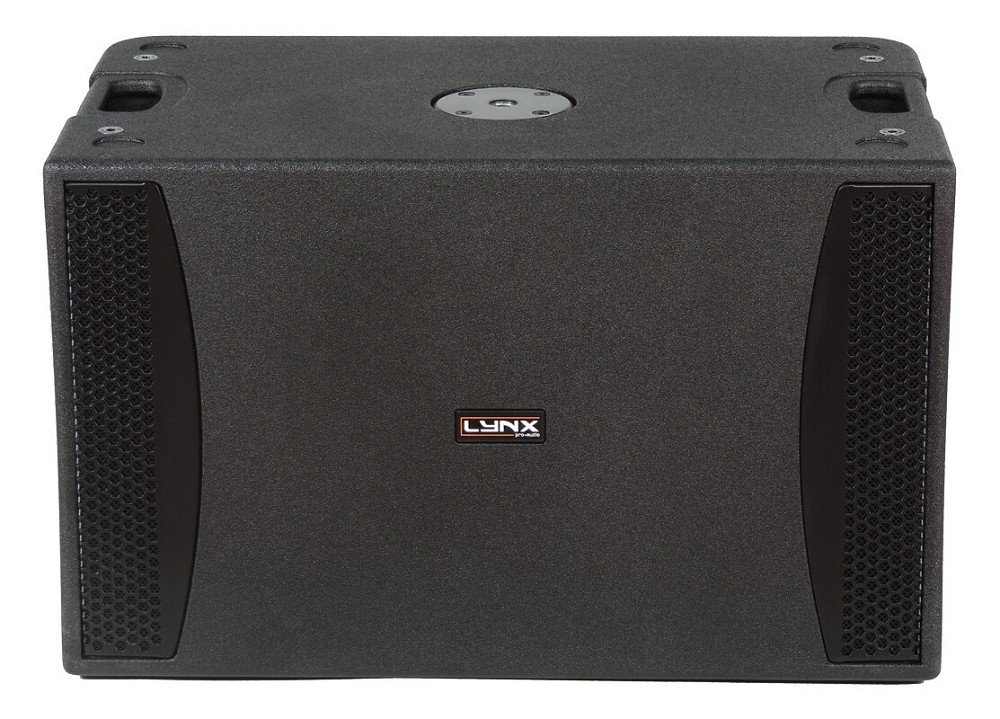

The BS-112 is a compact, band pass passive subwoofer cabinet designed to extend low frequency support to the four BS Series full range cabinets.
The 12" (3" voice coil) driver offers high power handling and high sensitivity with low distortion and ultra low air noise. The cone is waterproof and rubber suspension has been treated on both sides and has been optimized for direct radiation subwoofer applications.
Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with pole mount fitting so that it can be used with any of the four full range cabinets. We recommend that the cabinet presets are applied for maximum optimization and performance.
Technical Data
Components: LF: 12" speaker, 3" ( 75 mm) copper wire voice coil, Waterproof cone with treatment on both sides
Frequency Range: 40 Hz - 90 Hz (-10dB)
Sensitivity: 93 dB
Max SPL/Peak*: 120 dB / 126 dB
Rated Power: 500W AES (1000W program, 2000W peak)
Dispersion: Quasiomnidirectional
Nominal Impedance: 8 O

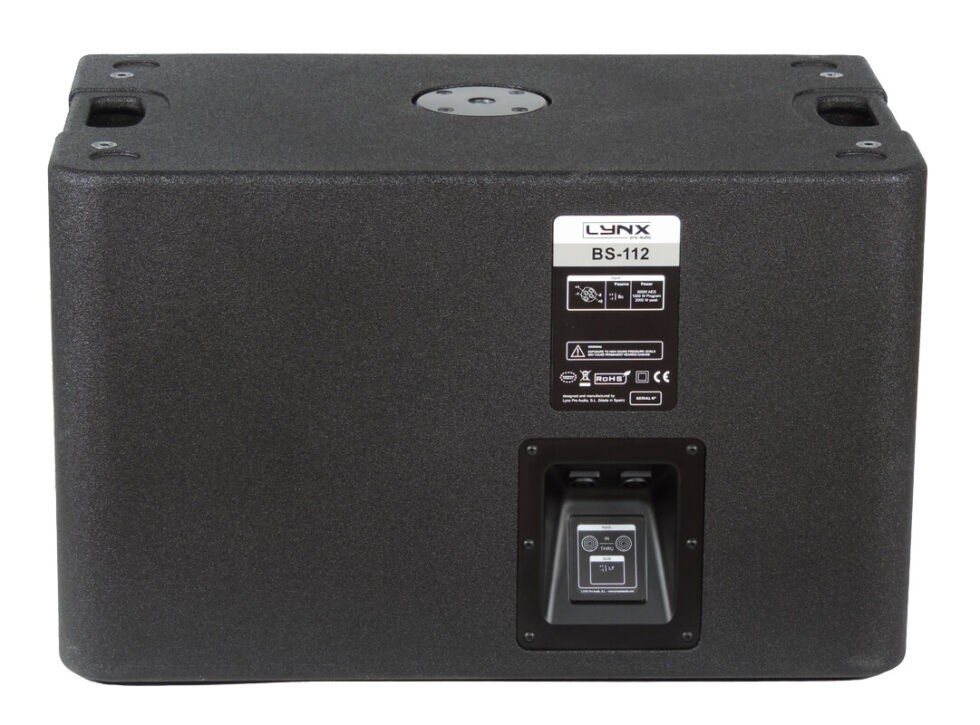

Connectors: 2 X NEUTRIK Speakon NL4
Finish: Polyurea coating
Material: 15 mm premium birch plywood

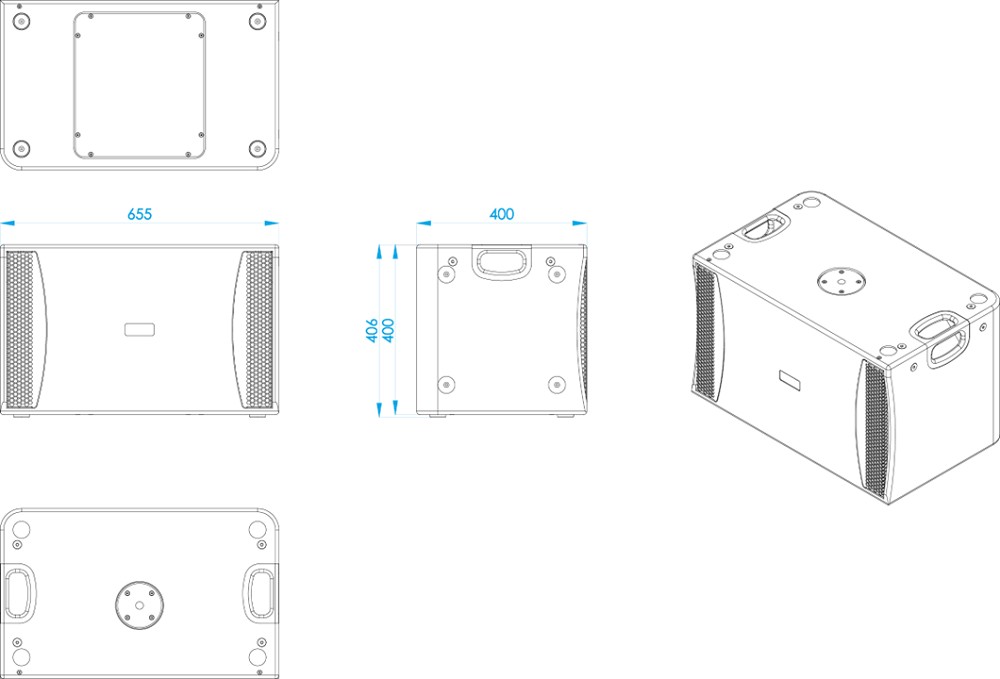

Dimensions: 406 x 655 x 400 mm (H x W x D)
Weight: 29 Kg (63.9 lbs)
Fittings: 2 integrated ergonomic handles, 4 rubber feets right side for vertical install, M-10 fly points
Accessories: M-20 connector pole, M-10 eyebolt
Enclosure type: Band pass subwoofer
* Calculated maximum SPL based on rated peak power and measured sensitivity
| Lautsprecherart: | Installationslautsprecher, Passiv-Lautsprecher, Subwoofer |
|---|---|
| Leistung (RMS) in Watt: | 500 |
| Leistung (Peak) in Watt: | 2000 |
| Impedanz in Ohm: | 8 |
| Anzahl Tieftöner: | 1 |
| Tieftöner in Zoll: | 12 |
| Gewicht (kg): | 29 |
| Farbe: | Schwarz |
