RADIAL DiNET DAN-RX 2-Channel Dante Network Receiver interface
Produktinformationen "RADIAL DiNET DAN-RX 2-Channel Dante Network Receiver interface"
Compact Dante network interface

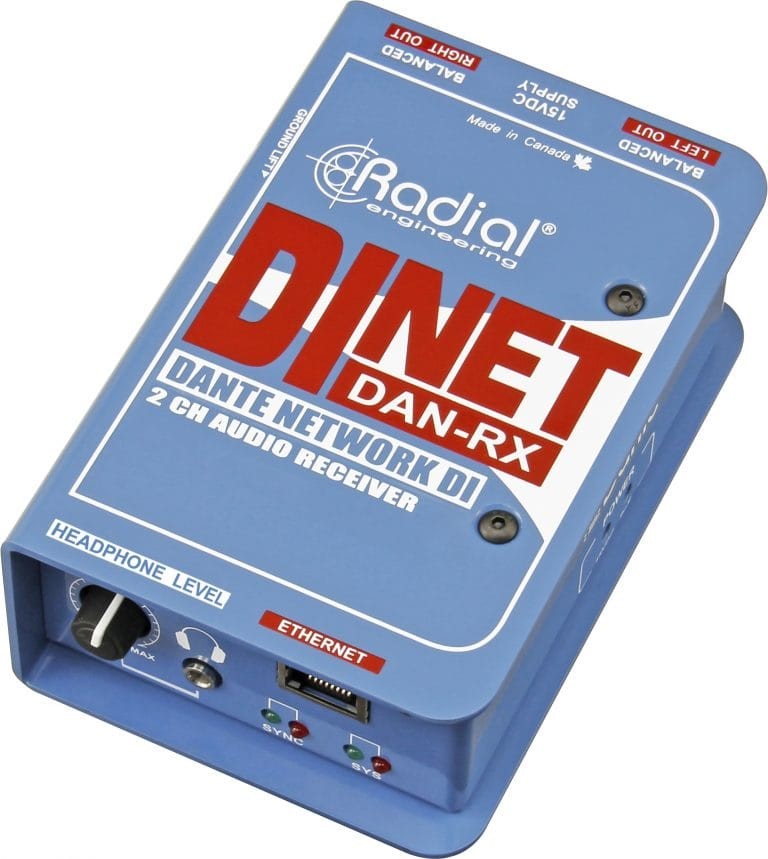

The Radial DiNET DAN-RX is a 2-channel Dante™ endpoint that allows you to easily output balanced audio from a Dante enabled network.
- Stereo analog output device for Dante networks

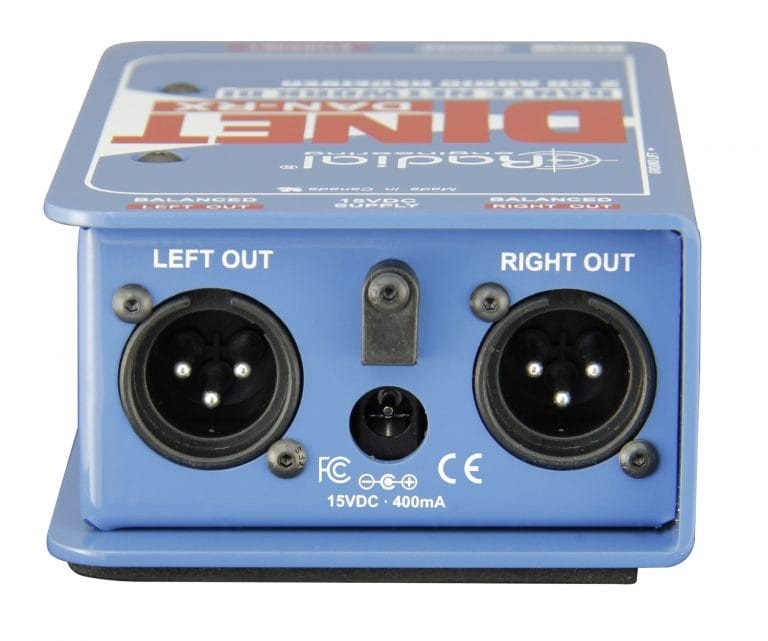

- Balanced XLR outputs for connection at mic or line level

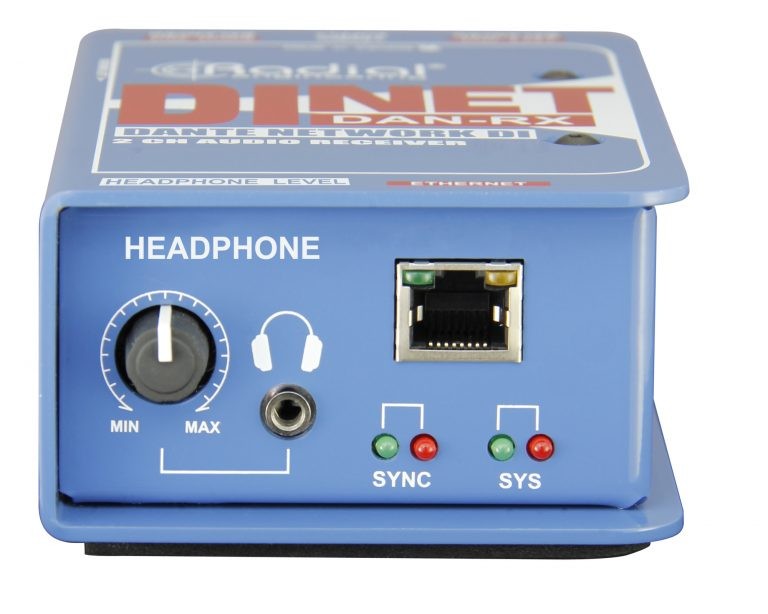

- Headphone amplifier for personal monitoring
- 24bit/96kHz digital to analog conversion
Effortless digital audio distribution

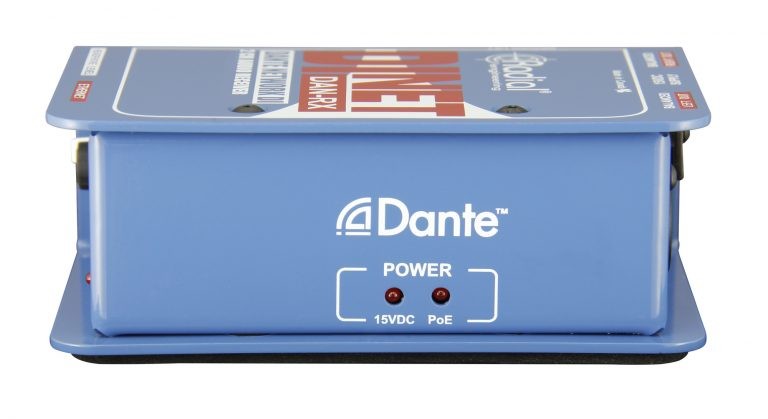

The DAN-RX provides a simple way to take a stereo feed from a Dante network and convert it to analog audio for monitoring in any location. Balanced XLR outputs allow you to connect to professional audio equipment such as a mixing console, amplifier, or a pair of powered speakers. In addition, a local 3.5mm headphone output is equipped with its own level control to test audio before connection to the PA system or to monitor locally with headphones, making it useful in events that use personal monitor systems. The DAN-RX can be powered from an included external supply or any Power over Ethernet (PoE) network switch, and both of these options can be used simultaneously to provide redundancy for critical applications.

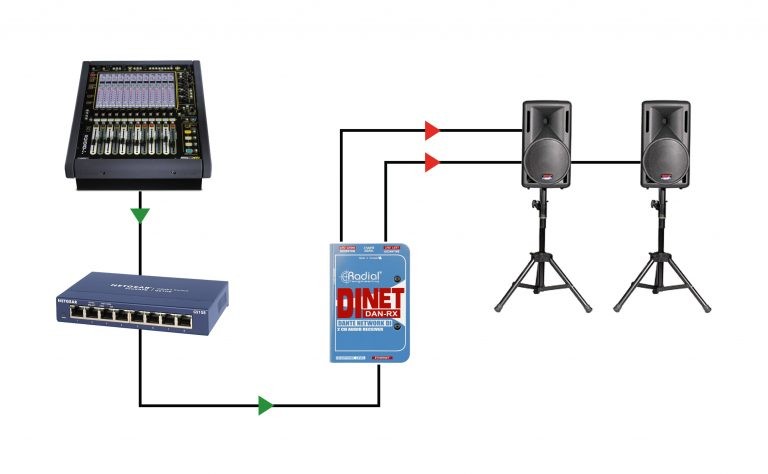

Using the DAN-RX to connect a small PA system
Quickly route a stereo feed to small PA systems in overflow rooms or remote locations within the venue.

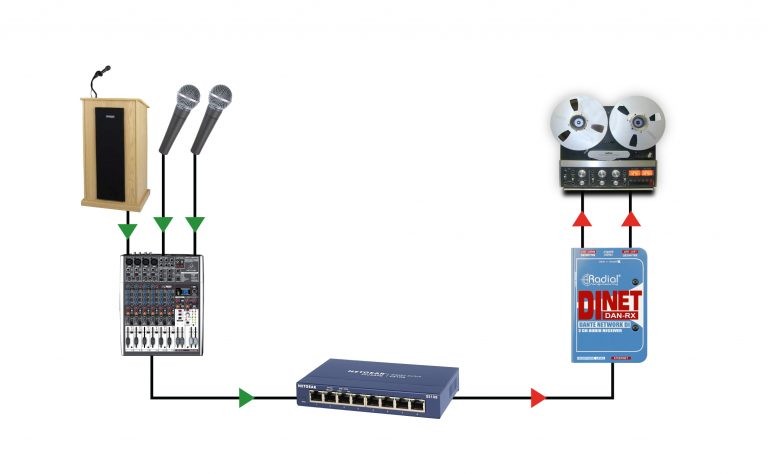

Using the DAN-RX for press distribution
Press recorders are often placed in different rooms away from the live event. The DAN-RX provides an easy way to send audio to these rooms to connect directly to a recorder or to feed a press box when necessary.

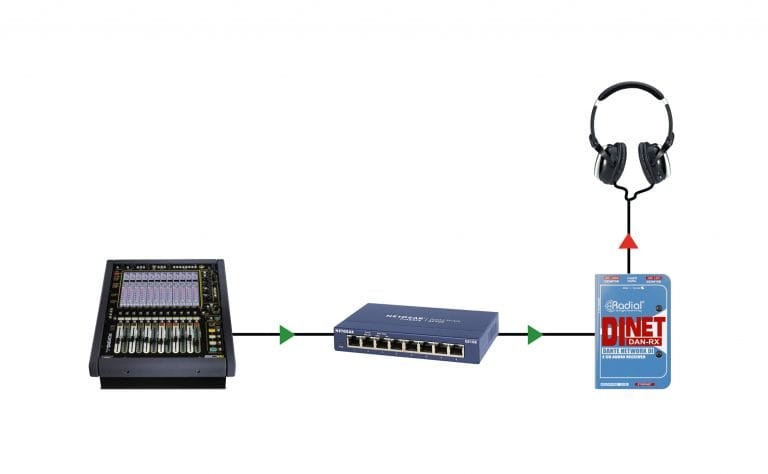

Using the DAN-RX for personal monitoring
The dedicated headphone output on the DAN-RX allows it to be used as a personal monitoring system. The sound engineer can create a unique mix for musicians, producers or any other event staff that need to monitor a feed in any location on the network.
