ALLEN & HEATH Avantis Solo
Produktinformationen "ALLEN & HEATH Avantis Solo"

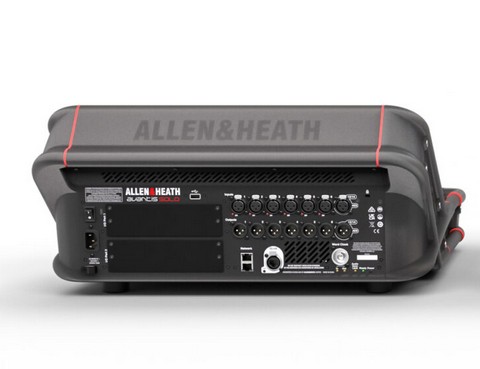

Avantis Solo
Hardware:
• 15.6” Full HD touchscreen
• 18 assignable SoftKeys
• 12 faders, 6 layers
• 6 Analog/1 stereo AES Inputs
• 6 Analog/1 stereo AES Outputs
• 2 I/O Ports (128×128)
Mix Engine:
• 64 Input Channels
• 42 Busses
• 12 RackExtra FX
Anmelden
Produktgalerie überspringen
Zubehör
PROCASE Avantis Solo (Standard mit Trolley) Mixercase
Standard-Mixercase 2-teilig für Allen&Heath Avantis SOLO,Auskleidung mit Hartschaum an Mixer angepasst,schwarzer Patchkasten mit herunterklappbarer Rückwand und Klappdeckel,Haube oben abnehmbar,4 mittlere Butterfly-Verschlüsse,4 mittlere Klappgriffe,Aluminiumrahmen-Kasten,Außenwände aus 7 mm Multiplex-Holz,-> innen mit grauer Gegenzugfolie beschichtet,-> außen mit PVC-Folie beschichtet,-> bei Farbe Phenol Innenfarbe wie Außenfarbe,Kantenschutz mit 30 mm Schenkellänge und Nietrille,mittlere Kugelecken (3x genietet),2 Eckeinbaurollen mit integriertem Ausziehgriff in Haube,geschwärzte Mixerleisten an Caseboden,
ALLEN & HEATH gigaACE
gigaACE enables a low latency 128x128ch 96kHz point-to-point link between dLive or Avantis systems.Plug-and-Play SplitsNo configuration required, just install the card, connect your CAT5e cable and patch your channels.Ultra Low LatencyJust 5 samples (52 us) transport latency between systems equipped with gigaACE.Connect GX4816 to dLiveThe gigaACE card opens up the use of the GX4816 remote expander to dLive systems.Redundant OperationThe gigaACE card supports dual-cable redundant connections.gigaACE is Allen & Heath’s proprietary protocol for transporting Audio and Control over Ethernet.The gigaACE card offers a cost-effective and simple solution for digital split applications. It allows very low latency (52 us) and cable redundancy without any audio dropout. gigaACE can also tunnel the dLive/Avantis control data over the same connection, for example to enable control of either of the two systems via a single laptop.gigaACE is a truly plug ‘n play protocol, so no computer is required for the setup of gigaACE connections. Simply plug the cable between any two dLive/Avantis systems and set the patch and clock settings directly on the mixer.
ALLEN & HEATH Dante 128x128
Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Dante 128×128 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.High-Channel CountProvides 128×128 channels of Dante audio for recording, distribution and splits.AES67 CompatibleSupport for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.DDM ReadyCompatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Add 128 Channels of Dante Audio to Your dLive or AvantisWith 128 channels of bidirectional audio at 96kHz, the Dante 128×128 card is suitable for high channel digital splits between systems, for instance, FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.DT ExpandersDante 128×128 supports our entire range of DT remote expanders.
ALLEN & HEATH superMADI
Adds 128 channels of 96kHz MADI audio, over coaxial and optical, to a dLive or Avantis system.MADI over CoaxFour pairs of BNC connectors support standard 75ohm coaxial cables with switchable 48/96kHz operation per pair.MADI over FibreFor longer cable runs, four SFP slots are provided which can be populated with your choice of SFP transceivers.Redundant OperationEach pair of BNC and SFP can be switched into redundant mode for enhanced security.48/96kHz OperationThe superMADI card offers switchable 48kHz and 96kHz sample rates per link with a choice of Smux or HighSpeed 96kHz modes.superMADI. Super Flexible.Designed to help integrate dLive and Avantis into a wide range of broadcast, live interface and recording scenarios, the superMADI interface card has numerous connectivity possibilities, including 8 BNC connectors and 4 SFP slots for fibre optic transceivers (not included).Both coaxial and optical formats offer up to 128 I/O at 96kHz each, and redundancy and sample rate are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode.The superMADI card can also be used by engineers and rental companies to link to any MADI-enabled third party console, allowing high-channel count digital splits, for example, between FOH and Monitors.
ALLEN & HEATH Waves V3
Add 128 channels of Waves SoundGrid connectivity to a dLive or Avantis system.Waves ProcessingUse your favourite Waves plugins with a dLive or Avantis system. The Waves plugins can run on your computer or a dedicated Waves server,Multitrack RecordingRecord up to 128 tracks of 96kHz audio into your computer via a single ethernet cable.3 SoundGrid PortsThe three sockets on the Waves V3 card can all be connected to different devices for more complex setups.48/96kHz OperationTo interface with your SoundGrid network, Waves V3 supports both 48kHz and 96kHz sample rates.
ALLEN & HEATH Dante 64x64
Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Dante 64×64 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.High-Channel CountProvides 64×64 channels of Dante audio for recording, distribution and splits.AES67 CompatibleSupport for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.DDM ReadyCompatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Add 64 Channels of Dante Audio to Your dLive or AvantisWith 64 channels of bidirectional audio at 96kHz, the Dante 64×64 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.DT ExpandersDante 64×64 supports our entire range of DT remote expanders.
ALLEN & HEATH fibreACE
fibreACE enables a 128x128ch 96kHz point-to-point link between dLive or Avantis systems over CAT cable or multimode fibre optic. It can also be used as a converter, to replace the dLive MixRack to Surface link with fibre optic.Copper ModeCopper mode supports standard CAT5e links up to 100m.Fibre ModeFibre mode supports opticalCON Duo multimode cables up to 500m.Convert ModeAllows a fibre link up to 500m between a dLive Surface and dLive MixRack.Redundant OperationThe fibreACE card supports dual-cable redundant connections in both copper and fibre modes.fibreACE is Allen & Heath’s proprietary protocol for transporting Audio and Control over Ethernet.It allows very low latency and cable redundancy without any audio dropout. It can also tunnel the dLive / Avantis control data over the same connection, for example to enable control of two systems via a single laptop.The fibreACE card offers an ideal solution for digital splits and audio distribution in large scale events and installations, with cable runs up to 500m and industry standard connectors.fibreACE is a truly plug ‘n play protocol, so no computer is required for the setup of fibreACE connections. Simply plug the cable between any two dLive / Avantis systems and set the patch and clock settings directly on the mixer.
ALLEN & HEATH AES3 2in / 8out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.2in / 8outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input
ALLEN & HEATH AES3 4in / 6out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.4in / 6outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES inpu
ALLEN & HEATH AES3 6in / 4out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.6in / 4outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input
ALLEN & HEATH AES3 10out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.10outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)
ALLEN & HEATH DX012
DX012 provides remote output expansion for Qu*, SQ, Avantis and dLive mixers, and for AHM audio matrix processors.12 XLR OutsFlexible switching options between balanced, relay protected analogue and stereo AES digital on outputs 5-12.AES CompatibleAES outputs globally switchable between 44.1kHz,48kHz, 88.2kHz or 96kHz.Redundant & Cascade ModesRedundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Need to get more out of your system?Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.Put It Where You Need ItThe DX012 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 1U 19″ space. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.Flexible Output OptionsThe DX012 provides 12 XLR outputs, with three configuration options:12 analogue line outputs8 analogue line outputs + 4 stereo AES outputs4 analogue line outputs + 8 stereo AES outputs*96kHz Qu models only
ALLEN & HEATH DX164-W
The DX164-W is a wall mountable expander that adds remote I/O to a dLive, Avantis, SQ and Qu* mixers, or to AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.4 Line OutsBalanced, relay protected line outputs on XLR.Redundant and Cascade ModesRedundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Wall or Floor MountThe reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.Put It Where You Need ItThe DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.Flexible Power OptionsThe IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.*96kHz Qu models only
ALLEN & HEATH DX168
The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis, SQ, or Qu* system, or to AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 Line OutsBalanced, relay protected line outputs on XLR.On Stage or In The RackRugged stagebox format with optional rackmount kit available.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in 19-inch racks.Put It Where You Need ItThe DX168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.*96kHz Qu models only
ALLEN & HEATH DX88-P
The DX88 provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM Audio Matrix Processors.8 Ins + OutsEight mic/line inputs with +60dB of gain, phantom power and -20dB pad, and eight line outputs, all on Phoenix/Euroblock connectors.RackmountableA rackmount kit is available for installing two DX88 expanders together. DX88 can also be installed alongside a GPIO or DX Hub with an additional kit.Cascade ModeCascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Easily Add Phoenix / Euroblock Inputs and Outputs via a DX ConnectionDX88 is a 96kHz DX expander enabling convenient placement of 8 mic/line inputs and 8 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get additional analogue audio in and out of a fixed install.Put It Where You Need ItThe DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning.The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.Rack Mount KitAn optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher.The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.
ALLEN & HEATH GX4816
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for Qu*, SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.48 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.16 Line OutsBalanced, relay protected line outputs on XLR.DX PortsA pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Massively Expand Your System I/O!Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.Put It Where You Need ItThe GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.*96kHz Qu models only
ALLEN & HEATH DX HUB
DX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect up to 8 DX expander units.Massively Expand I/OEach of the 4 DX sockets can support up to 2 DX168/DX164-W/DX012 Expanders or 1 DX32 expander.Rack MountableOptional 19-inch rackmount kit available for fixed installations or touring.Redundant ModeA pair of DX Hubs can be used for dual-cable connection to compatible dLive hardware.Single Cable TrunkA single CAT5 run from the DX Hub to your mixer reduces cabling requirements.Your I/O HubDX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units.Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)Simplify Cable RunsDX Hub is particularly suited to Install and Commercial Audio applications and any environment where it is desirable to run a single “trunk” CAT5e cable to the DX Hub from the AHM, dLive, Avantis or SQ system.An optional rack mount kit is available for installation in a 1U 19″ rack space.DX Hub CompatibilityDX Hub can be connected to any AHM, SQ, Qu*, or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module.*96kHz Qu models only
ALLEN & HEATH AB168
AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 XLR Line OutsBalanced, relay protected line outputs on XLR.Expander PortFor daisy-chaining 2 compatible Expanders or connection to ME personal mixers.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the AB168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available for installation in 19-inch racks.Put It Where You Need ItThe AB168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.
ALLEN & HEATH AR2412
AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM audio matrix processors.24 Mic Preamps+60dB of gain with -20dB pad for line level sources.12 Line OutsBalanced, relay protected line outputs on XLR.Expander & Monitor PortsDedicated ports for connection to an AR84 or AB168, and to the ME Personal Mixing System.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Put It Where You Need ItThe AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning and includes rack ears for mounting in a 3U 19″ rack space.The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.
