ALLEN & HEATH AHM-16
With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.16×16 Processing MatrixFlexible routing with configurable processing on all 16 outputs.8×8 Local Analogue I/O8x mic/line inputs and 8x relay protected line outputs on Phoenix connectors.Sound Management ToolsAutomatic Mic MixerANC (Ambient Noise Compensation)Priority Ducking8-band PEQ, dynamics and delay on every input and zoneSpeaker processing with x-over filter, delay, limiter, PEQ and All-Pass FiltersNTP supportEQ Ganging (Relative, Absolute, and Mirrored Controls)Always In ControlIn addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

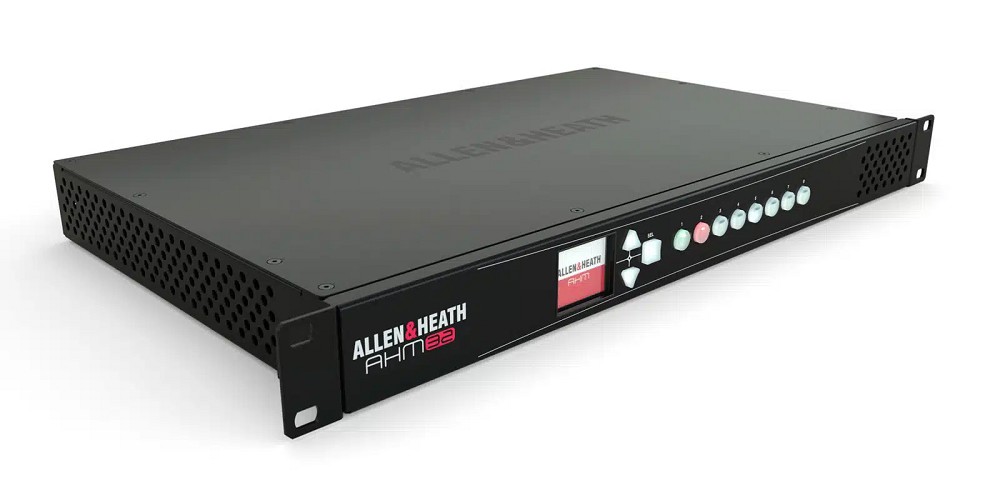

ALLEN & HEATH AHM-32
With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is ideal for multi-room installations in hospitality, corporate and education environments.Features32×32 Processing Matrix12×12 Local Analogue I/OI/O Port for Audio Networking (Up to 128×128)Dante 96kHz Option Card (AES67 and DDM ready)SLink 128×128 Option Card for Audio Expansion32 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing96kHz FPGA Core With Ultra-low LatencyFront Panel Screen and Navigation8x SoftKeysCompatible With IP1, IP6, IP8 Remote Controllers2×2 Local GPIO Plus Networkable GPIO InterfaceTCP/IP Protocol for Third Party IntegrationCrestron, AMX and Extron DriversMac / Windows System Manager SoftwareCustom Control app and Editor for BYOD16 User ProfilesIntegrated Stereo PlaybackEvent Scheduler32×32 Processing MatrixFlexible routing with configurable processing on all 32 outputs.12×12 Local Analogue I/O12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.Audio Networking I/O PortCard options include Dante, MADI, Waves and SLink.Sound Management Tools• 4x Automatic Mic Mixers• ANC (Ambient Noise Compensation)• Priority Ducking• 8-band PEQ, dynamics and delay on every input and zone• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters• NTP support• EQ Ganging (Relative, Absolute, and Mirrored Controls)Always In ControlIn addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

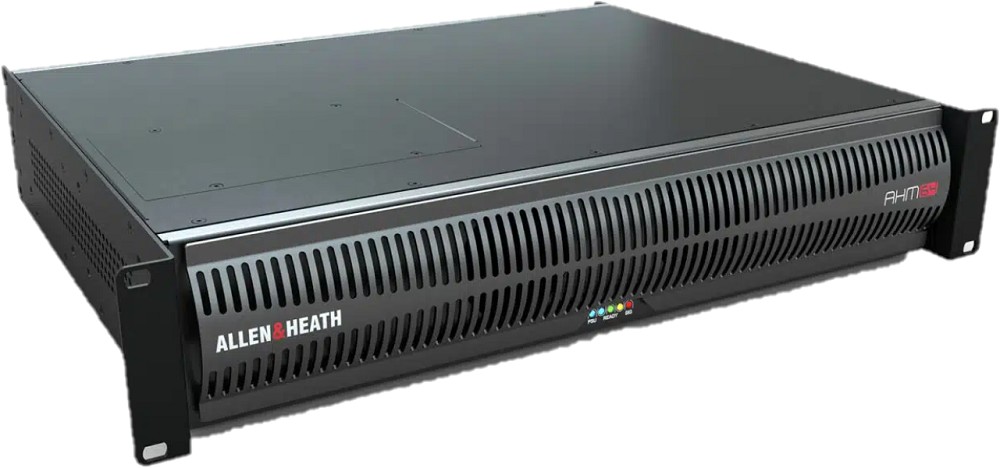

ALLEN & HEATH AHM-64
The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.Features64×64 Processing Matrix12×12 Local Analogue I/OI/O Port for Audio Networking (Up to 128×128)Dante 96kHz Option Card (AES67 and DDM ready)128×128 Built-in SLink Port for Audio Expansion64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing96kHz FPGA Core With Ultra-low LatencyCompatible With IP1, IP6, IP8 Remote Controllers2×2 Local GPIO Plus Networkable GPIO InterfaceTCP/IP Protocol for Third Party IntegrationCrestron, AMX and Extron DriversMac / Windows System Manager SoftwareCustom Control app and Editor for BYOD32 User ProfilesIntegrated Stereo PlaybackEvent SchedulerDC backup power supply64×64 Processing MatrixFlexible routing with configurable processing on all 64 outputs.12×12 Local Analogue I/O12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.Audio Networking I/O PortCard options include Dante, MADI, Waves and SLink.Sound Management Tools• 8x Automatic Mic Mixers• ANC (Ambient Noise Compensation)• Priority Ducking• 8-band PEQ, Dynamics and Delay on every Input and Zone• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters• NTP support• EQ Ganging (Relative, Absolute, and Mirrored Controls)• Processing expansion module
ALLEN & HEATH Avantis
AvantisHardware:• Two 15.6” Full HD touchscreens• 24 assignable SoftKeys• 24 faders, 6 layers• 12 Analog/1 stereo AES Inputs• 12 Analog/2 stereo AES Outputs• 2 I/O Ports (128×128)Mix Engine:• 64 Input Channels• 42 Busses• 12 RackExtra FX
ALLEN & HEATH Avantis Solo
Avantis SoloHardware:• 15.6” Full HD touchscreen• 18 assignable SoftKeys• 12 faders, 6 layers• 6 Analog/1 stereo AES Inputs• 6 Analog/1 stereo AES Outputs• 2 I/O Ports (128×128)Mix Engine:• 64 Input Channels• 42 Busses• 12 RackExtra FX

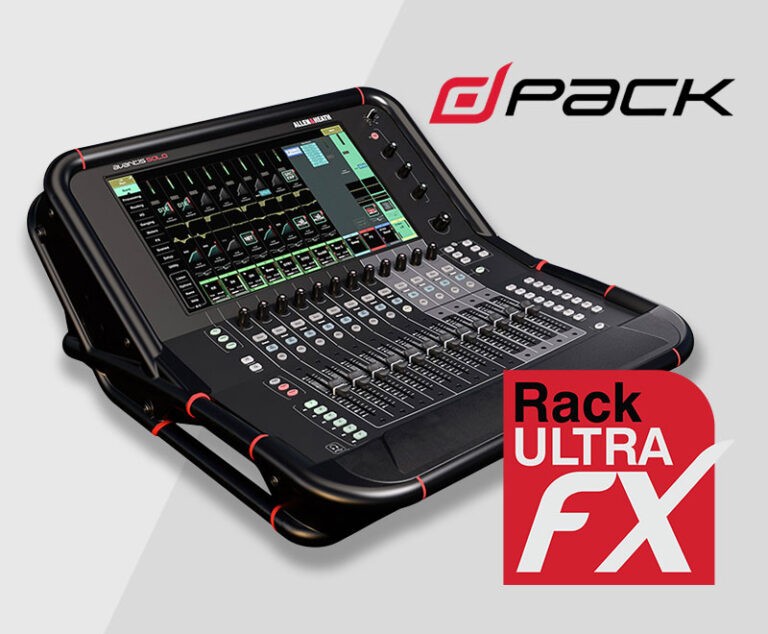

ALLEN & HEATH Avantis Solo Ultra
Avantis Solo UltraHardware:15.6” Full HD touchscreen 18 assignable SoftKeys 12 faders, 6 layers 6 Analog/1 stereo AES Inputs 6 Analog/1 stereo AES Outputs 2 I/O Ports (128×128)Mix Engine:96 Input Channels56 Busses24 Dyn8DEEP Preamp, Compressor & Expander ModelsNEQ128 RackUltra FX12 RackExtra FXAvantis is a 64 channel / 42 configurable bus mixer platform, expandable to 96 channel / 56 configurable bus, featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing and effects from our flagship dLive mixing system.

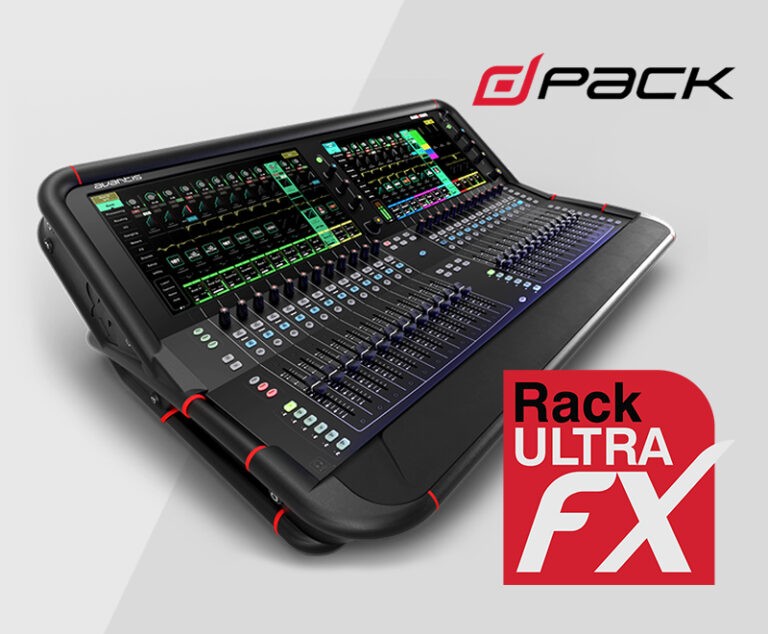

ALLEN & HEATH Avantis Ultra
Avantis UltraHardware:Two 15.6” Full HD touchscreens24 assignable SoftKeys24 faders, 6 layers12 Analog/1 stereo AES Inputs12 Analog/2 stereo AES Outputs2 I/O Ports (128×128)Mix Engine:96 Input Channels56 Busses24 Dyn8DEEP Preamp, Compressor & Expander ModelsNEQ128 RackUltra FX12 RackExtra FXAvantis is a 64 channel / 42 configurable bus mixer platform, expandable to 96 channel / 56 configurable bus, featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing and effects from our flagship dLive mixing system.
ALLEN & HEATH CQ-12T
Ultrakompakter 12-Zoll-/8-Zoll-DigitalmixerCQ-12T ist der kleinste Mixer der CQ-Reihe und eignet sich ideal für Heimaufnahmen und Streaming, Bandproben, kleine Auftritte und Sprachanwendungen.Intelligenter mischen. Schneller arbeiten. Besser klingen.CQ übernimmt unsere bekannte Verarbeitung und Effekte, fügt aufregende neue unterstützende Mischwerkzeuge hinzu und verpackt alles in unsere bisher kleinste und erschwinglichste digitale Mischpultserie.Eingänge 5 XLR - 5 XLR/TRS-Kombi - 2 TRS (Stereo)Ausgänge 2 XLR (Haupt) -6 TRS (Monitore)Stereo-USB-Aufnahme/-Wiedergabe mit dediziertem EingangskanalStereo-Bluetooth-Wiedergabe mit dediziertem Eingangskanal16×16 USB-B-Schnittstelle (48/96kHz)16×16 SD-Aufnahme/Wiedergabe (48/96 kHz)2 FX-Engines3 benutzerdefinierte SoftkeysDualer Fußschalteranschluss7" kapazitiver Touchscreen mit zugehörigem DrehreglerZuweisbarer TRS-KopfhörerausgangSchnell und vollständigWählen Sie Ihren MixstilJeder Eingangskanal des CQ lässt sich zwischen zwei Modi umschalten.Quick Channels bieten instrumenten- und anwendungsspezifische Verarbeitung mit der Möglichkeit, einen vollständigen Kanal über einen einzigen Knopf zu aktivieren.Benötigen Sie mehr Kontrolle? Wechseln Sie zu Complete Channels für erweiterte, detaillierte Parameteranpassungen.VerstärkungsassistentSchnellere SetupsDas Einstellen der richtigen Verstärkung für jeden Kanal ist keine besonders spannende Aufgabe und kostet schnell Zeit, da mehrere Kanäle gleichzeitig verwaltet werden müssen.Der Gain Assistant von CQ stellt schnell und präzise den optimalen Verstärkungspegel für einen oder mehrere Eingangskanäle ein und überwacht die Pegel während der Performance kontinuierlich, um unangenehme Spitzen oder Überraschungen zu vermeiden.Feedback-AssistentVerabschieden Sie sich von FeedbackDer Feedback-Assistent von CQ erkennt und eliminiert Problemfrequenzen automatisch mithilfe von bis zu 16 Filtern pro Ausgang, sodass Sie sicher mischen können – und sich keine Gedanken mehr über Feedback machen müssen.Makellos klingenSie werden Ihren Ohren nicht trauenCQ nutzt die Technologie unserer neuesten Generation von Live-Sound-Konsolen, um eine Audioqualität zu liefern, die auf diesem Mischpultniveau bisher undenkbar war.Makellos klarer 96-kHz-Ton wird mit integrierter Verarbeitung in Studioqualität und einer optimierten FX-Suite kombiniert, um einen neuen Standard für das zu setzen, was mit ultrakompakten digitalen Mischpulten möglich ist.Integrierte EffekteEine neue Generation von EffektenCQ präsentiert eine neue Suite hochwertiger, benutzerfreundlicher Hall-, Delay- und Modulationsalgorithmen mit instrumentenspezifischen Voreinstellungen für eine schnelle Einrichtung.Ausgewählte Geräte verfügen über unser neues FX Assist-Tool, das die Effekte automatisch formt und dynamisch auf Ihr Eingangssignal reagiert. So wird Ihr Mix durch FX optimiert und nicht überlagert.MehrkanalsteuerungDCAs und StummschaltungsgruppenCQ erleichtert die gleichzeitige Handhabung mehrerer Kanäle mit 4 DCAs, von denen jeder den Pegel einer beliebigen Kombination aus Eingängen, Ausgängen und FX steuern kann, für eine einfache Einzelfader-Steuerung mehrerer Kanäle, beispielsweise eines Schlagzeugs, ohne deren relative Pegel zu beeinflussen.Es gibt außerdem 4 Stummschaltgruppen, mit denen Sie mehrere Kanäle gleichzeitig über eine einzige Taste stummschalten und die Stummschaltung aufheben können – ideal zum Stummschalten aller Bühnenmikrofone oder Monitorlautsprecher.BenutzerfreundlichSie haben immer die KontrolleCQ-12T bietet Ihnen alle taktilen Bedienelemente, die Sie für eine schnelle Bedienung benötigen.Der 7-Zoll-Touchscreen und der Drehregler erleichtern die Einrichtung und das Mischen. Drei benutzerdefinierte Softkeys ermöglichen den Zugriff auf häufig verwendete Funktionen per Knopfdruck. SchließenSie einen Router oder Access Point an, und mit der kostenlosen CQ MixPad App haben Sie Ihren Mix von überall im Veranstaltungsort aus voll im Griff.Aufnahme und WiedergabeHalten Sie die Performance fest, wo immer Sie sindCQ bietet mehrere Aufnahme- und Wiedergabeoptionen, damit Sie immer bereit sind, die Aufführung aufzuzeichnen.Eine integrierte USB-Audioschnittstelle ermöglicht einfaches Mehrspur-Aufnehmen, Wiedergeben und Streamen über Ihre DAW und ein SD-Kartensteckplatz sorgt für zuverlässiges Mehrspur-Aufnehmen und Wiedergeben unterwegs.Sie können Stereodateien über einen USB-Stick aufnehmen und wiedergeben und über die integrierte Bluetooth-Funktion sogar von Ihrem Telefon aus wiedergeben.E/AVernetzen Sie sichDas CQ-12T bietet Ihnen alle Anschlussmöglichkeiten, die Sie für den Einstieg benötigen: 10 Mikrofon-/Line-Eingänge, verteilt auf fünf XLR- und fünf XLR/TRS-Kombibuchsen, sowie einen Stereo-Eingang über zwei 6,3-mm-Klinkenbuchsen.An Ausgängen stehen zwei Main-Mix-Ausgänge (XLR) sowie sechs TRS-Klinkenausgänge für Monitormischungen zur Verfügung – genug für die ganze Band!AMMSprache vereinfachenMit dem integrierten automatischen Mikrofonmixer (AMM) können Sie Hintergrundgeräusche sofort reduzieren und die Sprachverständlichkeit verbessern, ohne einen Finger rühren zu müssen.AMM ist auf allen Eingangskanälen verfügbar und somit der perfekte tragbare Mixer für Konferenzen, Podcasts, Debatten und kleine Theaterproduktionen.
ALLEN & HEATH CQ-18T
The largest desktop mixer in the CQ range, the A&H CQ-18T is ideal for bands, rehearsal rooms, home recording and streaming, voice applications and corporate AV.Mix smarter. Work faster. Sound better.CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packs it all into our smallest and most affordable digital mixer series.Fast and completeChoose your mixing style. Each input channel on CQ can be switched between two modes.Fast channels offer instrument and application specific processing with the ability to set full channel processing from a single knob.Need more control? Switch to full channels for advanced, detailed tweaking of parameters.Gain AssistantFaster setups. Setting the right gain for each channel isn't the most exciting task, and it quickly eats up your setup time with multiple channels to worry about.CQ's Gain Assistant quickly and accurately sets the optimal gain level for one or more input channels, and continues to monitor levels during performance to prevent unpleasant spikes or surprises.Feedback AssistantSay goodbye to feedback. CQ's Feedback Assistant automatically detects and eliminates problem frequencies with up to 16 filters per output, so you can mix with confidence - and forget about feedback.User-friendlyYou're always in control. The CQ-18T gives you all the tactile control you need to quickly bypass the interface.A 7-inch touchscreen and knobs make it easy to set up and mix, and the 3 custom knobs and SoftKeys let you access frequently used functions with just your muscle memory.The free CQ MixPad app also gives you full control of your mix from anywhere in the venue thanks to built-in Wi-Fi.Built-in Wi-FiLeave your access point at home. The CQ-18T has powerful built-in dual-band Wi-Fi, so you don't need to bring a bulky access point or router to use apps with the mixer.Just connect your devices to CQ's secure Wi-Fi network and you're ready to go.Features8 XLR8 XLR/TRS Combi2 TRS (stereo)2 XLR (main output)6 TRS (monitors)24×22 USB-B interface (48/96kHz)SD recording/playback24x22 (48kHz)16x16 (96kHz)Stereo USB recording/playback with dedicated input channelStereo Bluetooth playback with dedicated input channel4 FX engines3 custom encoders3 Custom SoftKeysDual footswitch connection7" capacitive touchscreen with dedicated knob2 Assignable TRS headphone outputsBuilt-in dual band 2.4G/5G AC Wi-Fi with automatic channel selectionTechnical DataDimensions (WxDxH): 430x310x200 mmWeight: 4,0 Kg

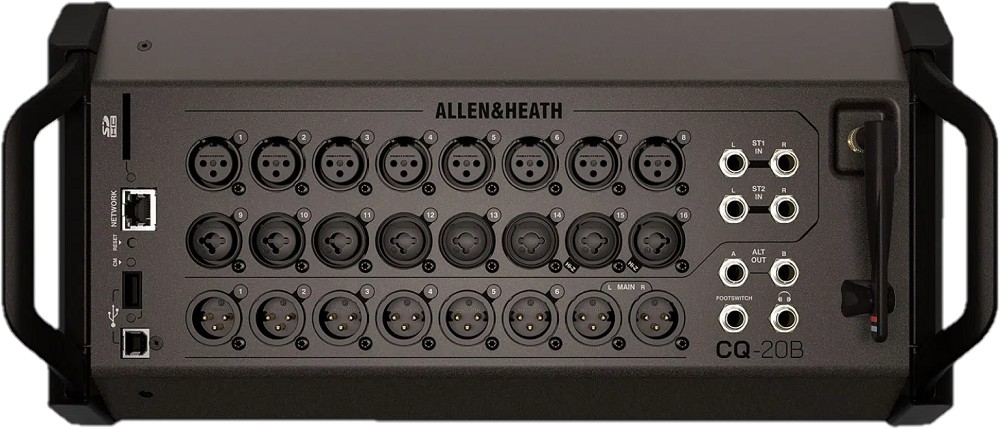

ALLEN & HEATH CQ-20B
Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.Inputs8 XLR8 XLR/TRS Combi4 TRS (stereo)Outputs2 XLR (Main)6 XLR (Monitors)Assignable Alt Out24×24 USB-B interface (48/96kHz)SD record/playback24×24 (48kHz)16×16 (96kHz)Stereo USB record/playback with dedicated input channelMix Smarter. Work Faster. Sound Better.CQ takes our renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into our smallest, and most affordable, digital mixer series yet.Pick Your Mixing StyleEvery input channel on CQ can be switched between two modes.Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.Faster SetupsSetting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.CQ’s Gain Assistant quickly and accurately sets the optimal gain level for your one or multiple channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.Say Goodbye to FeedbackCQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.A New Breed of EffectsCQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.DCAs & Mute GroupsCQ makes it easy to handle multiple channels simultaneously with 4 DCAs, each capable of controlling the level of any combination of inputs, outputs, and FX, for simple single-fader control of multiple channels, such as a drum kit, without affecting their relative levels.There’s also 4 Mute Groups, enabling you to mute and unmute multiple channels at once via a single button, perfect for muting all stage mics or monitor speakers.Capture the Performance, Wherever You AreCQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.The CQ-20B also includes an assignable Alt-Out – great for an engineer’s IEM connection.Leave Your Access Point at HomeThe CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer.Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.Get Yourself ConnectedCQ-20B gives you all the connectivity you need to get going with 16 mic/line inputs plus two stereo line inputs.When it comes to outputs, there’s a pair of main mix outputs plus 6 outputs for monitor mixes – enough for the whole band – and an assignable Alt Output is also provided.Simplify SpeechThe integrated Automatic Mic Mixer (AMM) means you can instantly reduce background noise and improve clarity for speech applications without lifting a finger.AMM is available on all input channels, making it the perfect portable mixer for conferences, podcasts, debates and small-scale theatre productions.
ALLEN & HEATH QU-16C
16 Mono-Eingänge über XLR oder Klinke mit AnaLOGIQTM Preamps 3 Stereo-Eingänge über Klinke 4 Stereo FX-Returns 16 Busse 12 Mix-Ausgänge: LR, Mono Mix 1-4, Stereo Mix 1-3 AES Digitalausgang 4 FX-Engines mit der iLive FX-Library 4 Mute Gruppen Motorfader Trim, Polarity, Low Cut, Gate, Insert, parametrischer 4-Band EQ, Kompressor und Delay in allen Eingängen Insert, parametrischer 4-band EQ, grafischer EQ, Kompressor und Delay für Main LR und Mono Mix Ausgänge Qu-Drive: 18 Spuren Multitrack Recording / Playback via USB Drives Aufzeichnungsformat: 48 kHz/ 24 Bit (WAV-Datei) 800 x 480 Touchscreen eingebauter Signal-Generator USB Audio Streaming dSNAKE Remote Audio Port kompatibel mit ME Personal Mixing System Qu-Pad iPad App DAW MIDI-Control Maße: 440 x 500 x 186 mm Gewicht: 10 kg ab Firmware Version 1.9: Pro Factory Mikrofon Presets von Audio-Technica, Sennheiser und Shure, DAW Kontrolle für Windows, neue QU-Control App
ALLEN & HEATH QU-5
7” kapazitiver Touchscreen17 Fader16 Mic / Line Kombi-Eingänge2 Stereo-Line-Eingänge12 XLR-Ausgänge2 TRS-Ausgänge1 AES3-Ausgang4 Channel-Strip-Ebenen8 SoftKeys96kHz XCVI Core38 Eingänge zum Mischen (32 Mono, 2 Stereo, USB)12 Mix-Busse (6 Mono Aux/Group, 6 Stereo Aux/Group)4 Matrix-Busse6 FX-EnginesSLink-PortUSB-A Stereoaufnahme/-wiedergabeUSB-C Interface mit 32 x 32 KanälenSD-Karten-Multitrack-Aufnahme/-wiedergabe (16 x16 bei 96 kHz, 32 x 32 bei 48 kHz)optional 19” Rack-montierbar (nicht im Lieferumfang enthalten )Abmessungen (B x H x T): 440 x 476 x 211 mmGewicht: 10 Kg
ALLEN & HEATH QU-5D
7” kapazitiver Touchscreen17 Fader16 Mic / Line Kombi-Eingänge2 Stereo-Line-Eingänge12 XLR-Ausgänge2 TRS-Ausgänge1 AES3-Ausgang4 Channel-Strip-Ebenen8 SoftKeys96kHz XCVI Core38 Eingänge zum Mischen (32 Mono, 2 Stereo, USB)12 Mix-Busse (6 Mono Aux/Group, 6 Stereo Aux/Group)4 Matrix-Busse6 FX-EnginesSLink-PortUSB-A Stereoaufnahme/-wiedergabeUSB-C Interface mit 32 x 32 KanälenSD-Karten-Multitrack-Aufnahme/-wiedergabe (16 x16 bei 96 kHz, 32 x 32 bei 48 kHz)optional 19” Rack-montierbar (nicht im Lieferumfang enthalten )Abmessungen (B x H x T): 440 x 476 x 211 mmGewicht: 10 Kg
ALLEN & HEATH Qu-6
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.Compact 38in/24out 96kHz Mixer25 100mm Motorised Faders24 XLR/Jack ‘Combi’ Mic/Line Input Sockets16 XLR Output SocketsThe Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.AudioUpdated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.ControlEvery channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.Updated WorkflowThe original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.Reliable Recording and Playback. Anywhere.Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.Everything I/O CompatibleThanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.DEEP Processing. Assistive Tools.Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.Faster SetupsAdjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.Say Goodbye to FeedbackQu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind youAutomatic Mic MixerQu’s 32 channel Automatic Mic Mixer (AMM) makes it the perfect choice for mixing conferences, panel talks, and TV shows. It’s fully integrated in the mixer, with no extra latency, so you don’t need to route the audio to an internal DSP rack or external plugin system.

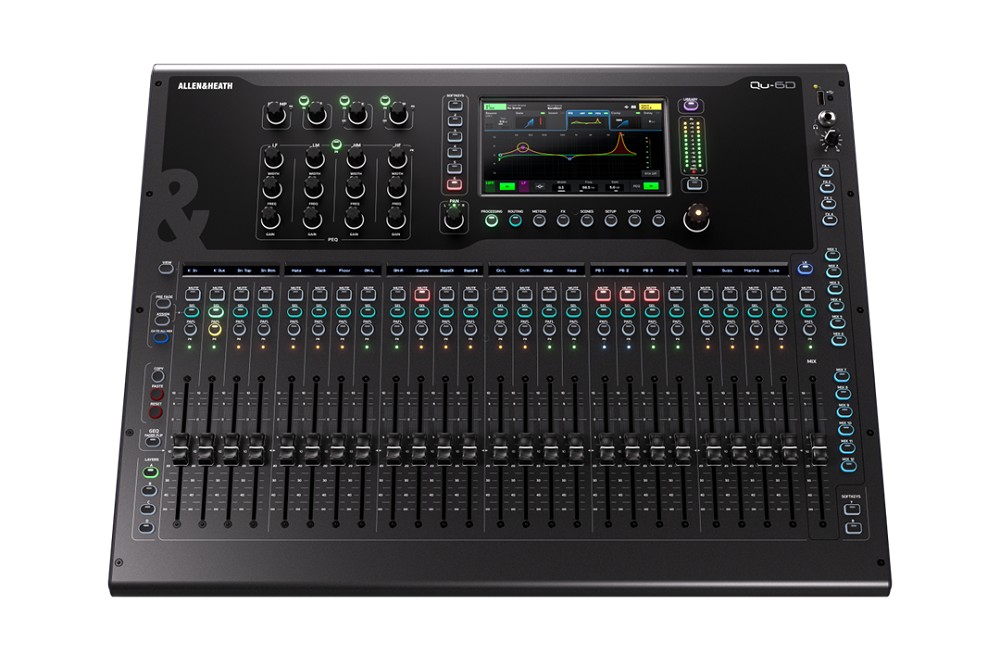

ALLEN & HEATH Qu-6D
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.Compact 38in/24out 96kHz Mixer with Dante25 100mm Motorised Faders24 XLR/Jack ‘Combi’ Mic/Line Input Sockets16 XLR Output Sockets16×16 48/96 kHz Dante interface with dedicated locking EtherCon portThe Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.AudioUpdated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.ControlEvery channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.Updated WorkflowThe original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.Reliable Recording and Playback. Anywhere.Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.Everything I/O CompatibleThanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.DEEP Processing. Assistive Tools.Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.Faster SetupsAdjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.Say Goodbye to FeedbackQu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind youAutomatic Mic MixerQu’s 32 channel Automatic Mic Mixer (AMM) makes it the perfect choice for mixing conferences, panel talks, and TV shows. It’s fully integrated in the mixer, with no extra latency, so you don’t need to route the audio to an internal DSP rack or external plugin system.

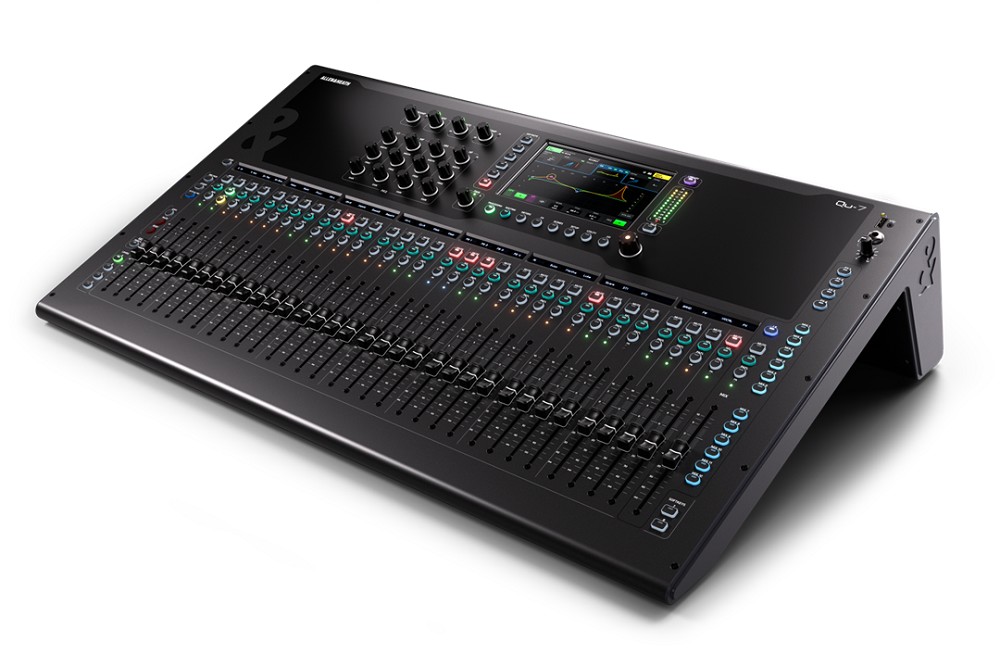

ALLEN & HEATH Qu-7
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.Qu-7Compact 38in/24out 96kHz Mixer33 100mm Motorised Faders32 XLR/Jack ‘Combi’ Mic/Line Input Sockets20 XLR Output SocketsThe Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.AudioUpdated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.ControlEvery channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.Updated WorkflowThe original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.Reliable Recording and Playback. Anywhere.Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.Everything I/O CompatibleThanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.DEEP Processing. Assistive Tools.Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.Faster SetupsAdjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.Say Goodbye to FeedbackQu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.Automatic Mic MixerQu’s 32 channel Automatic Mic Mixer (AMM) makes it the perfect choice for mixing conferences, panel talks, and TV shows. It’s fully integrated in the mixer, with no extra latency, so you don’t need to route the audio to an internal DSP rack or external plugin system.
ALLEN & HEATH Qu-7D
Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.Compact 38in/24out 96kHz Mixer with Dante33 100mm Motorised Faders32 XLR/Jack ‘Combi’ Mic/Line Input Sockets20 XLR Output Sockets16×16 48/96 kHz Dante interface with dedicated locking EtherCon portThe Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.AudioUpdated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.ControlEvery channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.Dante EnabledThe Qu-7D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.Updated WorkflowThe original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.Capture & PlaybackReliable Recording and Playback. Anywhere.Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.Everything I/O CompatibleThanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.DEEP Processing. Assistive Tools.Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.Faster SetupsAdjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.Feedback AssistantQu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.Automatic Mic MixerQu’s 32 channel Automatic Mic Mixer (AMM) makes it the perfect choice for mixing conferences, panel talks, and TV shows. It’s fully integrated in the mixer, with no extra latency, so you don’t need to route the audio to an internal DSP rack or external plugin system.
ALLEN & HEATH SQ-Rack
48-Kanal-, 96-kHz-Rack-Digitalmixer für Live-Sound, AV und Installation.SQ-Rack ist das ultimative Tool für Audioprofis und bietet den renommierten 96-kHz-SQ-Core von Allen & Heath in einem kompakten, rackmontierbaren Design. SQ-Rack ist perfekt auf die Anforderungen von Live-Sound- und Installationsumgebungen zugeschnitten und kombiniert Leistung, Flexibilität und intuitive Steuerung in einer vielseitigen Lösung.Core. Konnektivität. Steuerung.SQ-Rack packt den 96-kHz-XCVI-Core von SQ in einen flachen 4U-Rack-Mount-Formfaktor mit integriertem I/O, leistungsstarker SLink-Konnektivität, Optionskarten und Multikanal-USB. Genießen Sie praktische Bedienelemente und anpassbare Bildschirme sowie Fernzugriff über SQ-Apps für die ultimative Kontrolle Ihres Audios.96-kHz-XCVI-VerarbeitungSQ-Rack basiert auf der renommierten 96-kHz-XCVI-FPGA-Engine von Allen & Heath und bietet außergewöhnliche hochauflösende Audioqualität, ultraniedrige Latenz von <0,7 ms und variable Bittiefen für einen optimierten Dynamikbereich. XCVI ermöglicht SQ die Verarbeitung von 48 Eingangskanälen bei 96 kHz mit enormem Mix-Headroom dank eines 96-Bit-Akkumulators und der schieren Leistung, unsere gefeierten DEEP-Plugins in alle 48 Eingangskanäle und alle Mixe einzubetten.96 kHz FPGA Core Signal-Verarbeitung: Latenz 0,7 ms7“ Multi-Touch Screen12 Stereo Mixes - perfekt für In-Ear-Monitoring Setups3 Matrix8 FX EngineHands Control: 8 Softkeys4 Soft RotariesSQ-Rack Apps: SQ-MixPad, SQ4You, SQ-Control128 x 128 SLink Anschluss für Remote Audio Networking64 x 64 Kanal I/O Anschluss für Audio Networking32 x 32 Kanal USBAudio InterfaceSQ-Drive für direktes Aufnahmen auf USB-Stick17 Mono XLR Eingänge: 1 Talkback2x 6,3 mm TRS Klinke Stereo Eingänge3,5 mm Stereo Eingang1 XLR Talkback Mic Eingang6,3 mm Fuß-Schalter12 XLR Ausgänge2x 6,3 mm TRS AusgängeAES XLR Ausgang6,3 mm KopfhörerausgangI/O Port für optionale Erweiterungskarten: Dante/Madi/Waves/SLinkMulti Position 19“ Rack Ears4 HE EinbauhöheAbmessungen: 430 x 214 x 173 mmGewicht 5,8 kg

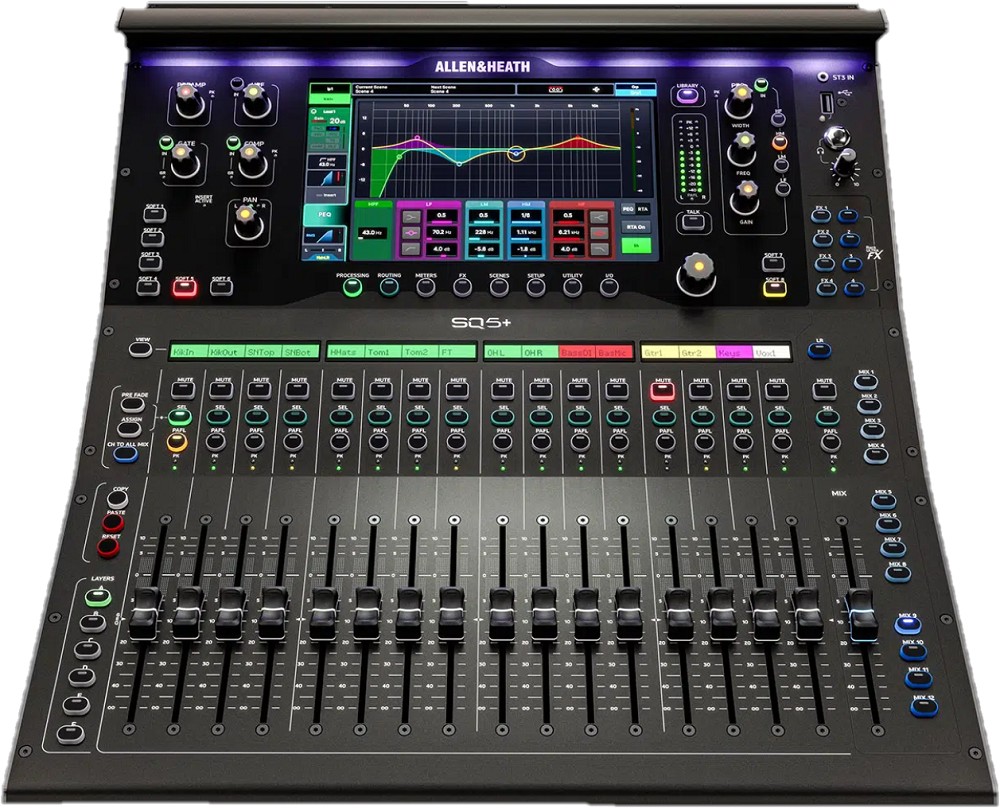

ALLEN & HEATH SQ5+
Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range. 17 motorised faders, 8 assignable SoftKeys and 4 built-in RackUltra FX engines give you flagship-tier processing and comprehensive hands-on control. Add the 19” rack kit and it’s as at home in a fixed installation as it is on the road.A Bigger, Bolder InterfaceSQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.Drag-and-Drop LayoutChannels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.At-a-Glance MeteringEach strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.Accelerate Your WorkflowAll SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.All the Tools for the Perfect MixEvery input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.Latency Free EmulationsSQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.Record. Stream. MixSQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.Capture. Playback. Virtual SoundcheckThe integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.Connectivity & ExpansionSQ+ is designed to sit at the centre of whatever system you’re building, and to grow with it.Audio NetworkingA dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves and additional SLink connections, making SQ+ a natural fit for complex multi-format installs, FOH/monitor splits and broadcast setups.

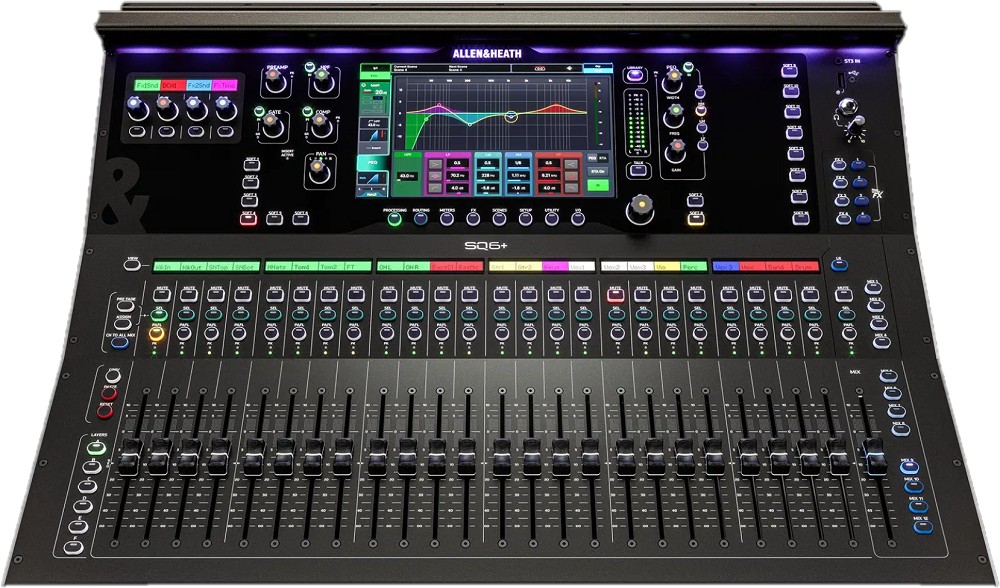

ALLEN & HEATH SQ6+
The SQ6+ expands the range with 25 motorised faders, 16 assignable SoftKeys and 4 SoftRotaries giving you more physical control when working with larger, more complex shows. Add 4 built-in RackUltra FX engines and you have a mixer that strikes the perfect balance between hands-on control and portability.A Bigger, Bolder InterfaceSQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.Drag-and-Drop LayoutChannels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.At-a-Glance MeteringEach strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.Accelerate Your WorkflowAll SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.All the Tools for the Perfect MixEvery input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.Latency Free EmulationsSQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.Record. Stream. MixSQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.Capture. Playback. Virtual SoundcheckThe integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.

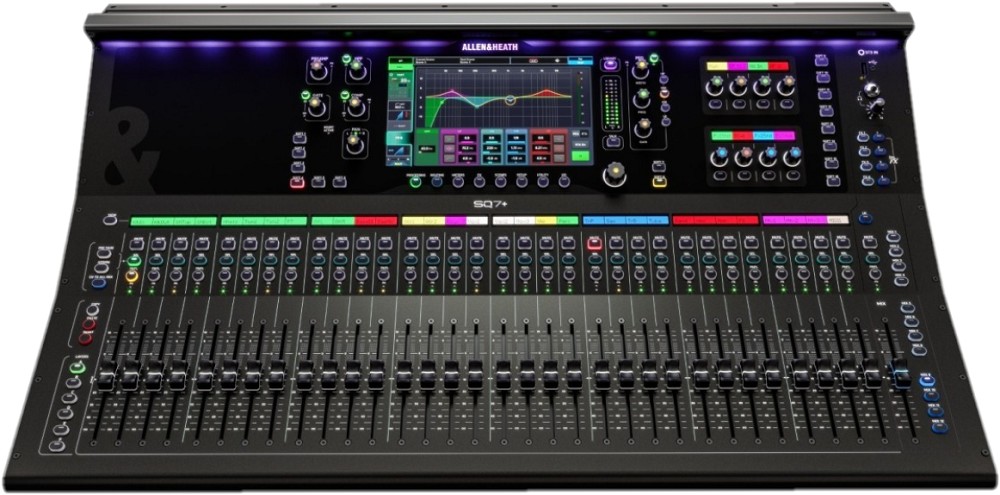

ALLEN & HEATH SQ7+
48 Channel / 44 Bus / 33 Fader Digital Mixer with RackUltra FXThe SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control. 33 motorised faders, 16 assignable SoftKeys and 8 SoftRotaries put your entire show within reach, all backed by the same 96kHz XCVI core and 4 built-in RackUltra FX engines that power every SQ+ model. 32+1 Onboard Preamps 18 Line Outputs 32+1 Faders / 6 Layers 16 Assignable SoftKeys 8 Assignable Soft Rotaries 96kHz FPGA Processing 48 Input Channels DEEP Processing Ready 8 RackExtra FX Engines + dedicated send and returns 4 RackUltra FX Engines + dedicated send and returns 12 Stereo Mixes + LR 3 Stereo Matrix Intelligent 128×128 SLink port Range of Remote Expanders 64×64 I/O Port for Audio Networking 32×32 USB Audio Interface 9” Touchscreen with dark GUI
AUDIO-TECHNICA ATDM-1012 Digitaler SmartMixer, 10 in 12 out, 1HE Rackeinbau
Der digitale SmartMixer ATDM-1012 ist ein flexibler, einfach zu bedienender Audiomischer für die unterschiedlichsten Festinstallationen – perfekt für alle Situationen, die einen Mix-Minus-Betrieb oder das Aufzeichnen von Audiosignalen bestimmter Zonen innerhalb eines Gebäudes erfordern. Mit seinen leistungsstarken Features ist der ATDM-1012 die ideale Lösung für Hotels und Gastronomie, Unternehmen, anspruchsvolle Installationen in Gerichtsgebäuden und vieles mehr. Der Matrix-Mixer stellt 14 Eingänge (10 Mic/Line-Eingänge mit hochwertigen Preamps plus 2 Stereo-Eingangspaare), 12 Busse, USB-Audio-I/O, 8 symmetrische Ausgänge und 2 unsymmetrische Stereo-Ausgänge bereit. Diese Konfiguration kann über eine digitale AT-LINK-Verbindung oder über Dante (Dante-fähige Version ATDM-1012DAN erforderlich) um 10 zusätzliche digitale Eingänge erweitert werden.Jeder Eingangskanal ist mit einem Hochpassfilter, Phasendrehung sowie einem parametrischen 4-Band-EQ ausgestattet. Über die Routing-Matrix können die Eingangssignale den 12 Bussen mit individuellen Lautstärkepegeln beliebig zugewiesen werden. Die SmartMixer-Technologie mit vier Mix-Gruppen ermöglicht das automatische Mischen im Gain-Sharing- oder Gating-Modus. Außerdem stehen 10 AEC-Prozessoren (Akustische Echounterdrückung), 10 Kompressoren/De-Esser und 8 Feedback-Unterdrücker zur Verfügung, die den Eingangs- oder Ausgangskanälen ebenfalls beliebig zugewiesen werden können und jederzeit für eine hervorragende Klangqualität sorgen. Der ATDM-1012 ist ein vielseitiger, umfassend konfigurierbarer und unkomplizierter Matrix-Mixer mit frontseitigen Bedienelementen zur Einstellung der Audio-Eingänge und -Ausgänge und umfassender Steuerung über die Web Remote Manager-Software. Noch mehr Flexibilität bietet die Fernsteuerung per IP-Remote-Protokoll über einen Web-Browser.
