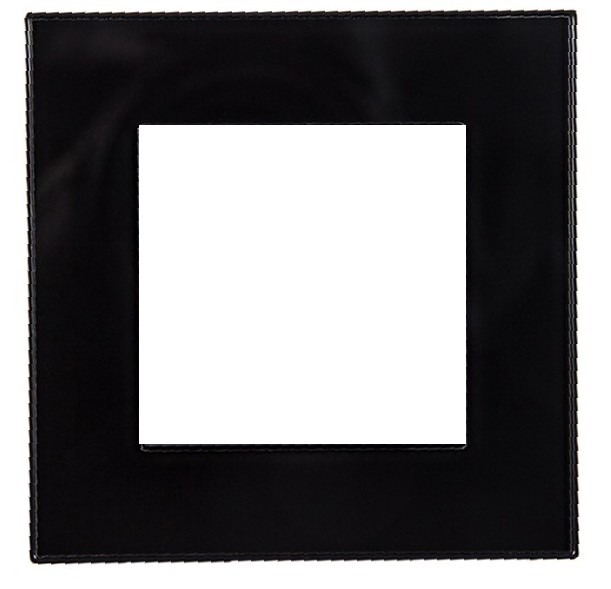

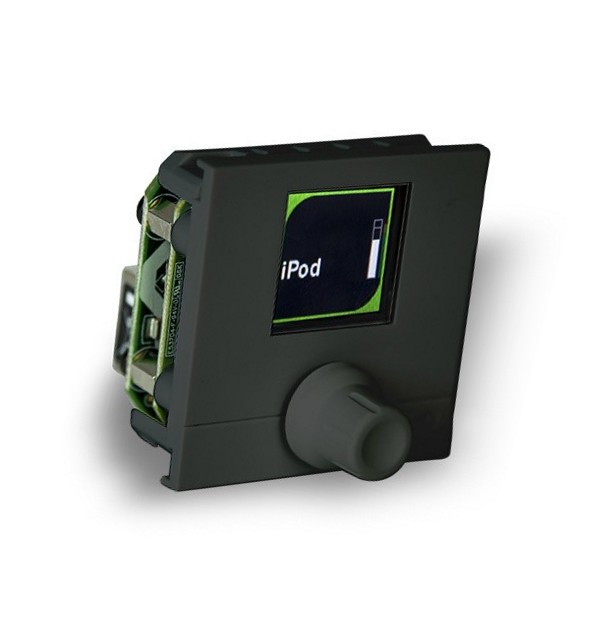

Rahmen 478615 nicht im Lieferumfang / Frame 478615 not includedWall or plinth mountedEU versionblackCompatible with Decora and MK Elements faceplatesInterface with dLive, Avantis and AHM-64 systems via TCP/IPDual function push & Turn rotary encoderLCD DisplayPowered via PoEThe remote controller shall be of a fixed installation type with 1 rotary encoder and 1 LCD display. The rotary encoder shall be dual function with the second function being accessed via a push and turn action. There shall be a fast Ethernet connection via an RJ45 connector. Connection of the controller shall be direct to the dLive Mixrack/Surface, Avantis mixer or AHM-64 Matrix Processor via standard Cat5 data infrastructure. Alternatively, it shall be capable of multiple parallel connections using an Ethernet switch. Configuration and programming of the controller shall be via AHM System Manager or dLive Director Software (PC or Mac), or via an Avantis mixer or dLive Surface. The controller shall be powered by the Cat5 control cable via aPoE enabled device. The controller shall be compatible with both PoE standards 802.3af (15.4W at source) and 802.3at (30W at source). The maximum power consumption of the controller shall be 2.5W. The remote controller shall be used wall/plinth mounted with multiple options to suit varying pattress box standards. These options shall include compatibility with Decora and Mk Elements faceplates when integrating with varying architectural finishes. Recommended operating temperature for the controller shall be 0 to 35 degrees Celsius.The controller shall be the Allen & Heath IP1. Dimensions and Weights Width x Depth x Height x Weight IP1 - EU 50 x 32 x 50 mm (2" x 1.3" x 2") x 70g (2.5 ounces)

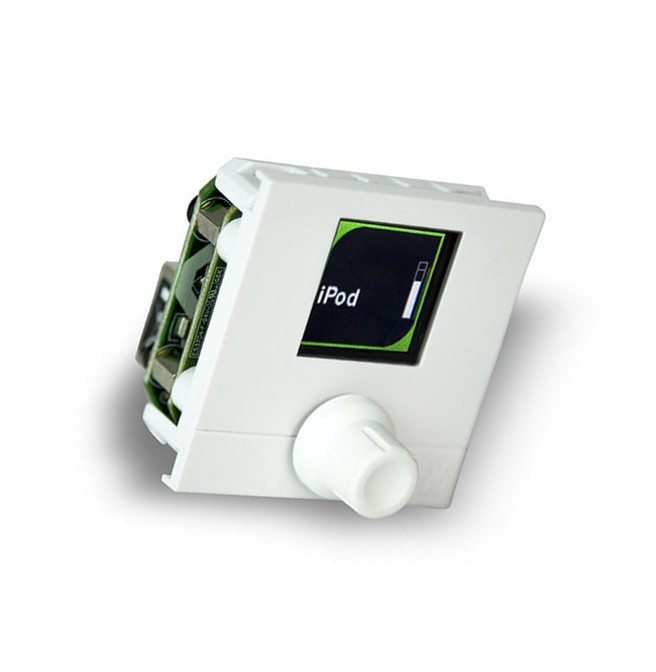

Rahmen 465432 nicht im Lieferumfang / Frame 465432 not includedWall or plinth mountedEU versionwhiteCompatible with Decora and MK Elements faceplatesInterface with dLive, Avantis and AHM-64 systems via TCP/IPDual function push & Turn rotary encoderLCD DisplayPowered via PoEThe remote controller shall be of a fixed installation type with 1 rotary encoder and 1 LCD display. The rotary encoder shall be dual function with the second function being accessed via a push and turn action. There shall be a fast Ethernet connection via an RJ45 connector. Connection of the controller shall be direct to the dLive Mixrack/Surface, Avantis mixer or AHM-64 Matrix Processor via standard Cat5 data infrastructure. Alternatively, it shall be capable of multiple parallel connections using an Ethernet switch. Configuration and programming of the controller shall be via AHM System Manager or dLive Director Software (PC or Mac), or via an Avantis mixer or dLive Surface. The controller shall be powered by the Cat5 control cable via aPoE enabled device. The controller shall be compatible with both PoE standards 802.3af (15.4W at source) and 802.3at (30W at source). The maximum power consumption of the controller shall be 2.5W. The remote controller shall be used wall/plinth mounted with multiple options to suit varying pattress box standards. These options shall include compatibility with Decora and Mk Elements faceplates when integrating with varying architectural finishes. Recommended operating temperature for the controller shall be 0 to 35 degrees Celsius.The controller shall be the Allen & Heath IP1. Dimensions and Weights Width x Depth x Height x Weight IP1 - EU 50 x 32 x 50 mm (2" x 1.3" x 2") x 70g (2.5 ounces)

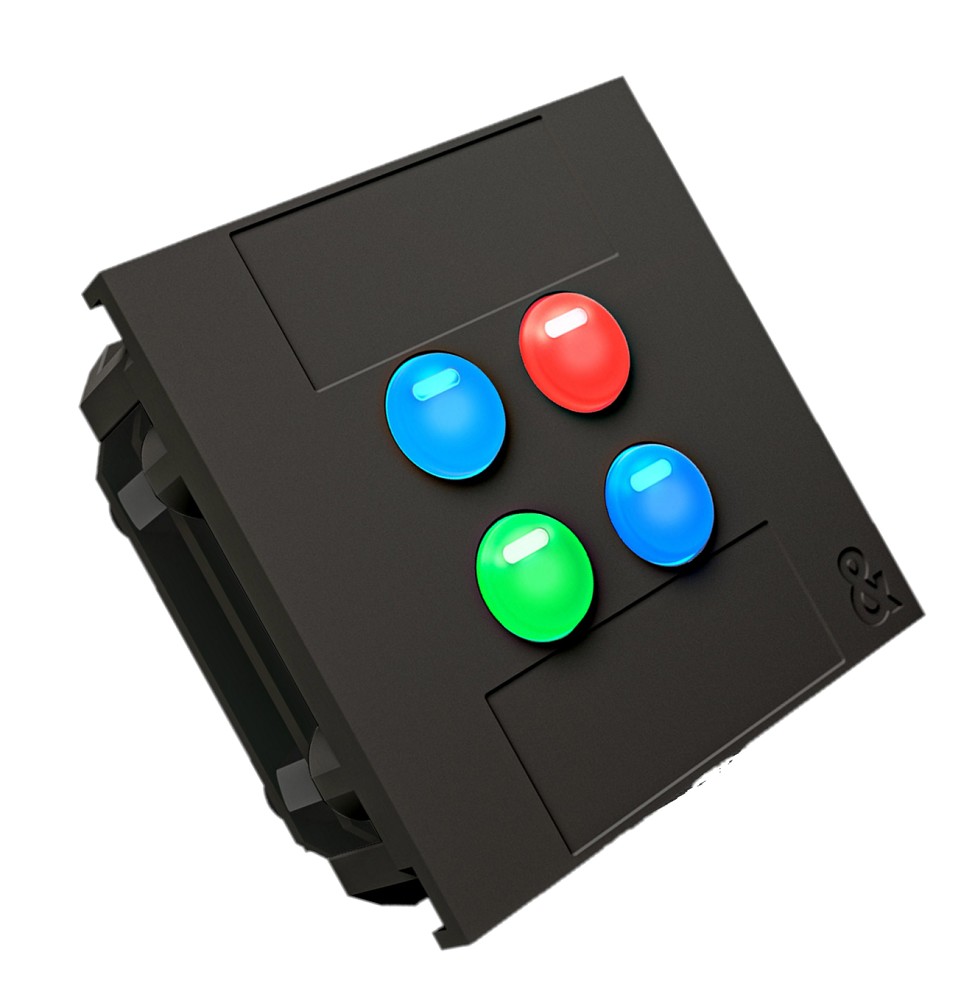

Rahmen 478615 nicht im Lieferumfang / Frame 478615 not includedIP4 is a simple programmable wallplate, giving the non-technical user convenient, easy control via 4 illuminated buttons.IP4 is compatible with Decora and MK Elements faceplates.Simple to UseIP4 is designed with the non-technical user in mind, and can control zone level, source selection, mutes, level adjustment, scene/preset recall, and more.Low MaintenanceThe IP4 automatically matches firmware with connected devices for easy install and system maintenance.Mix and MatchMultiple IP Controllers can be connected to an AHM system to provide control exactly where needed.Use IP controllers of different flavors to suit the needs of your end users, even letting one controller change what other controllers are doing to reflect changes in the space.ConnectIP4 interfaces with the AHM system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.ConfigureIP4’s controls and functions are configured using AHM System Manager.

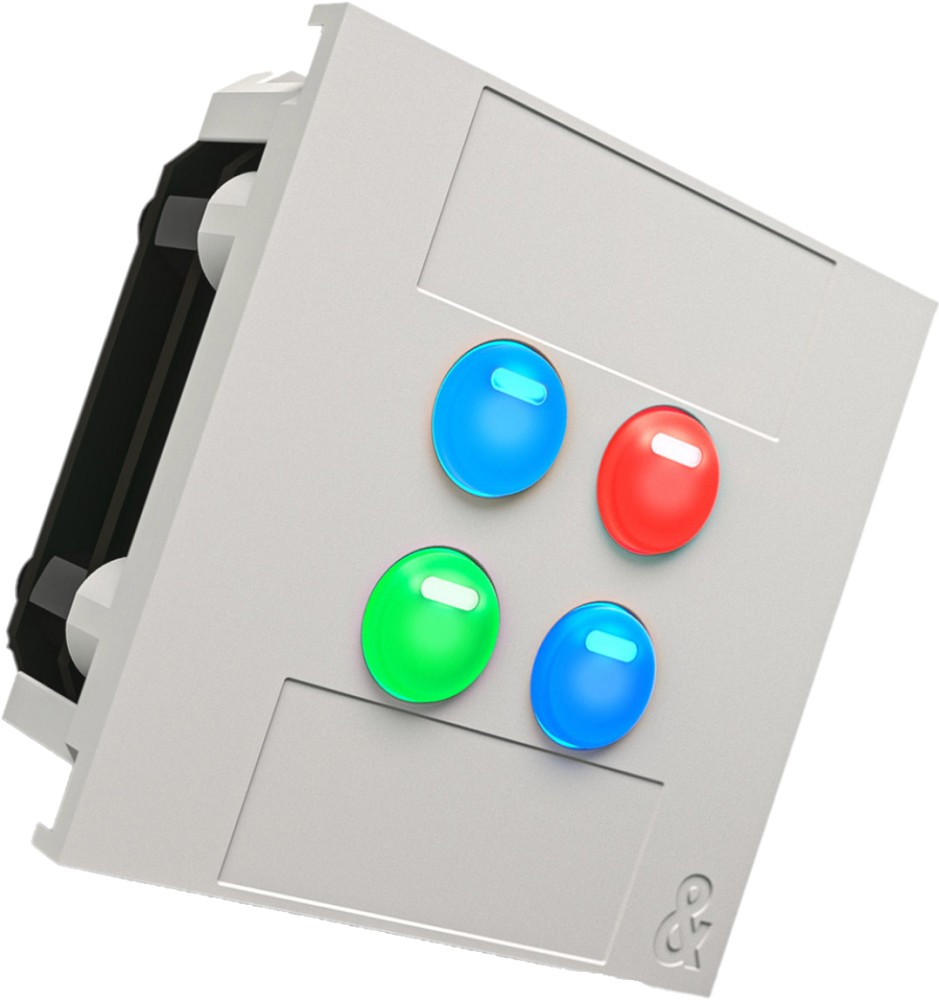

Rahmen 465432nicht im Lieferumfang / Frame 465432 not included IP4 is a simple programmable wallplate, giving the non-technical user convenient, easy control via 4 illuminated buttons.IP4 is compatible with Decora and MK Elements faceplates. Simple to UseIP4 is designed with the non-technical user in mind, and can control zone level, source selection, mutes, level adjustment, scene/preset recall, and more.Low MaintenanceThe IP4 automatically matches firmware with connected devices for easy install and system maintenance.Mix and MatchMultiple IP Controllers can be connected to an AHM system to provide control exactly where needed.Use IP controllers of different flavors to suit the needs of your end users, even letting one controller change what other controllers are doing to reflect changes in the space.ConnectIP4 interfaces with the AHM system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.ConfigureIP4’s controls and functions are configured using AHM System Manager.

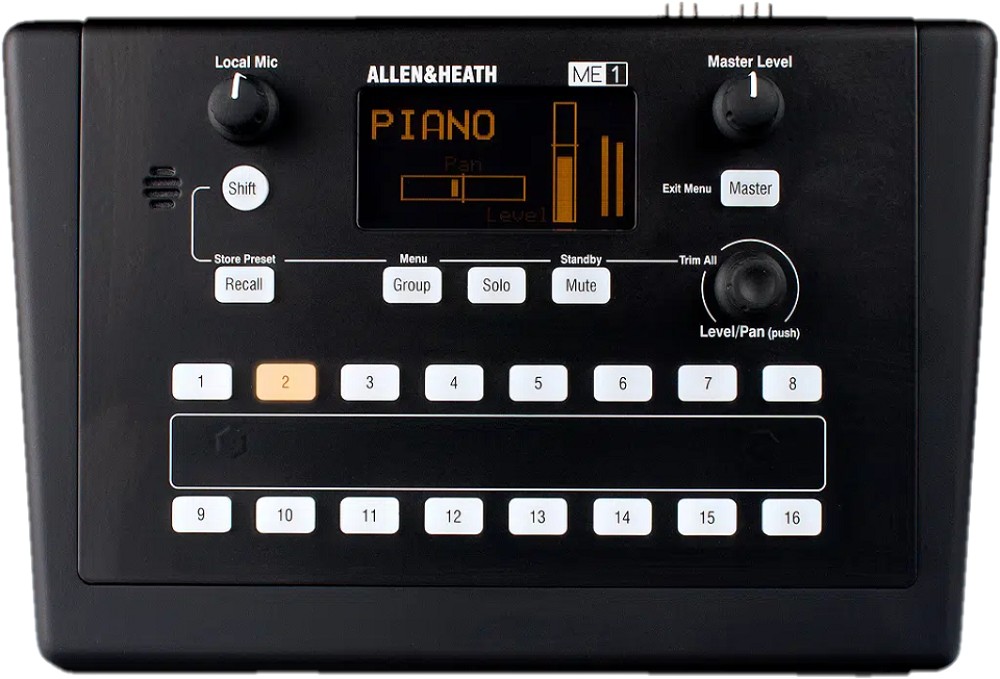

ME-1 is probably the most sophisticated personal monitor mixer on the market, giving precision control over up to 40 channels to satisfy the most demanding ears.Features40 Inputs With Level and Pan ControlDimmable OLED Screen16 Assignable Keys3.5mm and 1/4” Headphone OutputsMaster 3-Band EQ and LimiterSolo and Mute KeysAux Input for MP3 Players, Click Tracks etcBuilt-in Signal GeneratorMains or PoE PoweredDaisy Chain or Use Standard PoE Ethernet HubsMic Stand Bracket and Headphone Hanger Included40 SourcesControl up to 16 stereo/mono inputs or groups with level and pan controls for each input.OLED ScreenDimmable high-quality screen shows names, levels, pan, meters and more.16 User PresetsLevels, pan and mutes can all be stored and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-1s.GroupsSources can be grouped within the ME-1, so each performer can use different groups without consuming buses on the main console.Powerful Yet Easy To UseThe uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1.Powerful, Clear SoundThe ME-1 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears.Protect Your EarsThe integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.Neat and TidyThe included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.Designed for PerformersThe top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.ME With Other MixersYou don’t have to own an Allen & Heath mixer to benefit from the ME Personal Mixing System.If you’re using other console brands, the ME-U hub is your gateway to the ME system, with MADI and Dante option cards allowing a digital feed of up to 40 sources from third-party systems.ME-1 and ME-500 can be used as drop-in replacements for older AVIOM® A-16ii units.

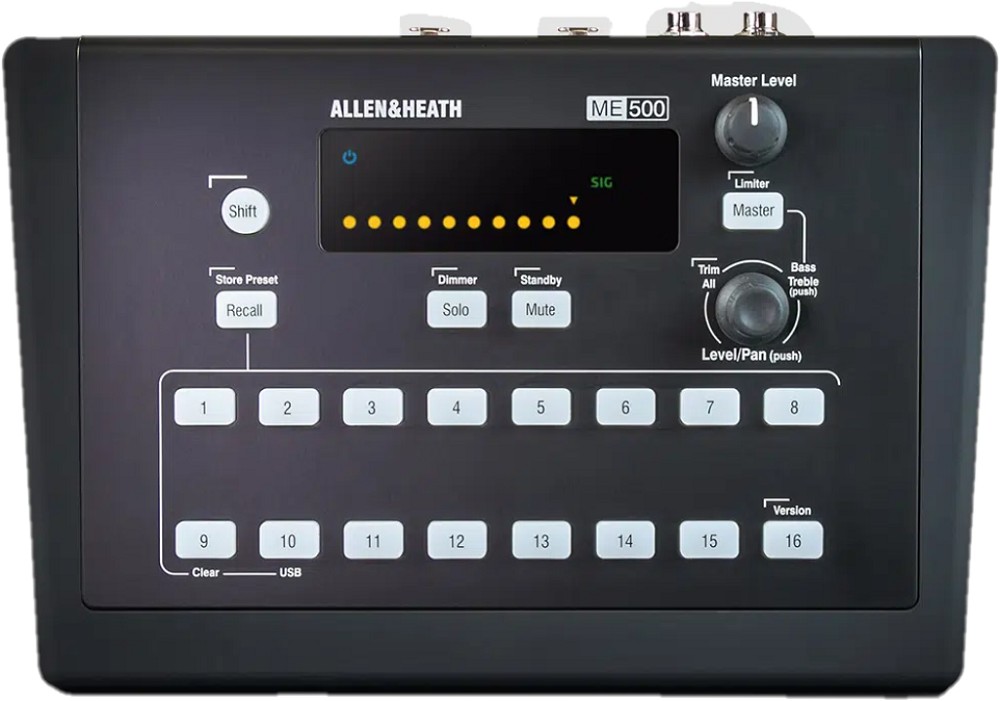

ME-500 is a walk-up-and-mix solution that is quick to set up and can be used instantly with no learning curve. With plug ‘n’ play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.Features16 Mono / Stereo Inputs With Level and Pan ControlMaster 2-Band Eq and LimiterAutomatic Key Assignment8 User Presets3.5MM and 1/4” Headphone OutputsSolo and Mute KeysMains or PoE PoweredDaisy Chain or Use Standard PoE Ethernet HubsMic Stand Bracket + Headphone Hanger Sold Separately16 inputsControl up to 16 stereo or mono inputs with level and pan controls for each input.Master 2-band EQ and LimiterProtect your ears and craft the overall tone of your mix.Automatic SetupPlug in and start mixing.8 User PresetsLevels, pan and mutes can all be stored and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-500s.Powerful, Clear SoundThe ME-500 features ¼” and 3.4mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears.Protect Your EarsThe integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.Automatic SetupWith ME-500 there’s no time-consuming configuration. The first 16 channels/mixes sent from the mixer will be automatically mapped to ME-500’s 16 select keys, so it is fast and simple to deploy personal mixers in pressured situations such as festivals.No Learning CurveThe intuitive hands-on controls and clear visual display make it easy for musicians to control their own monitor mixes. The uncluttered top panel makes control quick, easy, and intuitive: press a key to select one of the 16 sources and turn the rotary control to adjust the volume or push and turn to adjust the pan. Dedicated Mute and Solo switches ensure fast, instinctive control of the mix.

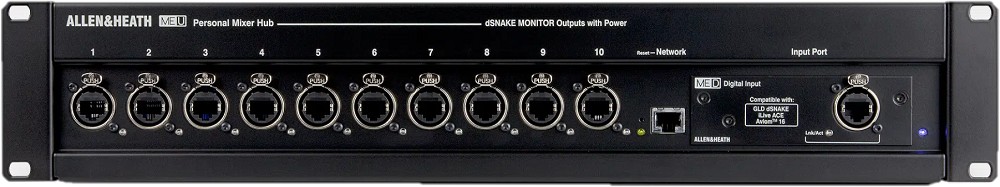

ME-U is a touring grade, 10 port PoE hub providing power and audio to multiple ME-1 and/or ME-500 personal mixers.ME-U’s input card allows quick and easy integration with Allen & Heath’s digital mixers, powering up to 10 ME Personal Mixers via PoE.Fitting a Dante or MADI option card to the ME-U allows users of other digital mixer brands to feed up to 40 sources to ME-1s, or up to 16 sources to ME-500s.Features10 ports with locking Ethercon connectorsEach port provides power + audio to a ME-1 or ME-500Link 2 hubs for more portsTouring grade build quality2U rack or desk mountingConnected ME-1s automatically pick up channel names from SQ or dLive mixersBrowser-based setup of unit name and IP address, and manual entry of channel namesTour ReadyThe ME-U’s touring grade build quality is designed to withstand the rigours of the road and includes 2u rack ears.Simplified CablingEach port on the ME-U provides both audio and power to a ME personal mixer, cutting down on cables and keeping the stage tidy.3rd Party CompatibleOptional Dante and MADI cards open up the ME Personal Mixing System to 3rd party mixers and audio interfaces.Browser Based SetupConnect your computer to the network port for advanced configuration via a browser.Allen & Heath MixersIf you’re using Allen & Heath digital consoles, ME-U gives you the option to take your ME system to the next level of professionalism, eliminating the clutter of separate power supplies for each directly connected ME-1 or ME-500 unit and providing a high quality, road-proven alternative to standard PoE hubs.3rd Party Mixers & InterfacesIf you’re using other console brands, ME-U is your gateway to the ME system, with MADI, Dante and DiGiCo DMI option cards allowing a digital feed of up to 40 sources from third party systems.As Big (Or Small) As You NeedThe ME system can scale effortlessly from one mixer to hundreds.ME-1 and ME-500 mixers connected directly to the ME-U are powered via PoE. Additional ME-1 and ME-500 mixers can be daisy-chained and powered via external PSU. Multiple ME-U hubs can be daisy-chained together if more than 10 ports are required.ME in the StudioWhen fitted with the appropriate option card, the ME-U can be connected to a MADI or Dante equipped audio interface for use in recording studios, bringing all the benefits of the ME Personal Mixing System to recording musicians and engineers.
