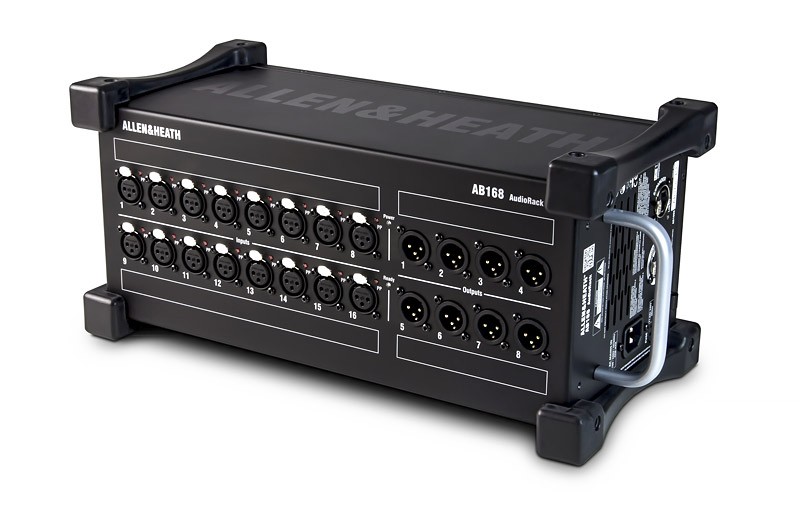

ALLEN & HEATH AB168
AB168 is a 48kHz portable remote AudioRack for use with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 XLR Line OutsBalanced, relay protected line outputs on XLR.Expander PortFor daisy-chaining 2 compatible Expanders or connection to ME personal mixers.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the AB168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available for installation in 19-inch racks.Put It Where You Need ItThe AB168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.

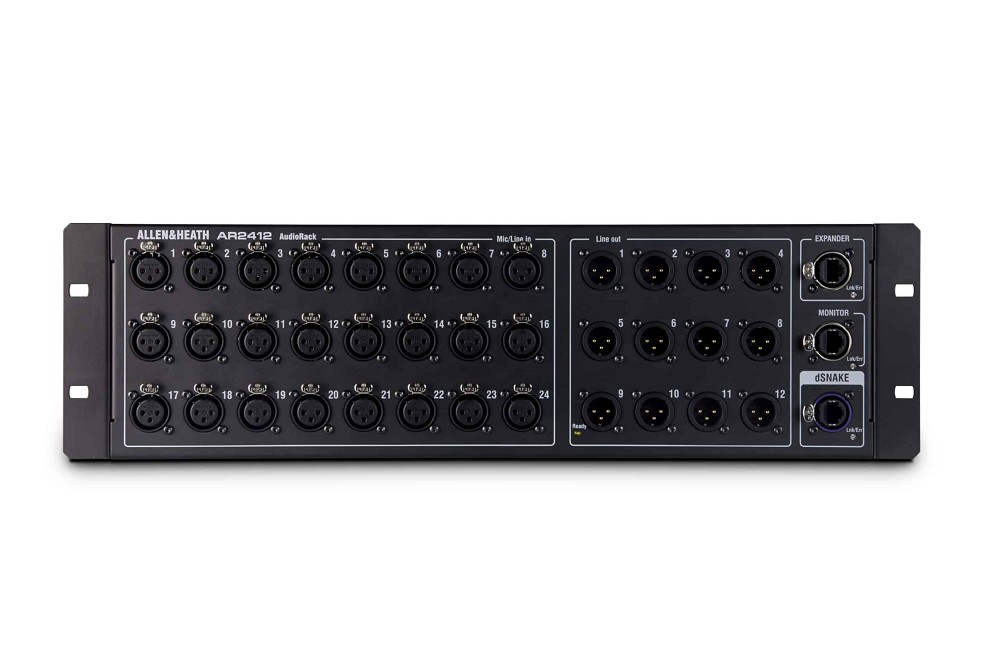

ALLEN & HEATH AR2412
AR2412 is a 48kHz, 24 XLR input, 12 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with the AHM audio matrix processors.24 Mic Preamps+60dB of gain with -20dB pad for line level sources.12 Line OutsBalanced, relay protected line outputs on XLR.Expander & Monitor PortsDedicated ports for connection to an AR84 or AB168, and to the ME Personal Mixing System.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Put It Where You Need ItThe AR2412 can be placed up to 100m away from the mixer for maximum flexibility of positioning and includes rack ears for mounting in a 3U 19″ rack space.The unit connects over a single Cat5 cable to the mixer or upstream Expander. A second port is provided for daisy-chaining to another compatible expander or for connection to a ME personal mixing system.

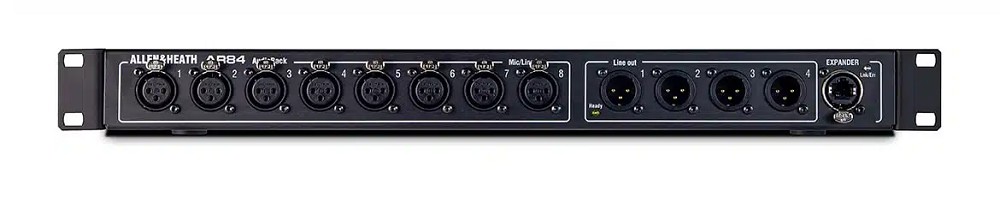

ALLEN & HEATH AR84
AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible with Qu, Avantis and SQ mixers, and with AHM audio matrix processors.8 Mic Preamps+60dB of gain with -20dB pad for line level sources.4 Line OutsBalanced, relay protected line outputs on XLR.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Put It Where You Need ItThe AR84 can be placed up to 100m away from the mixer for maximum flexibility of positioning, and is fitted with rack ears for installation in a 1U 19″ rack space. The AR84 connects over a single Cat5 cable to the mixer or upstream Expander.

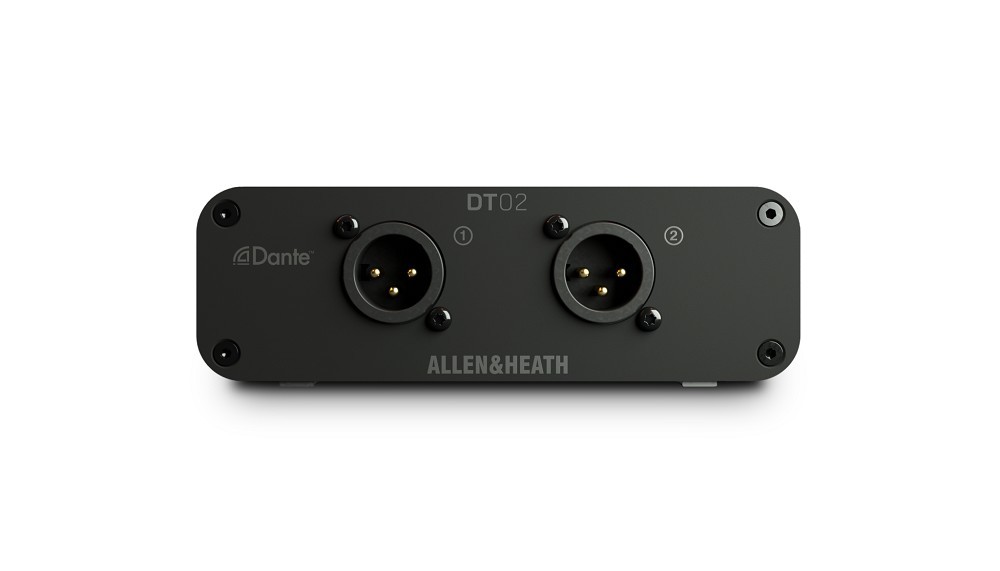

ALLEN & HEATH DT02 (Inc. PSU)
The compact and portable DT02 converts two channels of Dante audio to a pair of XLR line-outputs, enabling simple break-out to analogue equipped hardware for install and live applications.2 Line OutsBalanced, relay protected line outputs on XLR.AES67 CompatibleInteroperability with other AES67 devices on the same network.DDM ReadyDante Domain Manager offers security, organization, scalability, and control for Dante networks.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Easily Add Line Outputs to a Dante NetworkDT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.PoE or PSUThe unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).Surface MountThanks to its compact format, DT02 can be easily mounted in the proximity of powered speakers or monitors. The DT02-M version ships with surface mounting ears for visually unobtrusive installation.Rack Mount KitAn optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot in the equipment rack.DT02 CompatibilityThe DT02 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
ALLEN & HEATH DT02-M (No PSU)
The compact and portable DT02 converts two channels of Dante audio to a pair of XLR line-outputs, enabling simple break-out to analogue equipped hardware for install and live applications.2 Line OutsBalanced, relay protected line outputs on XLR.AES67 CompatibleInteroperability with other AES67 devices on the same network.DDM ReadyDante Domain Manager offers security, organization, scalability, and control for Dante networks.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Easily Add Line Outputs to a Dante NetworkDT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.PoE or PSUThe unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).Surface MountThanks to its compact format, DT02 can be easily mounted in the proximity of powered speakers or monitors. The DT02-M version ships with surface mounting ears for visually unobtrusive installation.Rack Mount KitAn optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot in the equipment rack.DT02 CompatibilityThe DT02 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.

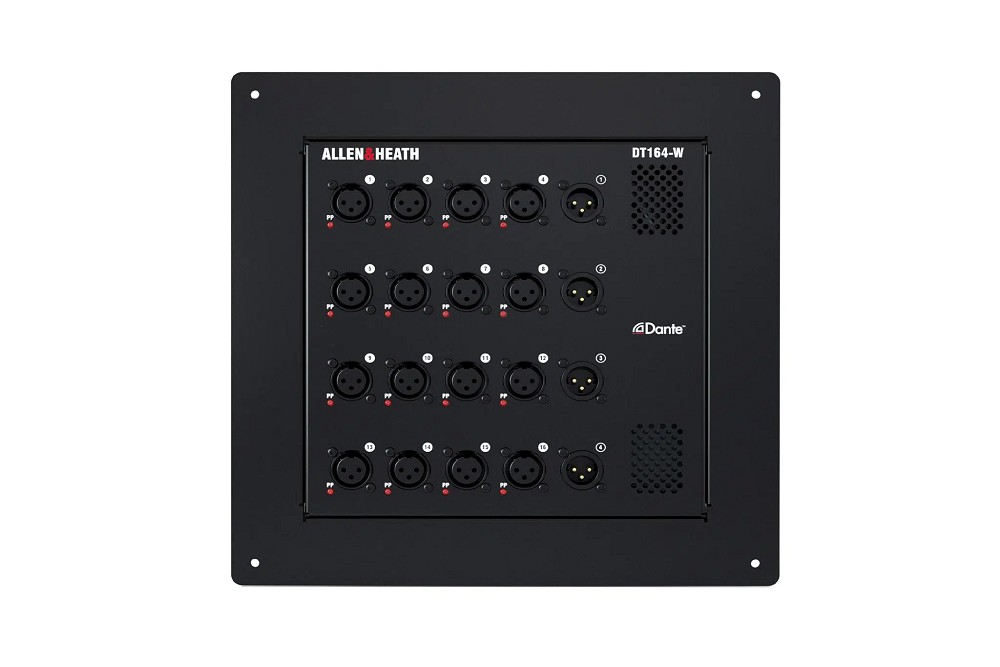

ALLEN & HEATH DT164-W
DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.4 Line OutsBalanced, relay protected line outputs on XLR.Wall or Floor MountDesigned for fixed installation in or on walls, or in floor traps.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Wall or Floor MountThe reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.Flexible Power OptionsThe IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.
ALLEN & HEATH DT168
The DT168 is a rugged, 96kHz portable expander for adding remote I/O to a Dante equipped dLive, Avantis, SQ, Qu, or AHM system.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 Line OutsBalanced, relay protected line outputs on XLR.On Stage or In The RackStagebox format with optional rackmount kit available.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Roadworthy Dante ExpansionThe DT168 provides 16 microphone preamps and 8 line outputs in a convenient stagebox form factor. Ideal for portable applications thanks to its rubber bumpers and handle, it can be deployed on stage or used as a drop-in expander in any Qu, SQ, Avantis, AHM, or dLive Dante network.Up to 32 units can be added to a Dante-equipped AHM, Qu, SQ, Avantis or dLive system.Get the Best Out of Your Dante NetworkThe quality of your Dante audio is only as good as the quality of your Dante I/O.DT168 offers the acclaimed Allen & Heath preamps, partnered with 96kHz converters, for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DT168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in 19-inch racks.DT Preamp ControlDT Preamp Control is a Windows / macOS application that allows remote control of multiple DT168 or DT164-W Dante expanders. Control of analogue gain, phantom power and Pad is provided per socket. The socket names are also displayed and can be edited in Dante Controller.DT Preamp Control extends the applications of the DT168 and DT164-W expanders, not limited to Allen & Heath mixing systems or matrix processors. These include large distributed audio networks in venues, stadia and educational campuses, where high-channel count Dante I/O is required in multiple locations.DT168 CompatibilityUp to 32 DT168 expanders can be added to an AHM, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card, or directly to a Dante-equipped Qu mixer. The DT168 can also be used on Dante-equipped 3rd-party mixers in conjunction with the DT Preamp Control software.

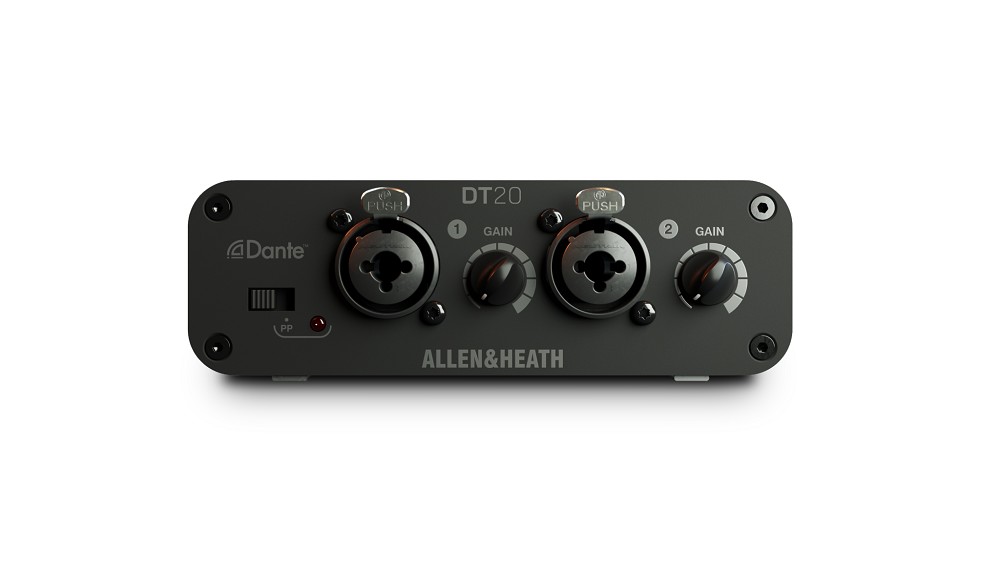

ALLEN & HEATH DT20
DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.2 Mic/Line InputsPair of combi mic/line inputs with local gain control and +48V phantom power with LED indicator.AES67 CompatibleInteroperability with other AES67 devices on the same network.DDM ReadyDante Domain Manager offers security, organization, scalability, and control for Dante networks.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Easily Add Line Inputs to a Dante NetworkIdeal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.PoE or PSUThe unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).Surface MountThanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection. The DT20-M version ships with surface mounting ears for visually unobtrusive installation.Rack Mount KitAn optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot onstage or at FOH.DT20 CompatibilityThe DT20 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.

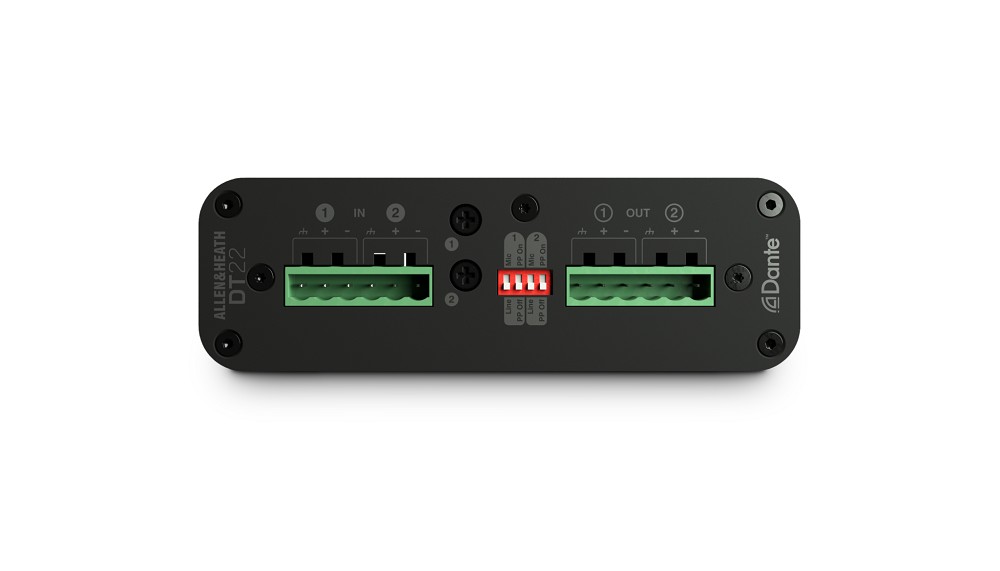

ALLEN & HEATH DT22
The compact and portable DT22 enables simple integration of Phoenix / Euroblock equipped hardware into a Dante network. Two inputs and two outputs make it suitable for a range of fixed install scenarios.2 Line Ins + OutsPair of mic/line inputs with local gain control and +48V phantom power, and two line outputs, all on Phoenix/Euroblock connectors.AES67 CompatibleInteroperability with other AES67 devices on the same network.DDM ReadyDante Domain Manager offers security, organization, scalability, and control for Dante networks.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Easily Add Phoenix / Euroblock Inputs and Outputs to a Dante NetworkDT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get analogue audio in and out of a Dante network.PoE or PSUIt can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.Surface MountDT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, or mounted under a podium for local mic/PC and speaker connection. Surface mount ears are included with the DT22.Rack Mount KitAn optional rack mount kit is available for installation of up to two DT22 units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher.DT22 CompatibilityThe DT22 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
ALLEN & HEATH DX HUB
DX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect up to 8 DX expander units.Massively Expand I/OEach of the 4 DX sockets can support up to 2 DX168/DX164-W/DX012 Expanders or 1 DX32 expander.Rack MountableOptional 19-inch rackmount kit available for fixed installations or touring.Redundant ModeA pair of DX Hubs can be used for dual-cable connection to compatible dLive hardware.Single Cable TrunkA single CAT5 run from the DX Hub to your mixer reduces cabling requirements.Your I/O HubDX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units.Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)Simplify Cable RunsDX Hub is particularly suited to Install and Commercial Audio applications and any environment where it is desirable to run a single “trunk” CAT5e cable to the DX Hub from the AHM, dLive, Avantis or SQ system.An optional rack mount kit is available for installation in a 1U 19″ rack space.DX Hub CompatibilityDX Hub can be connected to any AHM, SQ, Qu*, or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module.*96kHz Qu models only

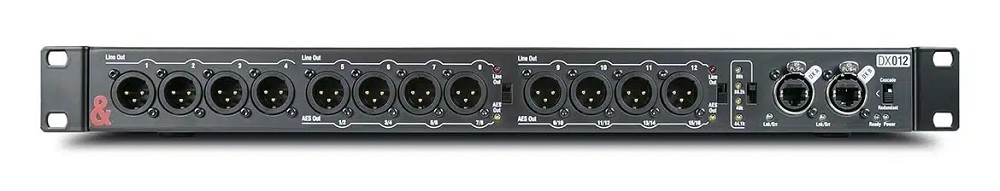

ALLEN & HEATH DX012
DX012 provides remote output expansion for Qu*, SQ, Avantis and dLive mixers, and for AHM audio matrix processors.12 XLR OutsFlexible switching options between balanced, relay protected analogue and stereo AES digital on outputs 5-12.AES CompatibleAES outputs globally switchable between 44.1kHz,48kHz, 88.2kHz or 96kHz.Redundant & Cascade ModesRedundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Need to get more out of your system?Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.Put It Where You Need ItThe DX012 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 1U 19″ space. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.Flexible Output OptionsThe DX012 provides 12 XLR outputs, with three configuration options:12 analogue line outputs8 analogue line outputs + 4 stereo AES outputs4 analogue line outputs + 8 stereo AES outputs*96kHz Qu models only

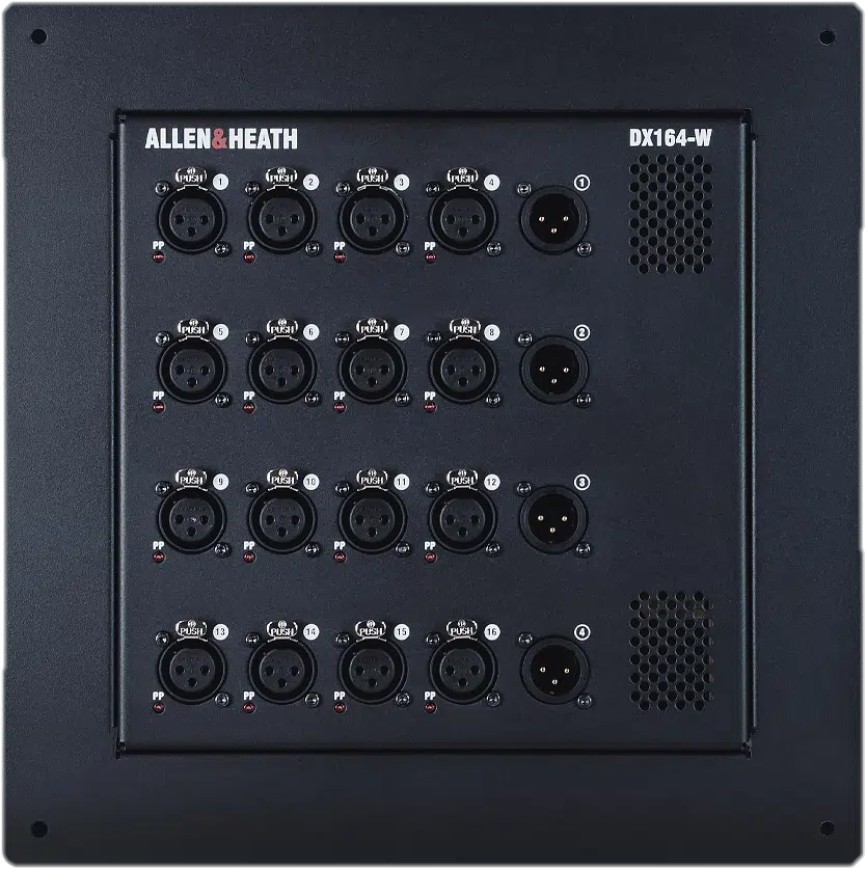

ALLEN & HEATH DX164-W
The DX164-W is a wall mountable expander that adds remote I/O to a dLive, Avantis, SQ and Qu* mixers, or to AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.4 Line OutsBalanced, relay protected line outputs on XLR.Redundant and Cascade ModesRedundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Wall or Floor MountThe reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.Put It Where You Need ItThe DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.Flexible Power OptionsThe IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.*96kHz Qu models only

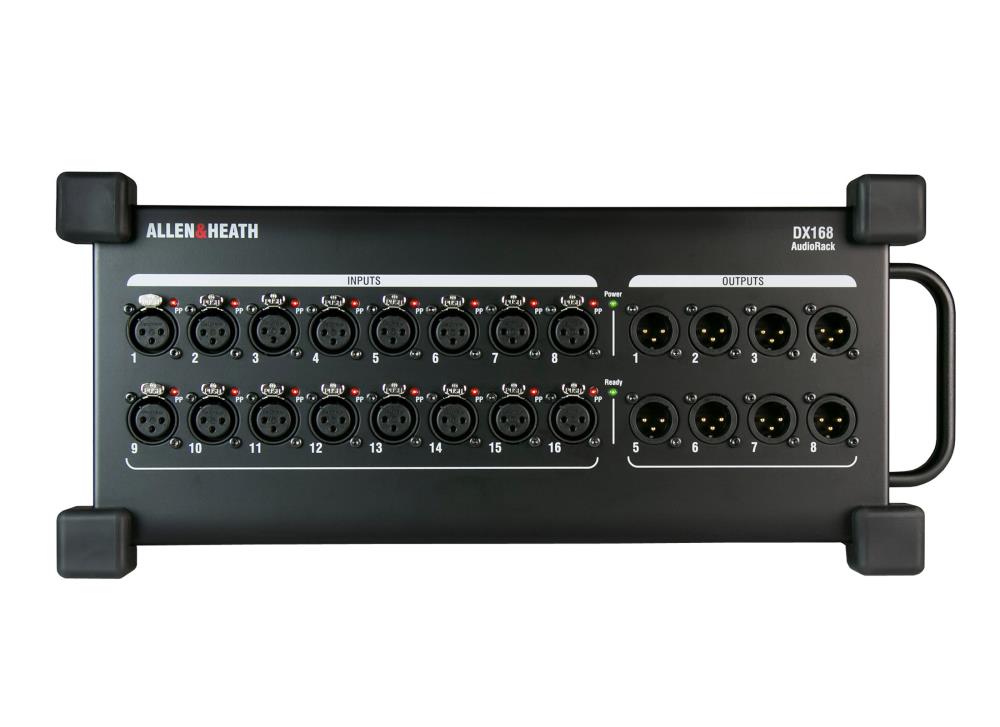

ALLEN & HEATH DX168
The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis, SQ, or Qu* system, or to AHM audio matrix processors.16 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.8 Line OutsBalanced, relay protected line outputs on XLR.On Stage or In The RackRugged stagebox format with optional rackmount kit available.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Ready for the StageThe Expander’s rugged design, with hard-wearing rubber bumpers, allows it to be placed directly on the stage floor during performances. Weighing in at just 4.8kg and featuring a sturdy carry handle, the DX168 offers the convenience and portability needed in rental, education, houses of worship and many other environments. An optional 4U rack mounting kit is available which allows installation in 19-inch racks.Put It Where You Need ItThe DX168 can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.*96kHz Qu models only

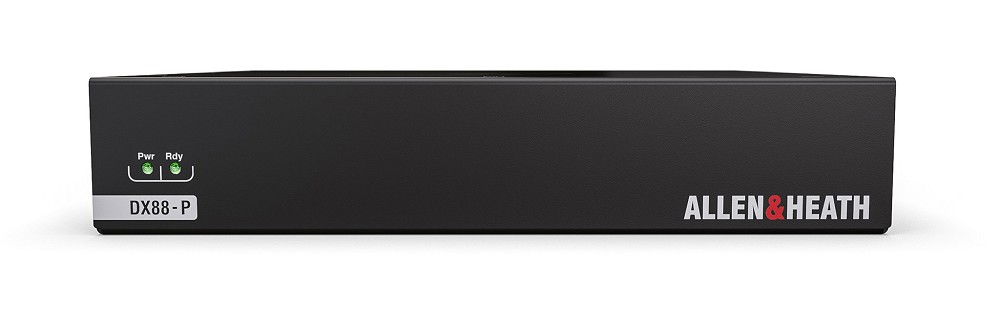

ALLEN & HEATH DX88-P
The DX88 provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM Audio Matrix Processors.8 Ins + OutsEight mic/line inputs with +60dB of gain, phantom power and -20dB pad, and eight line outputs, all on Phoenix/Euroblock connectors.RackmountableA rackmount kit is available for installing two DX88 expanders together. DX88 can also be installed alongside a GPIO or DX Hub with an additional kit.Cascade ModeCascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Easily Add Phoenix / Euroblock Inputs and Outputs via a DX ConnectionDX88 is a 96kHz DX expander enabling convenient placement of 8 mic/line inputs and 8 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get additional analogue audio in and out of a fixed install.Put It Where You Need ItThe DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning.The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.Rack Mount KitAn optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher.The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.
ALLEN & HEATH GX4816
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for Qu*, SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.48 Mic Preamps+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.16 Line OutsBalanced, relay protected line outputs on XLR.DX PortsA pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)Plug-and-PlayNo configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.Massively Expand Your System I/O!Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.Put It Where You Need ItThe GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.*96kHz Qu models only
