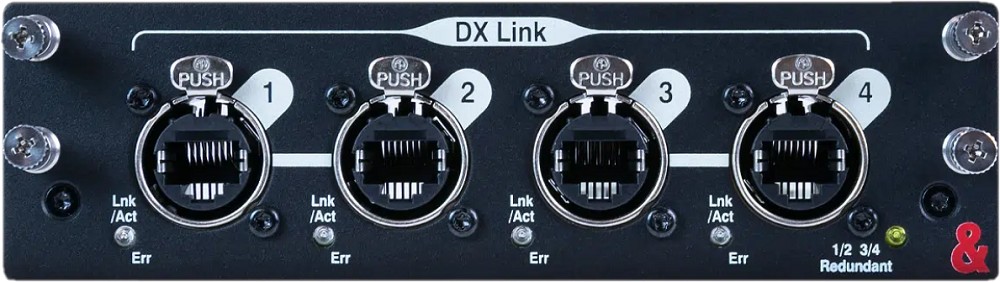

ALLEN & HEATH DX Link
Massively expand your dLive or Avantis system I/O with DX Link.Easy I/O ExpansionAdd up to 128 remote inputs and 64 remote outputs per DX Link module.Plug-and-Play OperationNo configuration required, just install the card, connect your choice of DX Expander(s) and patch your audio.Parallel ModeIn Parallel mode, 1 DX32 or up to 2 DX168/DX012/DX164-W expanders can be connected to each DX Link port.Redundant ModeIn Redundant mode, 1 DX expander of any kind can be connected to each pair of DX Link ports using 2 cables for redundant connection.Add The I/O You NeedMultiple DX Link cards can be fitted to an Avantis or dLive system to scale up system I/O to meet your requirements.The card provides 4 DX Link ports, each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units in either Parallel or Redundant mode.DX ExpandersDX Link supports our entire range of DX remote expanders.

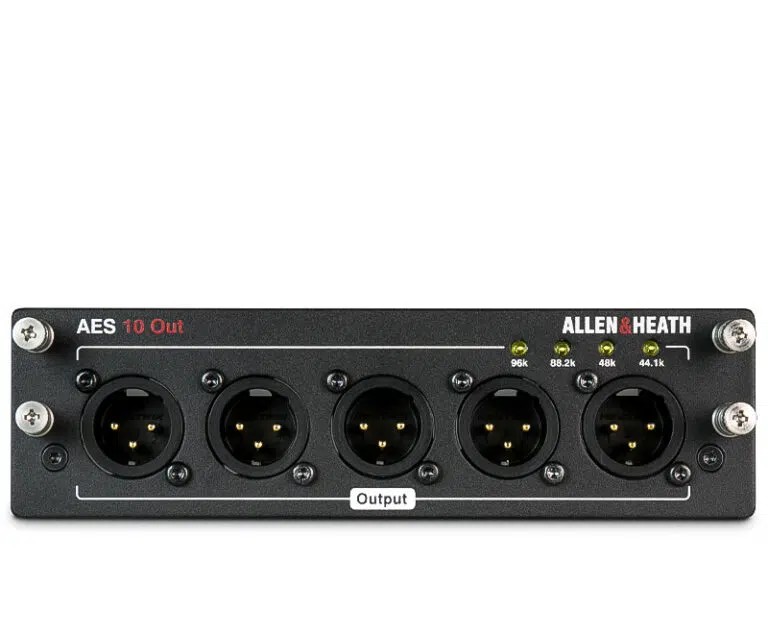

ALLEN & HEATH AES3 10out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.10outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)

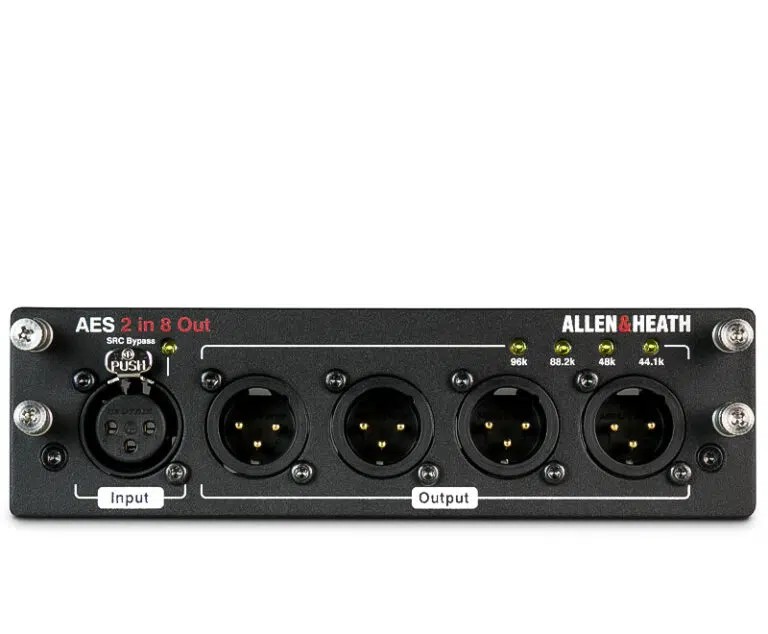

ALLEN & HEATH AES3 2in / 8out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.2in / 8outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input

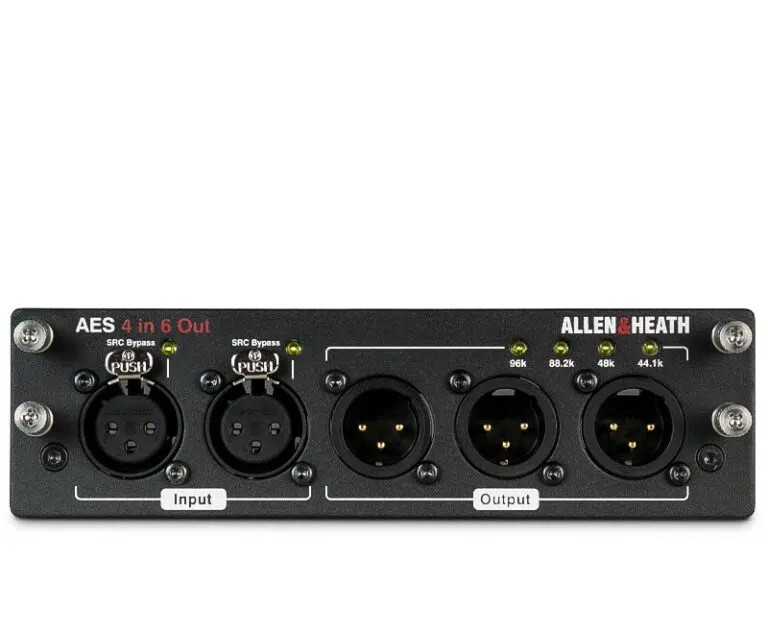

ALLEN & HEATH AES3 4in / 6out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.4in / 6outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES inpu

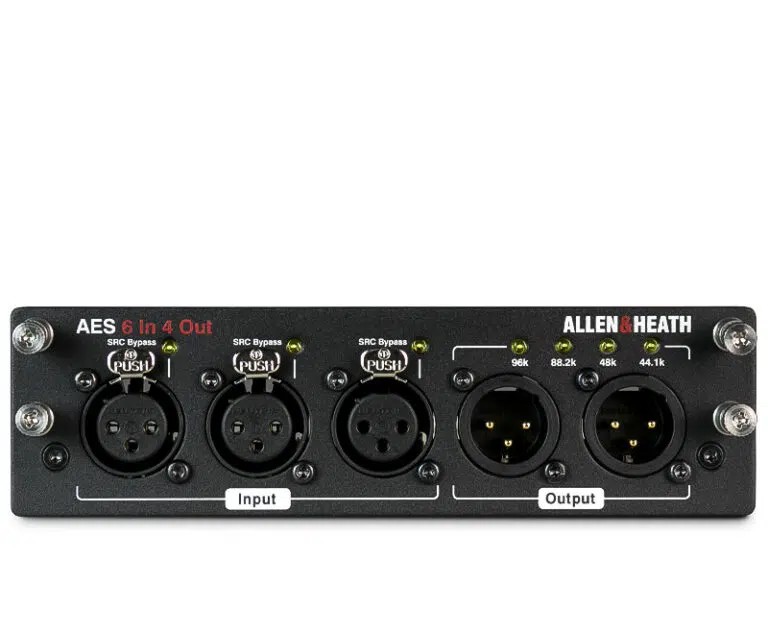

ALLEN & HEATH AES3 6in / 4out
AES3 I/O cards provide a convenient solution for digital patching from a dLive or Avantis to system PA, monitor amps and speaker controllers, or for console combining.6in / 4outSwitchable sample rate(96kHz, 88.2kHz, 48kHz and 44.1kHz)Input SRC 32kHz to 192kHzOption to sync from first AES input

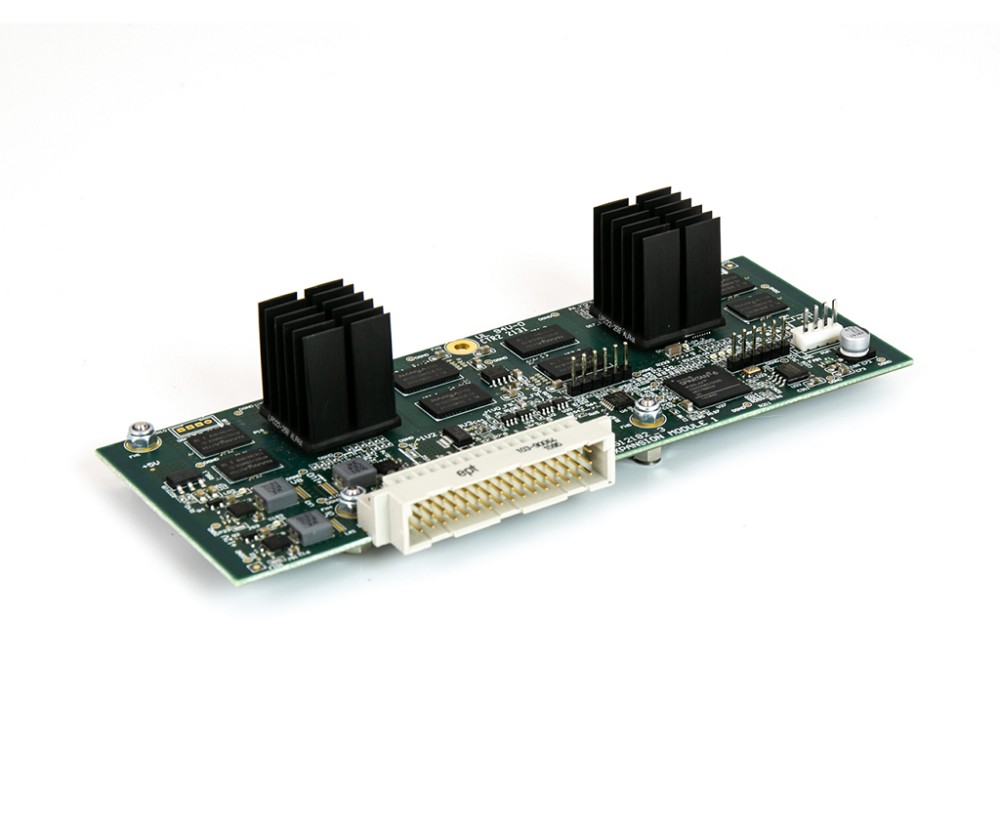

ALLEN & HEATH AHM-32 Processing Expansion Module
The Processing Expansion Module provides up to 12 channels of acoustic echo cancellation (AEC) or 8 instances of feedback suppression (FBS) for AHM-32. FeaturesUp to 12 Channels of AEC150ms FIR Adaptive FilterFar-End AGC (Automatic Gain Control)Residual Echo NLP (non-linear processing)Background Noise ReductionNear-End gatingSpeech-Shaped Comfort NoiseUp to 8 instances of FBS25 configurable live or fixed bandsBias adjustmentsMono or stereo Zone supportReset All Bands available for controllersAECAssigned via Inserts on Input Channels. One AEC reference is available per setup. Multi-mic scenarios supported for up to 12 microphones in a single setup.With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.Allen & Heath’s Acoustic Echo Cancellation intelligently detects the “echo” in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.The result? A clearer, more comfortable listening experience for everyone in the meeting!FBSAssigned via Inserts on Zone Channels. Up to 25 bands of live or fixed feedback suppression. Mono or stereo Zones supported.Not every voicelift or sound reinforcement scenario is perfect. Not every person knows the best mic handling technique.Feedback suppression allows us to diminish annoying or harmful frequencies that can damage sound equipment or distract audience members.With up to 8 instances of FBS each with up to 25 bands of feedback detection and suppression, even the most troublesome systems can be tamed.User InterfaceAll the parameters you need, for any mode. AHM’s System Manager provides easy and accessible control over FBS and AEC.

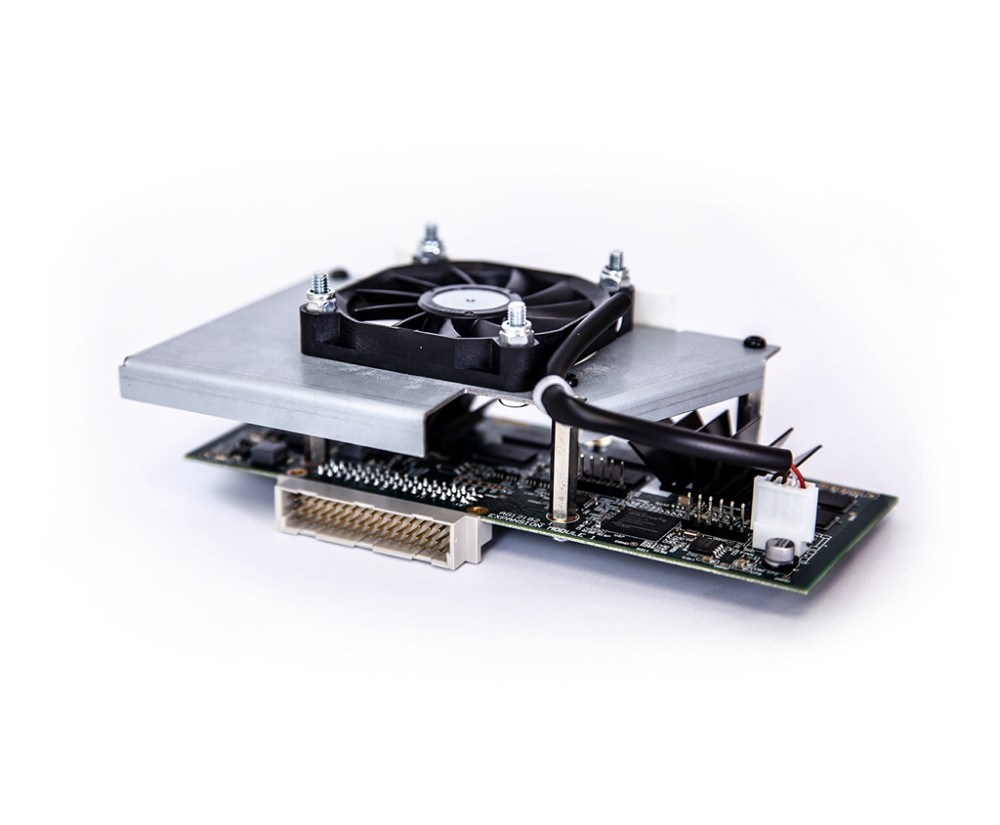

ALLEN & HEATH AHM-64 Processing Expansion Module
The Processing Expansion Module provides up to 12 channels of acoustic echo cancellation (AEC) or 8 instances of feedback suppression (FBS) for AHM-64. FeaturesUp to 12 Channels of AEC150ms FIR Adaptive FilterFar-End AGC (Automatic Gain Control)Residual Echo NLP (non-linear processing)Background Noise ReductionNear-End gatingSpeech-Shaped Comfort NoiseUp to 8 instances of FBS25 configurable live or fixed bandsBias adjustmentsMono or stereo Zone supportReset All Bands available for controllers AECAssigned via Inserts on Input Channels. One AEC reference is available per setup. Multi-mic scenarios supported for up to 12 microphones in a single setup.With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.Allen & Heath’s Acoustic Echo Cancellation intelligently detects the “echo” in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.The result? A clearer, more comfortable listening experience for everyone in the meeting!FBSAssigned via Inserts on Zone Channels. Up to 25 bands of live or fixed feedback suppression. Mono or stereo Zones supported.Not every voicelift or sound reinforcement scenario is perfect. Not every person knows the best mic handling technique.Feedback suppression allows us to diminish annoying or harmful frequencies that can damage sound equipment or distract audience members.With up to 8 instances of FBS each with up to 25 bands of feedback detection and suppression, even the most troublesome systems can be tamed.User InterfaceAll the parameters you need, for any mode. AHM’s System Manager provides easy and accessible control over FBS and AEC.

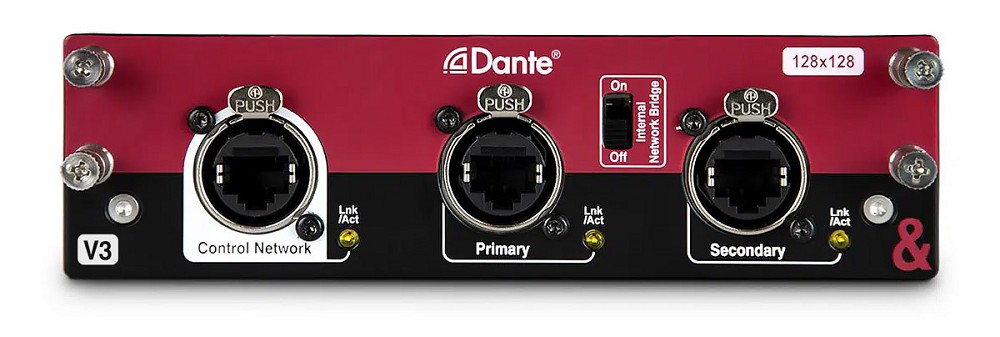

ALLEN & HEATH Dante 128x128
Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Dante 128×128 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.High-Channel CountProvides 128×128 channels of Dante audio for recording, distribution and splits.AES67 CompatibleSupport for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.DDM ReadyCompatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Add 128 Channels of Dante Audio to Your dLive or AvantisWith 128 channels of bidirectional audio at 96kHz, the Dante 128×128 card is suitable for high channel digital splits between systems, for instance, FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.DT ExpandersDante 128×128 supports our entire range of DT remote expanders.
ALLEN & HEATH Dante 64x64
Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Dante 64×64 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.High-Channel CountProvides 64×64 channels of Dante audio for recording, distribution and splits.AES67 CompatibleSupport for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.DDM ReadyCompatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.96kHz Dante SupportChoose between standard 48kHz operation and high-fidelity 96kHz operation.Add 64 Channels of Dante Audio to Your dLive or AvantisWith 64 channels of bidirectional audio at 96kHz, the Dante 64×64 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.DT ExpandersDante 64×64 supports our entire range of DT remote expanders.

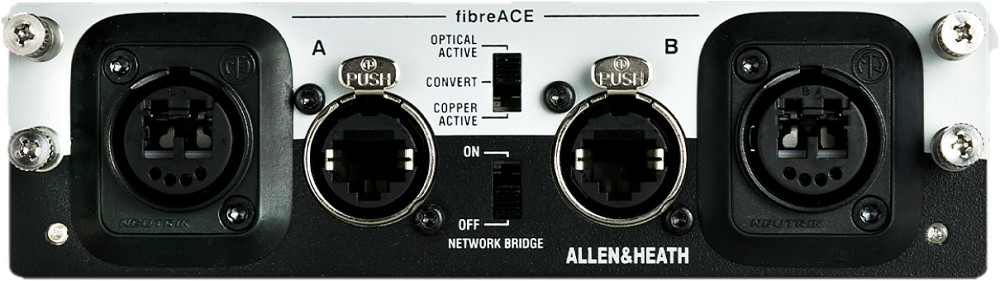

ALLEN & HEATH fibreACE
fibreACE enables a 128x128ch 96kHz point-to-point link between dLive or Avantis systems over CAT cable or multimode fibre optic. It can also be used as a converter, to replace the dLive MixRack to Surface link with fibre optic.Copper ModeCopper mode supports standard CAT5e links up to 100m.Fibre ModeFibre mode supports opticalCON Duo multimode cables up to 500m.Convert ModeAllows a fibre link up to 500m between a dLive Surface and dLive MixRack.Redundant OperationThe fibreACE card supports dual-cable redundant connections in both copper and fibre modes.fibreACE is Allen & Heath’s proprietary protocol for transporting Audio and Control over Ethernet.It allows very low latency and cable redundancy without any audio dropout. It can also tunnel the dLive / Avantis control data over the same connection, for example to enable control of two systems via a single laptop.The fibreACE card offers an ideal solution for digital splits and audio distribution in large scale events and installations, with cable runs up to 500m and industry standard connectors.fibreACE is a truly plug ‘n play protocol, so no computer is required for the setup of fibreACE connections. Simply plug the cable between any two dLive / Avantis systems and set the patch and clock settings directly on the mixer.

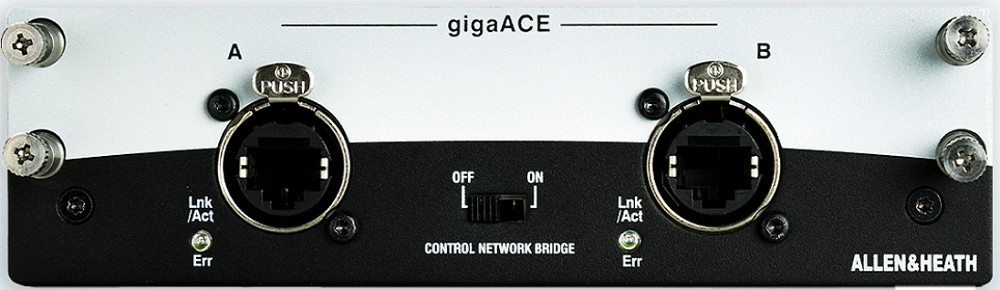

ALLEN & HEATH gigaACE
gigaACE enables a low latency 128x128ch 96kHz point-to-point link between dLive or Avantis systems.Plug-and-Play SplitsNo configuration required, just install the card, connect your CAT5e cable and patch your channels.Ultra Low LatencyJust 5 samples (52 us) transport latency between systems equipped with gigaACE.Connect GX4816 to dLiveThe gigaACE card opens up the use of the GX4816 remote expander to dLive systems.Redundant OperationThe gigaACE card supports dual-cable redundant connections.gigaACE is Allen & Heath’s proprietary protocol for transporting Audio and Control over Ethernet.The gigaACE card offers a cost-effective and simple solution for digital split applications. It allows very low latency (52 us) and cable redundancy without any audio dropout. gigaACE can also tunnel the dLive/Avantis control data over the same connection, for example to enable control of either of the two systems via a single laptop.gigaACE is a truly plug ‘n play protocol, so no computer is required for the setup of gigaACE connections. Simply plug the cable between any two dLive/Avantis systems and set the patch and clock settings directly on the mixer.
ALLEN & HEATH M-Dante für ME-U
The M-DANTE card supports up to 64 channel of 48kHz audio over Dante, enabling the connection of ME-U to digital mixers and audio interfaces that support Dante. The M-DANTE card is fitted to the ME-U’s option card slot.

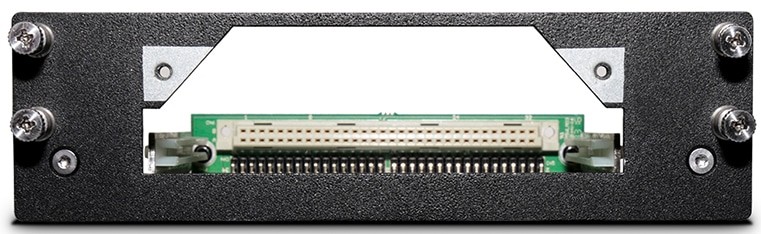

ALLEN & HEATH M-DL-ADAPT
Use 48kHz iLive and GLD Audio Networking cards in your dLive or Avantis system.The M-DL-ADAPT ‘letter-box’ interface fits in any I/O Port on on an Avantis / dLive and adds compatibility with most iLive / GLD audio networking cards including M-Dante, M-Waves, M-ES-V2, M-ACE and M-MADI. It provides a 64×64 channel interface running at 48kHz, thus maintaining compatibility with Allen & Heath iLive and GLD mixing systems as well as most third party consoles running off Dante or MADI. Sample Rate Conversion is seamlessly performed in the interface module.
ALLEN & HEATH M-MADI für ME-U
The M-MADI card supports up to 64 channel of 48kHz audio over MADI, enabling the connection of ME-U to digital mixers and audio interfaces that support MADI. The M-MADI card is fitted to the ME-U’s option card slot.
ALLEN & HEATH SQ Dante 32x32
SQ Dante 32×32 provides any SQ / SQ+ mixer or AHM processor with a full 32×32 channel, 96kHz or 48kHz interface to a Dante network.Expand Your System With DanteAn SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of high-resolution 96kHz audio.The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.Add Dante to AHM Matrix ProcessorsThe SQ Dante 32×32 card is the perfect partner to the AHM-32 and AHM-16 Audio Matrix Processors.As well as making it easy to integrate AHM processors into existing Dante networks, it also enables use of our Dante enabled expanders, including the compact and portable DT22, DT02 and DT20, the wallmountable DT164-W, and the DT168 stagebox.
ALLEN & HEATH SQ Dante 64x64
SQ Dante provides any SQ / SQ+ mixer or AHM processor with a full 64×64 channel, 96kHz or 48kHz interface to a Dante network.Expand Your System With DanteAn SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of high-resolution 96kHz audio.The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.Add Dante to AHM Matrix ProcessorsSQ Dante V2& V3 share all the features and specifications of the V1 module, with no differences for SQ users*, but the V2 & V3 modules can also be fitted and used in an AHM matrix processor.*SQ firmware V1.5 or higher required.
ALLEN & HEATH SQ Waves
SQ Waves provides any SQ / SQ+ or AHM with a 64×64, 96kHz or 48kHz interface to a Waves SoundGrid network using the I/O Port.Recording, Effects and MoreEngineers or installers can now fit the Waves card to any SQ or AHM for Waves plugin processing, multitrack recording (at 96kHz or 48kHz), virtual soundcheck and audio distribution applications.

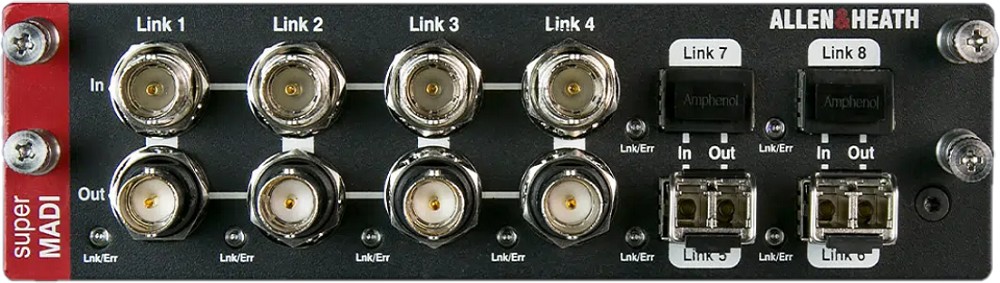

ALLEN & HEATH superMADI
Adds 128 channels of 96kHz MADI audio, over coaxial and optical, to a dLive or Avantis system.MADI over CoaxFour pairs of BNC connectors support standard 75ohm coaxial cables with switchable 48/96kHz operation per pair.MADI over FibreFor longer cable runs, four SFP slots are provided which can be populated with your choice of SFP transceivers.Redundant OperationEach pair of BNC and SFP can be switched into redundant mode for enhanced security.48/96kHz OperationThe superMADI card offers switchable 48kHz and 96kHz sample rates per link with a choice of Smux or HighSpeed 96kHz modes.superMADI. Super Flexible.Designed to help integrate dLive and Avantis into a wide range of broadcast, live interface and recording scenarios, the superMADI interface card has numerous connectivity possibilities, including 8 BNC connectors and 4 SFP slots for fibre optic transceivers (not included).Both coaxial and optical formats offer up to 128 I/O at 96kHz each, and redundancy and sample rate are switchable per link pair, with a choice of Smux or HighSpeed 96kHz mode.The superMADI card can also be used by engineers and rental companies to link to any MADI-enabled third party console, allowing high-channel count digital splits, for example, between FOH and Monitors.

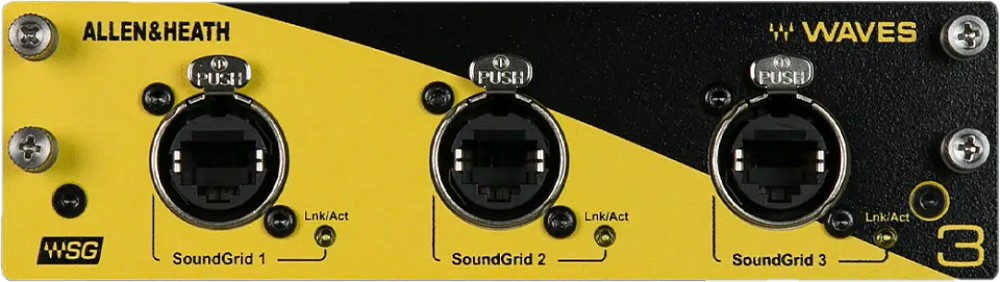

ALLEN & HEATH Waves V3
Add 128 channels of Waves SoundGrid connectivity to a dLive or Avantis system.Waves ProcessingUse your favourite Waves plugins with a dLive or Avantis system. The Waves plugins can run on your computer or a dedicated Waves server,Multitrack RecordingRecord up to 128 tracks of 96kHz audio into your computer via a single ethernet cable.3 SoundGrid PortsThe three sockets on the Waves V3 card can all be connected to different devices for more complex setups.48/96kHz OperationTo interface with your SoundGrid network, Waves V3 supports both 48kHz and 96kHz sample rates.
ALLEN&HEATH SQ SLink
SQ SLink bietet die Möglichkeit, jedem SQ- oder AHM-Mixer einen intelligenten SLink-Port hinzuzufügen.Für SQBei SQ läuft die Optionskarte unabhängig vom integrierten SLink-Port, sodass zwei verschiedene Allen & Heath-Protokolle gleichzeitig in einem System verwendet werden können. Mit zwei SLink-Ports ist es jetzt möglich, einen SQ mit jedem ME-Personal-Monitoring-System, DX-, GX- oder dSnake-Expander zu kombinieren.Jede mit einer SLink-Karte ausgestattete SQ-Konsole kann auch direkt an ein Qu-, SQ-, Avantis- oder dLive-System angeschlossen werden, wodurch FOH-/Monitor-Splits, Broadcast-Feeds und mehr ermöglicht werden.Für AHMDie SQ SLink-Karte bietet AHM-16- und AHM-32-Prozessoren Zugriff auf die Everything I/O-Reihe von Audio-Expandern und fügt AHM-64 weitere I/O-Funktionen hinzu.Auf AHM-64 läuft die Optionskarte unabhängig vom integrierten SLink-Port, sodass zwei verschiedene Allen & Heath-Protokolle gleichzeitig in einem System verwendet werden können.
